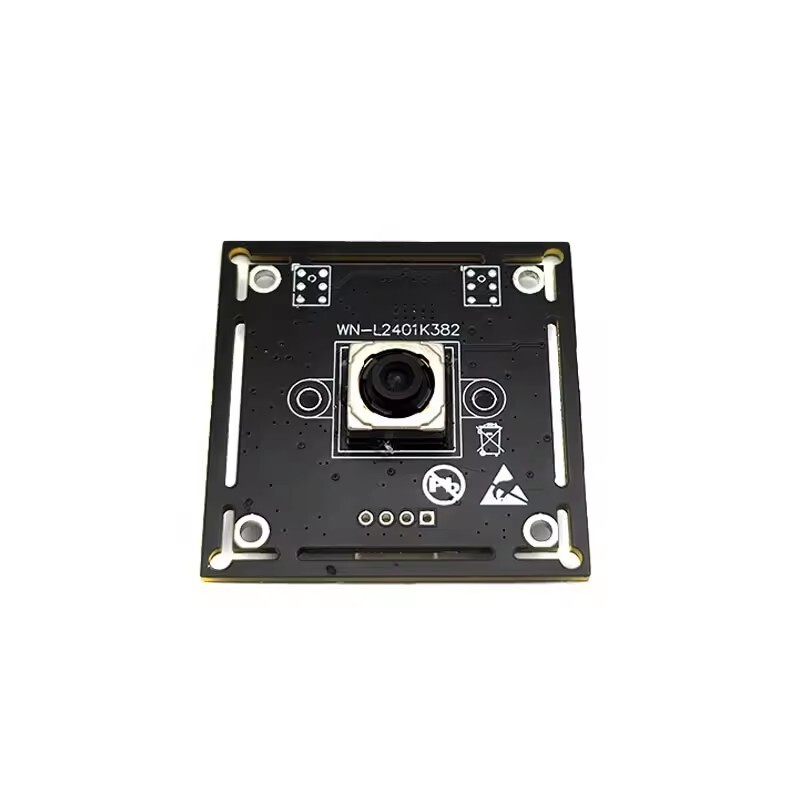

12MP USB Camera Modulethis 12MP USB camera module adopts the 1/2.55-inch IMX362 CMOS image sensor with maximum resolution of 4000×3000 at 15fps frame rate. Mini size, 81.6° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.Main Parameters
Product Name
12MP USB2.0 Camera Module
Product Code
WN-L2401K382
Module Size
38*38mm
Image Sensor
1/2.55-inch IMX362 CMOS Sensor
Max. Resolution
4000H*3000V
Pixel Size
1.4*1.4μm
Output Format
MJPEG, YUY2
Field of View
81.6°
Focus Mode
Autofocus
Shutter Mode
Electronic Rolling Shutter
Audio Input
No
Output & Power Supply
High Speed USB2.0
Interface
5P 1.25 (MOLEX 532610571)
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
4000*3000
15FPS
3840*2160
30FPS
2952*1944
30FPS
2048*1536
30FPS
1600*1200
30FPS
1920*1080
30FPS
1280*720
30FPS
640*480
30FPS
YUY2
1600*1200
5FPS
1920*1080
5FPS
1280*720
10FPS
640*480
30FPS
Working Conditions
Working Voltage
DC 5V
Working Current
160mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
