WAVLINK · THUNDERBOLT™ 4 · 13-IN-1 13-in-1 Thunderbolt 4
Powerhouse 8K visuals · Triple 4K workflow · 40Gbps transfers · 96W laptop charging · 2.5G Ethernet
Turn a laptop into a full workstation with a single Thunderbolt 4 cable — no dongle clutter. 40Gbps THUNDERBOLT 48K + TRIPLE 4K96W PD · 160W ADAPTER40GbpsTBT 4 BANDWIDTH8K@60HzSINGLE DISPLAY96WLAPTOP CHARGING2.5GETHERNETThunderbolt™ 4 Triple Display Docking Station Transform your laptop into a workstation with 1 × Thunderbolt 4 downstream (40Gbps / 8K / 15W), 2 × HDMI 8K ports, 4 × USB-A 3.2 ports, 10Gbps USB-C PD (30W), 2.5G Ethernet, SD/TF card readers (312MB/s) and an audio jack. No dongle clutter — perfect for creators, professionals and multi-device users.
🌟 Note: Using two HDMI ports for multiple displays on Mac will show mirrored content.📋 Full SpecificationsModel WL-UTD45 — every detail at a glanceItemSpecificationTotal Ports13-in-1 Thunderbolt™ 4 Docking StationDisplay Outputs 2 × 8K HDMI
1 × Thunderbolt 4 Downstream (40Gbps · 8K · 15W) Upstream Host1 × Thunderbolt 4 Host (40Gbps · 96W PD)USB Ports 1 × USB-C (10Gbps · PD 30W)
1 × USB-A 10Gbps (front)
1 × USB-A 10Gbps (rear)
2 × USB-A 5Gbps Card ReadersSD / TF Card Slots — up to 312MB/sAudio1 × 4-Pole Phone JackEthernet1 × RJ45 (2500Mbps)Power Input1 × DC IN (20V/8A · 160W) — adapter includedHousing MaterialABS + Aluminum AlloyUnit Size217.7 × 83.1 × 31.1 mm / 8.6 × 3.3 × 1.2 in (W × D × H)Unit Weight545g / 19.2ozCable Lengths Thunderbolt 4 Cable: 80cm / 31.5in
Power Adapter (plug end): 150cm / 59in
Power Adapter (round port end): 120cm / 47in Compatible Systems • Thunderbolt 4 PC running Windows 10 / 11
• Thunderbolt 3/4 Mac running Mac OS 11 or later

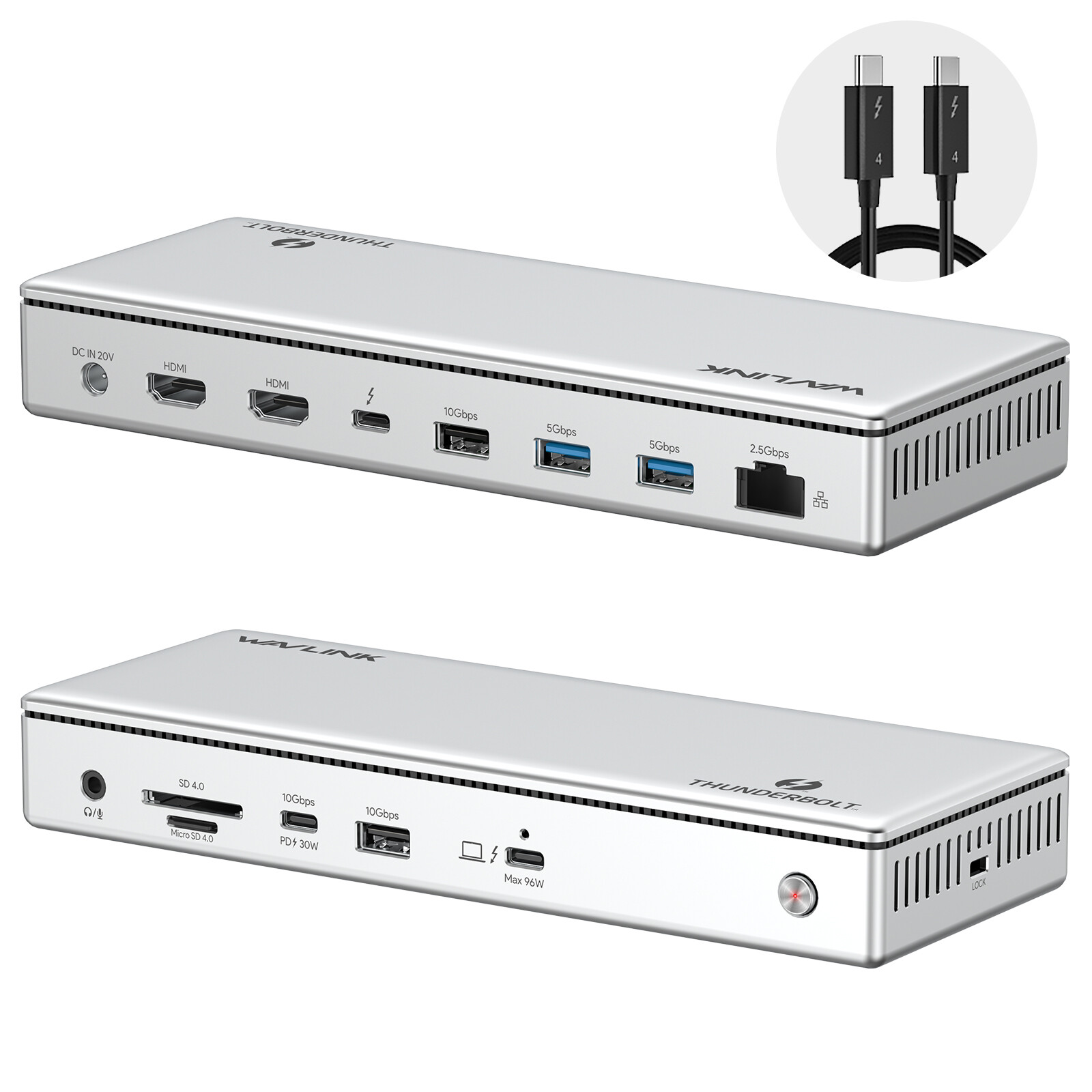

• Other USB4 and MFDP hosts (full-functional USB-C supporting DisplayPort + USB 3.1 + Power Delivery) Best ForCreators, professionals and multi-device users who need 8K or triple 4K, 40Gbps transfers and 96W charging on a single Thunderbolt 4 cable — with 2.5G Ethernet and a full port bank to match Plug and play for Thunderbolt 4 systems. Performance may be limited on non-Thunderbolt 4 hosts. 🔌 13-in-1 Port LayoutFront panel for daily access · Rear panel for permanent connectionsFRONT PANEL011 × 4-Pole Phone Jack
02SD / TF Card Slots (312MB/s)
031 × USB-C (10Gbps · PD 30W)
041 × USB-A 10Gbps
051 × Thunderbolt 4 Host (40Gbps · 96W) REAR PANEL061 × DC IN (20V/8A · 160W)
072 × 8K HDMI
081 × Thunderbolt 4 Downstream (8K · 40Gbps · 15W)
091 × USB-A 10Gbps
102 × USB-A 5Gbps
111 × RJ45 (2500Mbps) Offline charging: the downstream Thunderbolt 4 port and the USB-C PD port support offline charging — devices can be charged when disconnected from the computer or when the computer is powered off. 40Gbps · 8K · 96W · 2.5GOne Cable. A Full Workstation.🔌 13-in-1 Thunderbolt 4 PowerhouseTransform your laptop into a workstation with 1 × Thunderbolt 4 downstream (40Gbps / 8K / 15W), 2 × HDMI 8K ports, 4 × USB-A 3.2 ports, 10Gbps USB-C PD (30W), 2.5G Ethernet, SD/TF card readers (312MB/s) and an audio jack. No dongle clutter — perfect for creators, professionals and multi-device users.
🌟 Note: Using two HDMI ports for multiple displays on Mac will show mirrored content.🖥️ 8K Visuals & Triple 4K WorkflowDominate visual tasks with crystal-clear 8K resolution or boost productivity with multiple 4K displays (dual / triple display). Seamlessly toggle between extended and mirrored modes.
Please note: M1/M2 based Macs only support single monitor; for M3 based Macs, please close the host screen to support dual display.🔋 40Gbps Transfer & Sufficient 96W ChargingExperience rapid 40Gbps data transfers with Thunderbolt 4. The upstream port delivers up to 96W power using a robust 160W adapter for efficient laptop charging. For multiple device charging, the downstream Thunderbolt 4 and USB-C PD ports offer 15W and PD 30W respectively. Say goodbye to any low battery situation.🚀 2.5G Ethernet & Super-Speed TransferWhether you're streaming, gaming or working on bandwidth-intensive tasks, the 2.5G wired connection ensures a seamless online experience. Enjoy quick file transfers with USB-A / USB-C 10Gbps ports, perfect for connecting external hard drives and USB devices. The SD/TF card slots offer transfer speeds up to 312MB/s — ideal for photographers, designers and filmmakers to store their work effortlessly.🌐 Wide CompatibilityPlug and play for Thunderbolt 4 PC running Windows 10/11, Thunderbolt 3/4 Mac running Mac OS 11 or later, and other USB4 and MFDP hosts (full-functional USB-C, supports DisplayPort + USB 3.1 + Power Delivery). Just enjoy seamless connectivity and enhanced functionality on your PC or Mac.✅ FEATURES AT A GLANCE • 1 × Thunderbolt 4 downstream — 40Gbps · 8K · 15W
• 2 × 8K HDMI · triple 4K workflow
• 4 × USB-A 3.2 (2 × 10Gbps + 2 × 5Gbps)
• 1 × USB-C 10Gbps with PD 30W
• 2.5G Ethernet · SD/TF readers at 312MB/s
• 96W upstream laptop charging via 160W adapter
• 4-pole phone jack · ABS + aluminum alloy body 🖥️ Multiple Display Resolution (Max.)Depends on your host system — Mac vs Windows Thunderbolt 4 vs Windows USB-C MFDP🍎 MAC OS · TBT3 / TBT4Single DisplayTBT4 / HDMI1 / HDMI2 — 4K@60HzDual DisplayTBT4 + HDMI1/2 — 4K@60Hz (ABC)
HDMI1 + HDMI2 — 4K@60Hz (ACC)Triple DisplayTBT4 + HDMI1 + HDMI2 — 4K@60Hz (ABCC)🪟 WINDOWS TBT4 PC · DP1.4 WITH DSCSingle DisplayTBT4 / HDMI1 / HDMI2 — 8K@60HzDual DisplayTBT4 + HDMI1/2 — 4K@60Hz
HDMI1 + HDMI2 — 4K@60HzTriple DisplayTBT4 + HDMI1 + HDMI2 — 4K@60Hz🪟 WINDOWS USB-C MFDP PC · DP1.4 WITH DSCSingle DisplayTBT4 / HDMI1 / HDMI2 — 8K@30HzDual DisplayTBT4 + HDMI1/2 — 4K@60Hz
HDMI1 + HDMI2 — 4K@60HzTriple DisplayTBT4 + HDMI1 + HDMI2 — 4K@30Hz💻 Compatibility Devices (Partial List)Please check the compatibility list below before purchasing🍎 APPLE iMac (Early 2017) · MacBook Pro (Late 2016) · MacBook Pro (Mid 2017) · MacBook Pro (Mid 2018) · MacBook Pro (2019) · MacBook Pro 16-inch 2019 · MacBook Air (Retina, 13-inch, 2018) · MacBook Air (Retina, 13-inch, 2019) · MacBook Pro (14-inch, 2023) · MacBook Pro (16-inch, 2023) · MacBook Pro (14-inch, 2021) · MacBook Pro (16-inch, 2021) · Mac mini with M2 Pro 2023 · Mac Studio (M2 Max or M2 Ultra, 2023) · Mac Studio (M1 Max or M1 Ultra, 2022) · Mac Pro (M2 Ultra, 2023) 📱 SAMSUNG Samsung Galaxy Book 3 Pro 🔷 HP HP Spectre x360 13.5 (2023) · HP EliteBook Folio G1 (Model V1C43EA) · HP Spectre x360 Convertible 13-w000 (SKU W9A95AV) · HP Spectre x360 - 13-ac003la · HP Spectre x360 - 15-ch000 · HP Elite X2 1012 G1 🟢 RAZER Razer Blade 16 (2023) 💠 DELL Dell XPS 17 (2023) · Dell XPS 13 7390 2-in-1 (Ice Lake) · Dell XPS 12 9250 · Dell XPS 13 9350 · Dell XPS 13 9360 · Dell XPS 13 9370 · Dell XPS 13 9380 · Dell XPS 15 9550 (Intel + Nvidia GPU) · Dell XPS 15 9550 (Intel GPU) · Dell XPS 15 9560 (Intel + Nvidia GPU) · Dell XPS 15 9570 · Dell XPS 17 9700 🪟 MICROSOFT Surface Pro 9 (Wi-Fi) 🟩 ACER Acer Aspire 5 2023 🔵 ASUS Asus ProArt Studiobook Pro 16 OLED (W7604) · Asus ProArt Studiobook 16 3D OLED (H7604) · Asus ProArt Studiobook 16 OLED (H7604) · Asus Zenbook Pro 16X OLED (UX7602ZM, UX7602BZ, UX7602VI) · Asus Zenbook Pro 14 Duo OLED (UX8402ZA, UX8402ZE, UX8402VV, UX8402VU) · Asus Zenbook Pro 14 OLED (UX6404VI, UX6404VV) · Asus Zenbook S 13 OLED (UX5304VA) · Asus Zenbook 14X OLED (UX3404VC, UX3404VA) · Asus Zenbook 14 OLED (UX3402, UX3402VA) · Asus Zenbook 14 (UX3402, UX3402VA) · Asus Zenbook 14 Flip OLED (UP3404VA) · Asus Vivobook Pro 16X 3D OLED (K6604JI) · Asus Vivobook Pro 16X OLED (K6604JI, K6604JV) · Asus Vivobook Pro 15 OLED (K6502, K6502ZE, K6502ZC, K6502HE) · Asus Vivobook Pro 16 OLED (K6602ZC, K6602ZE, K6602HC, K6602VV) · Asus Vivobook S 14 OLED (K54O4VA) · Asus Vivobook S 15 OLED BAPE Edition (K5504) · Asus Vivobook S 15 OLED (K5504VA, K5504VN) · Asus Vivobook S 14 Flip OLED (TP3402ZA) · Asus Vivobook S 14 Flip (TP3402ZA) · Asus Vivobook 16X OLED (K3605VV, K3605VU) · Asus ProArt Studiobook Pro 16 OLED (W7600Z3A, 12th Gen Intel) · Asus ProArt Studiobook Pro 16 (W7600Z3A, 12th Gen Intel) · Asus ProArt Studiobook 16 OLED (H7600ZM, H7600ZX, H7600ZW OLED, 12th Gen Intel) ⚙️ INTEL NUC Intel NUC8i7HVK (Hades Canyon) · Intel NUC8i7HNK (Hades Canyon) · Intel NUC9VXQNX (Ghost Canyon) · Intel NUC9V7QNX (Ghost Canyon) · Intel NUC9i9QNX (Ghost Canyon) · Intel NUC9i7QNX (Ghost Canyon) · Intel NUC9i5QNX (Ghost Canyon) 🟥 LENOVO Lenovo ThinkPad P50 · Lenovo ThinkPad P51 · Lenovo ThinkPad P70 · Lenovo Yoga C930 · Lenovo X1 Carbon 7th Gen Note: If your device is not on the list, please let us know and we will be glad to help you check with it. 📦 IN THE BOX1 × Thunderbolt 4 Triple Display Docking Station
1 × 0.8M Thunderbolt 4 Cable
1 × 160W Power Adapter
1 × AC Power Cable
1 × Cable Holder
1 × Quick Start Guide💡 WARM TIPS1.M1/M2 based Macs only support single monitor.
2. For M3-based Macs, please close the host screen to support dual display.
3.Using two HDMI ports for multiple displays on Mac will show mirrored content.
4. Single 8K@60Hz is enabled for Windows TBT4 PC with DP 1.4 or higher and DSC.
5. MacBook limits to 4K@60Hz in single / dual / triple display mode due to hardware constraints.
6. Performance may be limited for non-Thunderbolt 4 systems.
7. The downstream Thunderbolt 4 port and the USB-C PD port support offline charging. Devices can be charged when disconnected from the computer or when the computer is powered off. One Cable. Full Workstation. 40Gbps transfers, 8K or triple 4K, 96W laptop charging, 2.5G Ethernet and a 13-port bank —
all delivered through a single Thunderbolt 4 cable. Built for creators and professionals who refuse compromise. WAVLINK · THUNDERBOLT™ 4 · 13-IN-1 · 8K · 96W PDWAVLINKTHUNDERBOLT™ 4 · 13-IN-1 · 8K · TRIPLE 4K · 96W PD · 2.5G ETHERNET
