Features:

1. Compact design: Integrated with display screen and encoder functions, the design is compact and saves space.

2. Rich interfaces: Supports iic communication interfaces, making it easy to connect with the main control device.

3. Equipped with oled screen: Users can perform intuitive operations by rotating buttons, suitable for application scenarios such as parameter adjustment.

4. The rotary encoder can rotate 360 ° and accurately rotate the position and direction.

5. Additional return and confirmation buttons are provided, with independent button interfaces and integrated design for easy diy.

Module introduction

This module is a combination of oled iic interface module and ec11 rotary encoder module, which are not related but are placed on the same board to form an integrated module. It is also equipped with return and confirmation buttons, with independent button interfaces and integrated design, making it convenient for diy

Parameters:

Product name: oled rotary encoder

Model: 0.96inch oled

Oled driver chip: ssd1306 (0.96 inches) 3.3V/5V

Oled interface: iic

EC11: plum blossom stem, stem length 15mm, 20 impact resistant, 20 positioning, 5-pin with switch

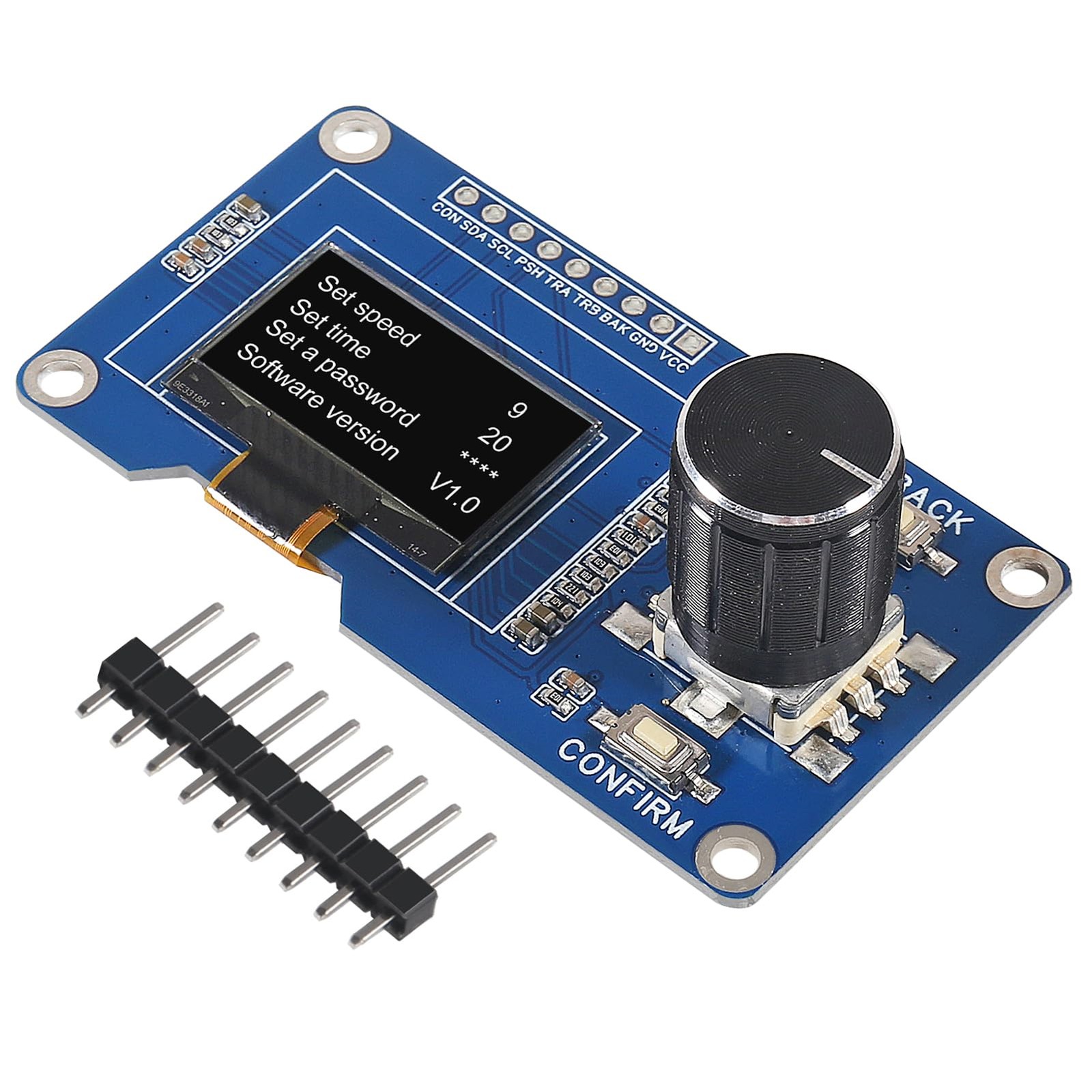

Package: 1PCS white LCD 0.96 inch oled display screen combined with EC11 rotary encoder module IIC interface

It has an onboard 0.96-inch OLED screen and leads to an IIC communication interface;Oled interface: iic(i2c)
It has the characteristics of small size, fast response, and stable performance;Oled driver chip: ssd1306 (0.96 inches) 3.3V/5V
Connect to an external microcontroller through pins for use;0.96 "OLED screen white +EC11 rotary encoder module
It has an onboard EC11 rotary encoder + 1 touch button and leads to an interface.
