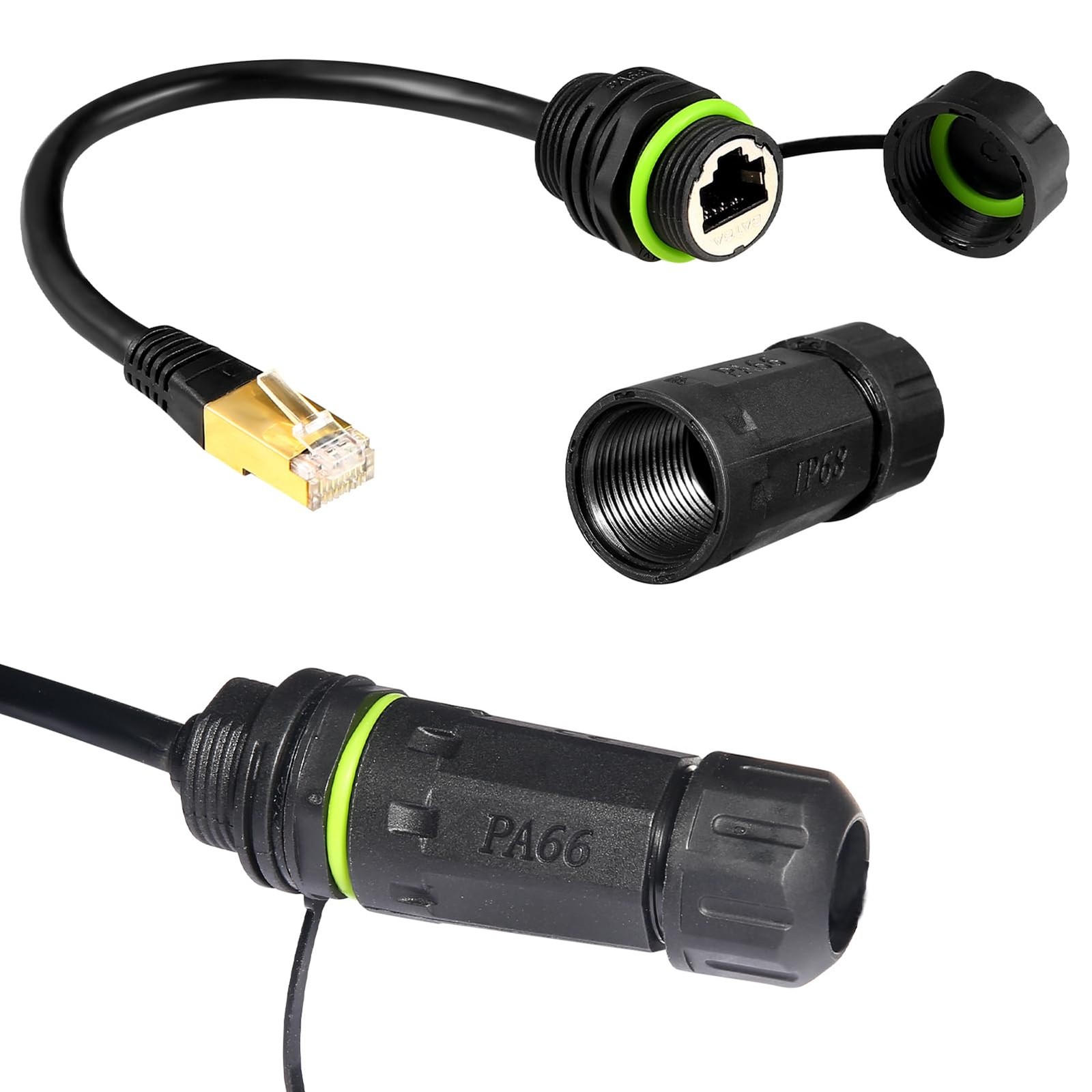

2PCS M20 RJ45 Shield Waterproof Cat6A Ethernet Extension Connector Product Gallery Product Description
- PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, The other end has a 250mm network cable, which can be plugged into any standard RJ45 device that needs to be connected.
- IP68 WATERPROOF: The Waterproof RJ45 Connector are IP 68 Compliant. Designed specifically for outdoor use, this connector features a robust weatherproof construction that protects against moisture, dust, and other environmental factors to maintain a stable and reliable connection.
- EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 female to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
- DURABLE: This RJ45 connector is well constructed and robust, flame retardant, UV resistant, and anti-aging.
- Quality Assurance: Professional waterproof connector manufacturer. The product undergoes rigorous inspection before leaving the factory. If you are not satisfied with the product, please feel free to .
Product Highlights
The female to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6 patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP68 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. Specifications:
Number of cores: 8 PIN
Waterproof rating: IP68
Connection type: RJ45
Flame retardant rating: UL94V-0
Connection method: plug type + thread pressure lock
Connector wire-in range: OD (3～8) mm
Case wall thickness: Threaded type: >3mm, through-hole type: 0.3~5mm
Installation size: M20*1.5
Network cable length: 250mm
Connector transmission classification: CAT6
Transmission speed range: Suitable for 1 Gigabit and 10-Gigabit Ethernet speeds
Electrical parameters:
Rated current: 2.4A
Rated voltage: 250V
Insulation resistance: ＞500MΩ
Compressive strength: AC1000V 50HZ or 60HZ for 1 minute
resistance: ＜10MΩ
Material:
Shell: Nylon PA66 (UL94V-0)
Socket pin: 0.5mm diameter phosphor copper wire
pin gold plating thickness: 6u inch
Waterproof rubber ring: silicone
Environmental conditions:
Working temperature: -40～105Celsius
Storage temperature: -25～85Celsius
Atmospheric pressure: 86～106kPa
Relative humidity: ≤90% RH
Package Included:
2x Waterproof M20 Cat6 RJ45 Connector
