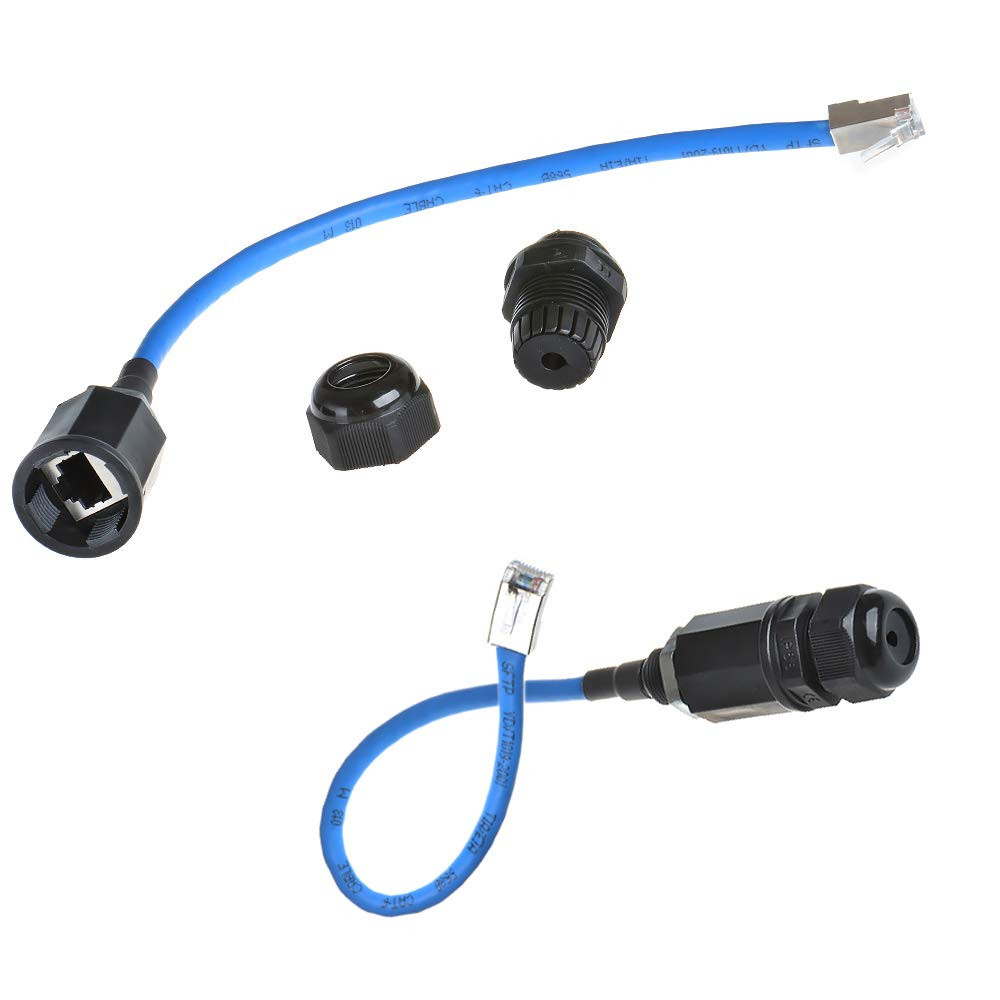

The male to female RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e/6 patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware.Specifications:
Color: Connector,Black; Cable,Blue
Material: High-performance engineering plastics + Metal
INGRESS PROTECTION: IP67
Connect Port: RJ45
Cable Core: 8
Pins:8P8C
Working Temperature: -25°C-85°C
Network Cable Length: 250mm/9.84inch
Connector: approx. 75mm/2.95inch
Mounting hole: opening size 20mm
Mounting hole thread: M20*1.5
Mounting Plate Thickness:1-7mm (if the panel has its own thread, the thickness is not required)Package Included:
2x Waterproof RJ45 Connector
PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, the network cables are connected to the connector through the waterproof head, and can be used as a cable extension cable.
SUITABLE for Harsh Industrial or Outdoor Environments: The Waterproof RJ45 Connector are IP 67 Compliant, 20mm thread mounting hole. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 male to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.
Faster speed & Better shield: Use shielded CAT6 crystal heads and network cables for faster transfer speeds and better shielding performance.
