2PCS XH-M229 ATX Desktop PC Computer Chassis Power Supply Transfer Board 12V 5V 3.3VProduct Overview

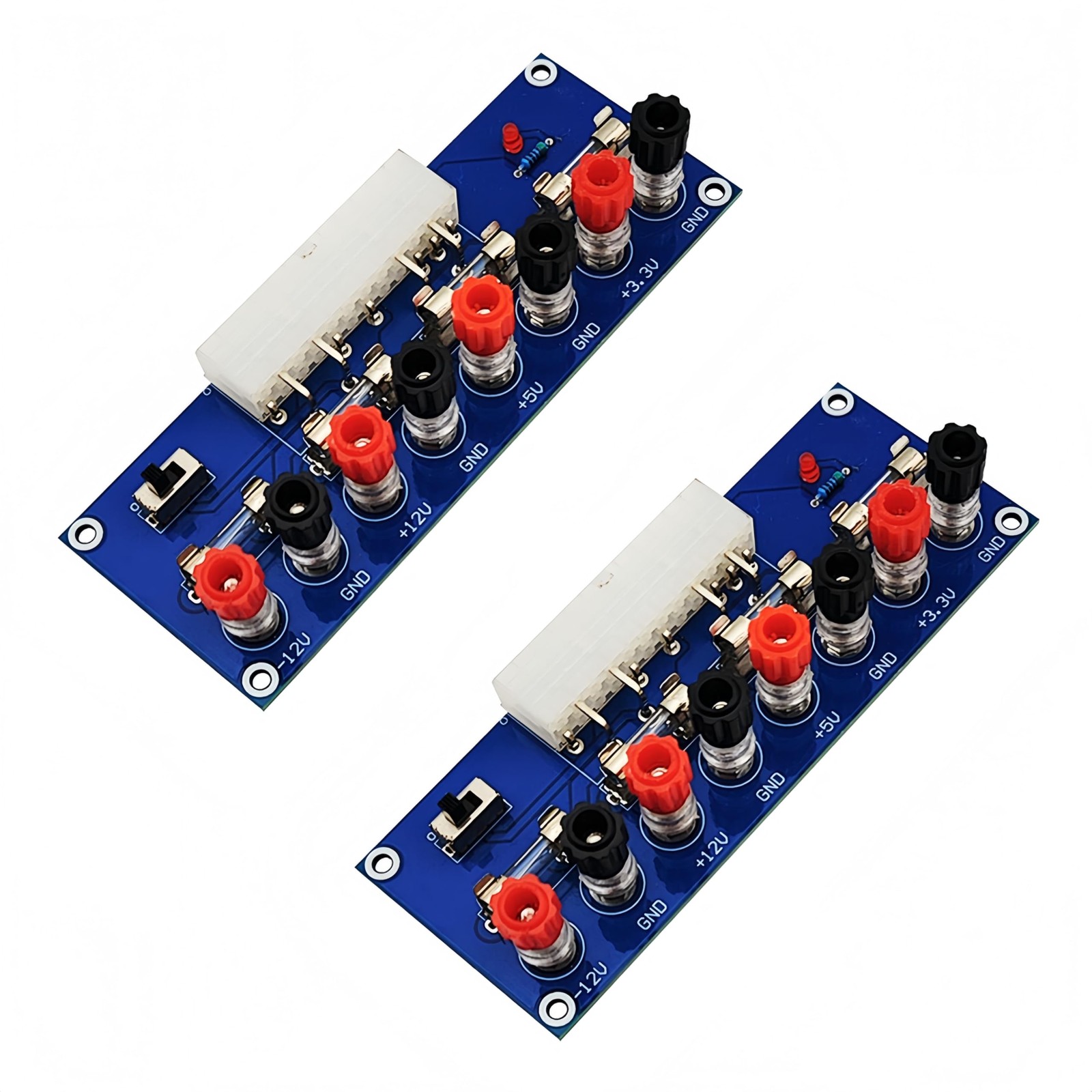

XH-M229 ATX Power Transfer Board
Size: 128*48*30mm
Hole spacing: 120.8*40.8mm
Installation hole diameter: 3.2mm
Weight: 62g
Please note that if the power supply is a 20PIN port, if it is not a 24PIN port, the socket should be inserted from the circular mark on the circuit board.
Compatible with the port: ATX (compatible with partial BTX type)
Number of PINs: 24PIN
Number of output groups: Four different voltages
Switch: Yes

About the 24pin port:
The 24pin port powers the computer motherboard in the host computer. Usually, this port is used together.
Voltage description of each terminal:
-12V to GND, GND is positive, -12V is negative, voltage DC12V
+12V to GND, +12V is positive, GND is negative, voltage DC12V
+12V to -12V, +12V is positive, -12 is negative, voltage DC24V
+5V to GND, +5V is positive, GND is negative, voltage DC5V
+3.3V to GND, +3.3V is positive, GND is negative, voltage DC3.3V
-It is not recommended to carry high current loads with 12V terminals. They only provide a logic potential to the motherboard, usually with a current of around 300MA

Special Features

• Compatible with the port: ATX (compatible with partial BTX type)
• Number of sets of output four sets of different voltages
• PIN number is 24 pin, with power light and power switch.
• Please note that if the power supply is a 20PIN port, if it is not a 24PIN port, the socket should be inserted from the circular mark on the circuit board.
• Size is 128 * 48 * 30mm, Weight is 62g. Each output channel has replaceable 5A fuse and corresponding ground connection with binding post easy to connect
