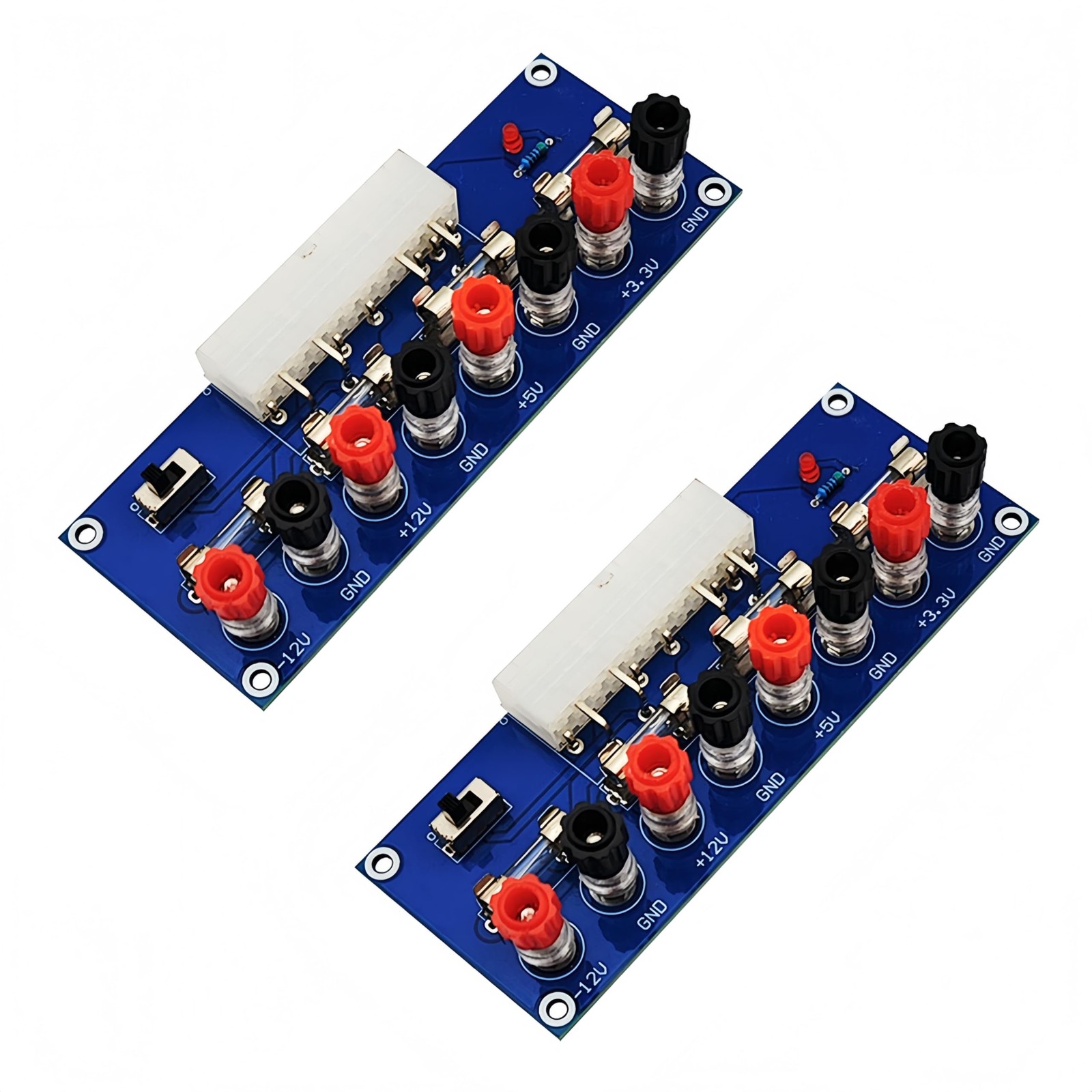

2PCS XH-M229 ATX Desktop PC Computer Chassis Power Supply Transfer Board 12V 5V 3.3V
- Compatible with the port: ATX (compatible with partial BTX type)
- Number of sets of output four sets of different voltages
- PIN number is 24 pin, with power light and power switch.
- Please note that if the power supply is a 20PIN port, if it is not a 24PIN port, the socket should be inserted from the circular mark on the circuit board.
- Size is 128 * 48 * 30mm, Weight is 62g. Each output channel has replaceable 5A fuse and corresponding ground connection with binding post easy to connect
XH-M229 ATX Power Transfer Board Size: 128*48*30mm Hole spacing: 120.8*40.8mm Installation hole diameter: 3.2mm Weight: 62g Please note that if the power supply is a 20PIN port, if it is not a 24PIN port, the socket should be inserted from the circular mark on the circuit board. Compatible with the port: ATX (compatible with partial BTX type) Number of PINs: 24PIN Number of output groups: Four different voltages Switch: Yes About the 24pin port: The 24pin port powers the computer motherboard in the host computer. Usually, this port is used together. Voltage description of each terminal: -12V to GND, GND is positive, -12V is negative, voltage DC12V +12V to GND, +12V is positive, GND is negative, voltage DC12V +12V to -12V, +12V is positive, -12 is negative, voltage DC24V +5V to GND, +5V is positive, GND is negative, voltage DC5V +3.3V to GND, +3.3V is positive, GND is negative, voltage DC3.3V -It is not recommended to carry high current loads with 12V terminals. They only provide a logic potential to the motherboard, usually with a current of around 300MA
