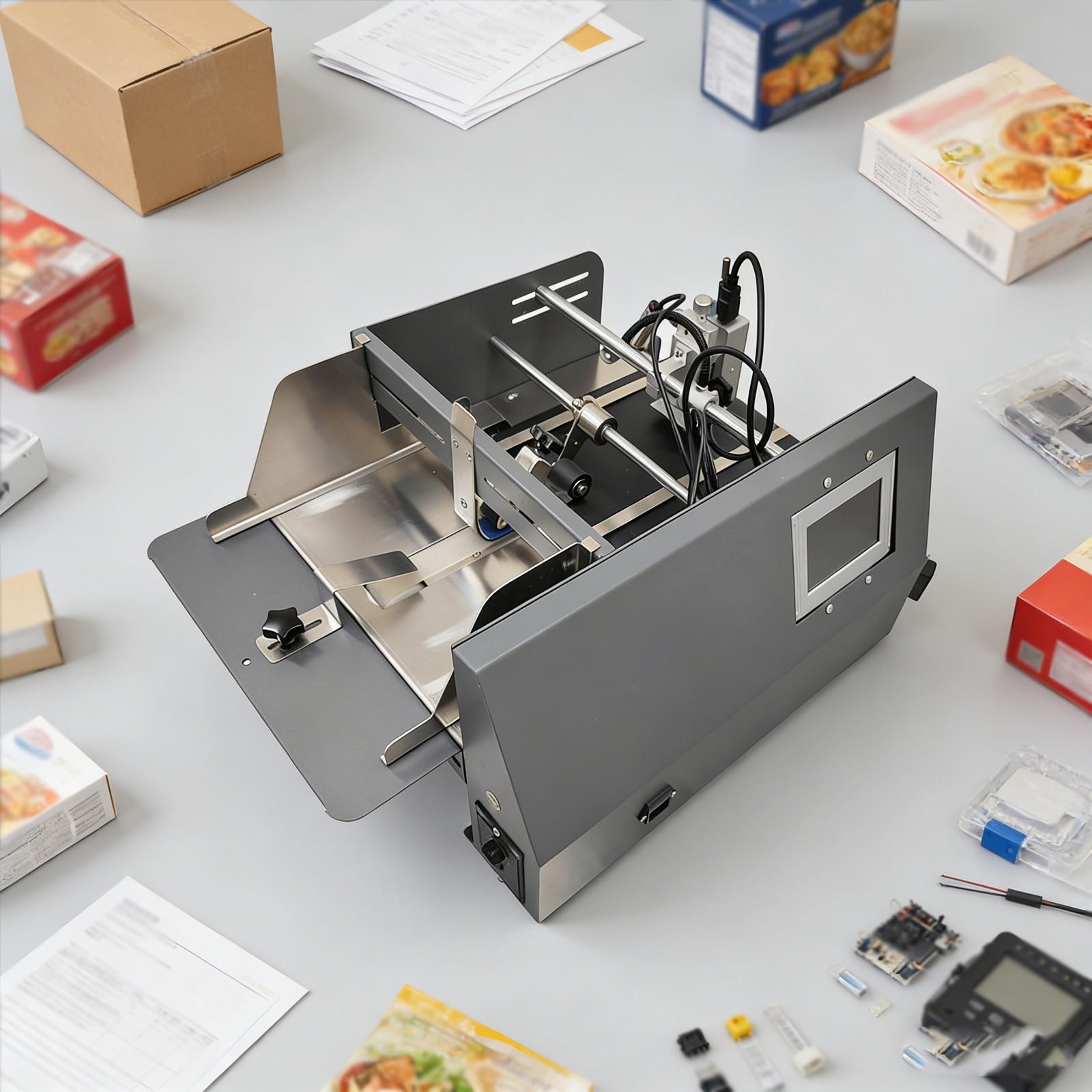

EFFLUVIALTECH® – Automatic Paging & Inkjet Printing Integrated Machine 220V EFFLUVIALTECH®

Automatic Paging Machine Friction Feeder Inkjet Printer Desktop Paging and Inkjet Printing Integrated Machine 220V

The automatic paging and inkjet printing integrated machine is a professional printing device specifically designed for automatic paging and inkjet printing. It automatically separates stacked packaging bags or cards, sends each piece to the conveyor belt, and then prints production dates, batch numbers, anti-counterfeiting marks, patterns, and other information via the inkjet printer. This reduces manual paging complexity, maximizes high‑speed printing advantages, improves efficiency, and simplifies production management. Widely applicable in packaging, printing, food processing, electronics, and light manufacturing industries.

Product Parameters Power supplyAC220V Single‑phase Machine materialMetal (surface paint) Inkjet printing distance2‑5 mm (0.07‑0.2 in) Motor power60 W Belt width235 mm (9.2 in) External interfacePower, RS232, USB Paging range50‑300 mm (1.9‑11.8 in) Paging speed33 m/min (108.2 ft/min) Inkjet printing height2‑12.7 mm (0.07‑0.5 in) Screen size5‑inch resistive touch screen Quick drying colorsRed, yellow, blue, green, orange, black, white, invisible Operating environment0‑40°C, 10‑80% humidity Operating languages29 languages (Chinese, English, Russian, French, Spanish, Japanese, Korean, Thai, etc.) Machine size43×51×29 cm (16.9×20.1×11.4 in) Net weight22.5 kg (49.6 Lbs) Product Features Stepless Speed Regulation

Knob‑type speed regulator provides precise control over conveyor speed, ensuring optimal paging and printing performance.

5‑Inch Touch Screen

Adjustable Feeding Guides

Two fixing plates prevent material deviation during feeding, ensuring accurate single‑sheet separation.

Durable Conveyor Belt

Flexible, wear‑resistant belt ensures smooth continuous transport of separated materials.

High‑Precision Print Head

Thermal foam technology delivers up to 600 DPI resolution. Easy cartridge change and position adjustment.

Intelligent Trigger

Key Advantages

• ✓ High working efficiency – stepless speed regulation, powerful motor
• ✓ Wide application – paper packaging, plastic films, aluminum foil bags, kraft paper, cartons, cards
• ✓ Adjustable printing position – horizontal guide plates and movable print head
• ✓ Clear printing – up to 600 DPI, precise photoelectric triggering
• ✓ Diverse content – text, date/time, graphics, logos, barcodes, QR codes, counting, USB import
• ✓ Robust metal body – sturdy, durable, easy to maintain

Precaution Safety & Maintenance

• Check ink and solvent levels and validity. Do not mix consumables from different brands.
• Clean nozzle surface and photoelectric sensor regularly to prevent ink/dust accumulation.
• Avoid idling; stop machine promptly when no material is present to reduce belt wear.
• Do not touch moving components (paging roller, print head) during operation.
• Wear chemical‑resistant gloves and goggles when handling ink or solvents. Avoid skin/eye contact.
• Do not cut power directly – this may cause nozzle blockage. Follow proper shutdown procedure.
• Unauthorized disassembly of nozzle, circuit board, or internal components is prohibited. Do not bump or wipe the nozzle forcibly.

Operation Method Step‑by‑Step Guide

1. Connect machine to 220V single‑phase power with reliable grounding.
2. Connect printing cable to print head, tighten screw, and adjust print head and photoelectric sensor position.
3. Remove clip and install ink cartridge.
4. Adjust inkjet printing distance via fine adjustment device.
5. Adjust baffles to fit material size, and press down battens.
6. Turn on power, test paging operation.
7. Edit print content on touch screen or import images via USB drive.
8. Start conveyor belt, feed materials, begin paging and printing.
9. Collect printed materials from the output section.
10. After finishing, remove ink cartridge, turn off power, and clean machine thoroughly.

Product Display Items Included (230615)

1 × Desktop Paging and Inkjet Printing Integrated Machine 220V

Complete operation manual
