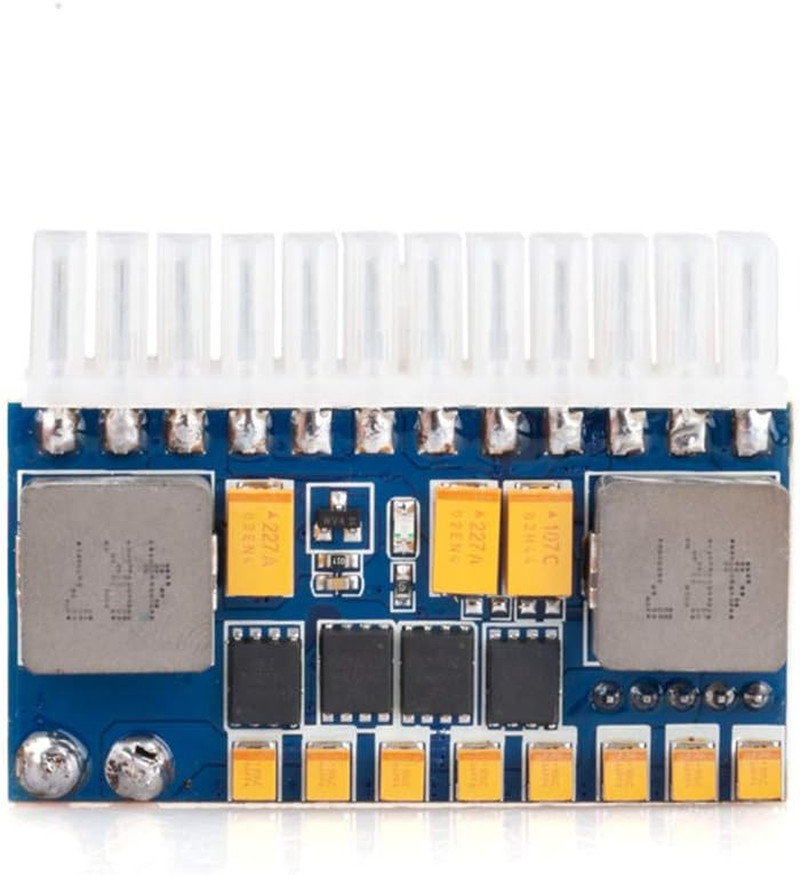

24Pin DC ATX PSU 12V DC Input 250W Peak Output Switch DC-DC ATX Pico PSU
Product description
Description:
100% brand new and high quality
Size (L*W*H): 2*0.3*1.5 inches/ 50mm*7mm*37mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 250W, and it must be accompanied by the power adapter
.
Specifications:
Input voltage: +12V/DC(11.4-12.6V)
Input Current: Max. 21A
Output ATX: 250W
Output Power: 250W
Power Efficiency: > = 85%
Working temperature/humidity: 15℃ to 35℃ / 45%-75%
Reposition temperature//humidity: -40℃ to +70℃/ 10%-90%
Atmospheric pressure: 86Kpa—106Kpa
Applications: MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals,
- Note: Only can use with 12V Power Adapter or 12V Input Voltage, 250 Watt Output 12 Volt DC Input,
- DC input connector: 2.5mm inner diameters, 5.5mm outer diameter
- Short-circuit protection: output shut down when short-circuit
- 24 pin ATX connector, Plugs directly into the ATX connector
- Perfect DC PSU for mini ITX Motherboards
Item Specification
- Compatible Devices Personal Computer Connector Type Used on Cable ATX Output Wattage 250 watts Form Factor ATX Wattage 250 watts Cooling Method Air Power Supply Design Internal Connector Quantity 1 Maximum Input Voltage 12 volts_of_direct_current Minimum Input Voltage 12 volts_of_direct_current Upper Temperature Rating 50 °C System Bus Connector Type 24 Pin Model Name 24pin DC ATX PSU Manufacturer COSHARE Model Number 250W PSU Mfr Part Number 250W PSU Item Dimensions 6.3 x 3.3 x 1.8 inches Item Weight 0.08 kg Connector Type ATX Item dimensions L x W x H 6.3 x 3.3 x 1.8 inches
Dimensions Shipping Returns Additional Info
- Product Dimensions: 1.8 inches x 6.3 inches x 3.3 inches. Weight: 0.08 kg
