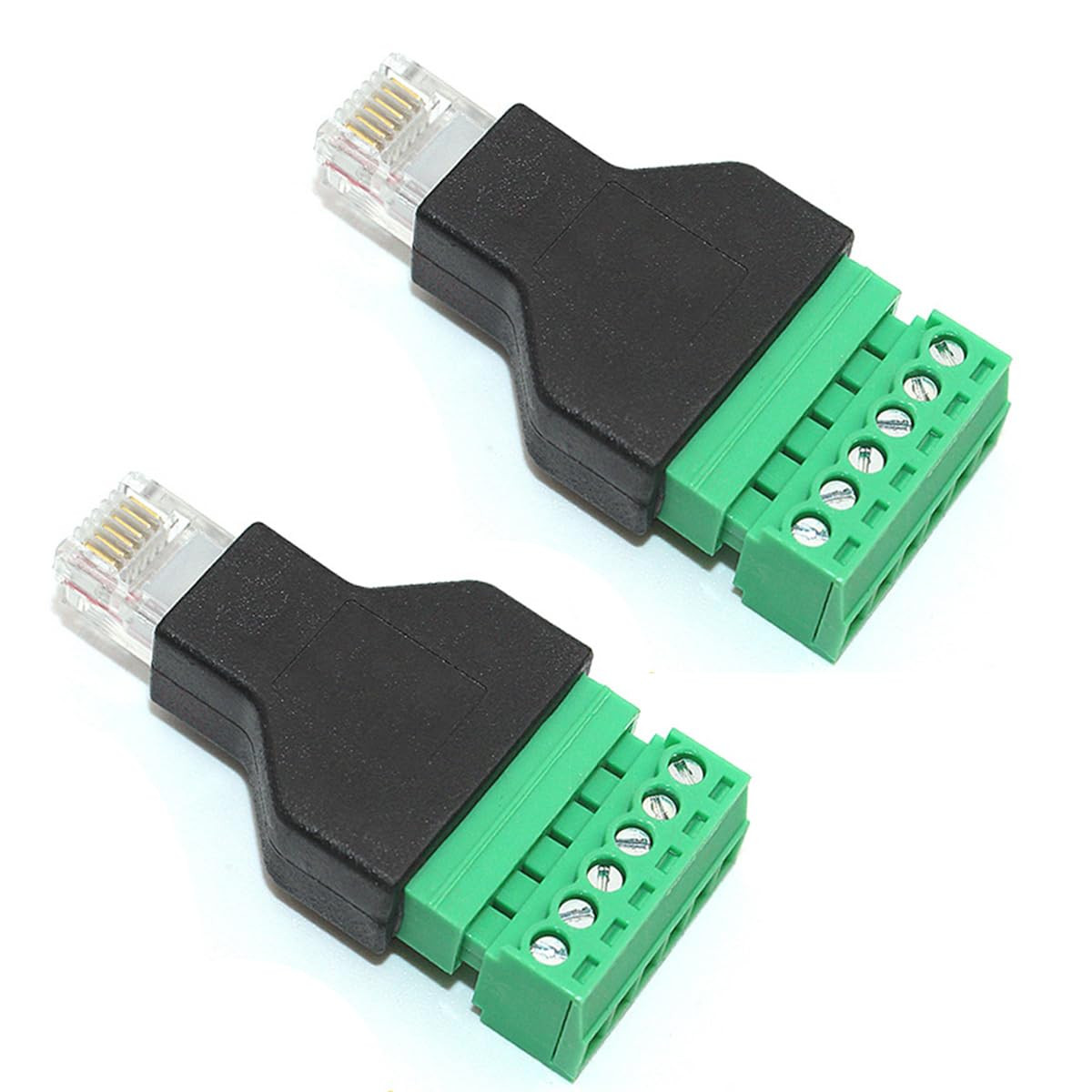

Product description Specifications:
- Material: Plastic & Metal
- Connectors 1: RJ11 6P6C Male Plug
- Connectors 2: 6Pin Screw Terminals
- Wire range: AWG26～18
- Pin: Black+Green
- Rated voltage: 100V.
- Rated current: 0.5A / per pin.
- Operating Temperature: -20ºC to 50ºC
Compact Design
This is a 6P6C connector (six-position six-conductor), most typically installed on telephone handsets and their cordage. 6P indicates a six-position modular plug or jack.
six-position modular connector
RJ11, RJ14, and RJ25 all use the same six-position modular connector, thus are physically identical except for the different number of contacts (two, four and six respectively) allowing connections for one, two, or three telephone lines respectively.
Easy to Use
No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
Wiring Reference Application
- Connectors 1:RJ11 6P6C Male plug , Connectors 2: 6 Pin/Way Female Bolt Screw Shield terminals Pluggable Type jack.
- Stability: Reliable connection, strong signal stability and reliability. It's most typically installed on telephone handsets and their cordage. Establishes a bridged connection for one telephone line with key telephone system control ahead of line circuit.
- This is a 6P6C connector (six-position six-conductor), most typically installed on telephone handsets and their cordage. 6P indicates a six-position modular plug or jack. A six-position modular plug with conductors in only the middle two positions is designated 6P2C; 6P4C has four conductors in the middle positions, and 6P6C has all six equipped.
- RJ11 is generally used as a generic term for this 9.5mm series, using RJ11-6P2C, RJ11-6P4C and RJ11-6P6C respectively to distinguish the number of contacts.
- Easy to use: No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
