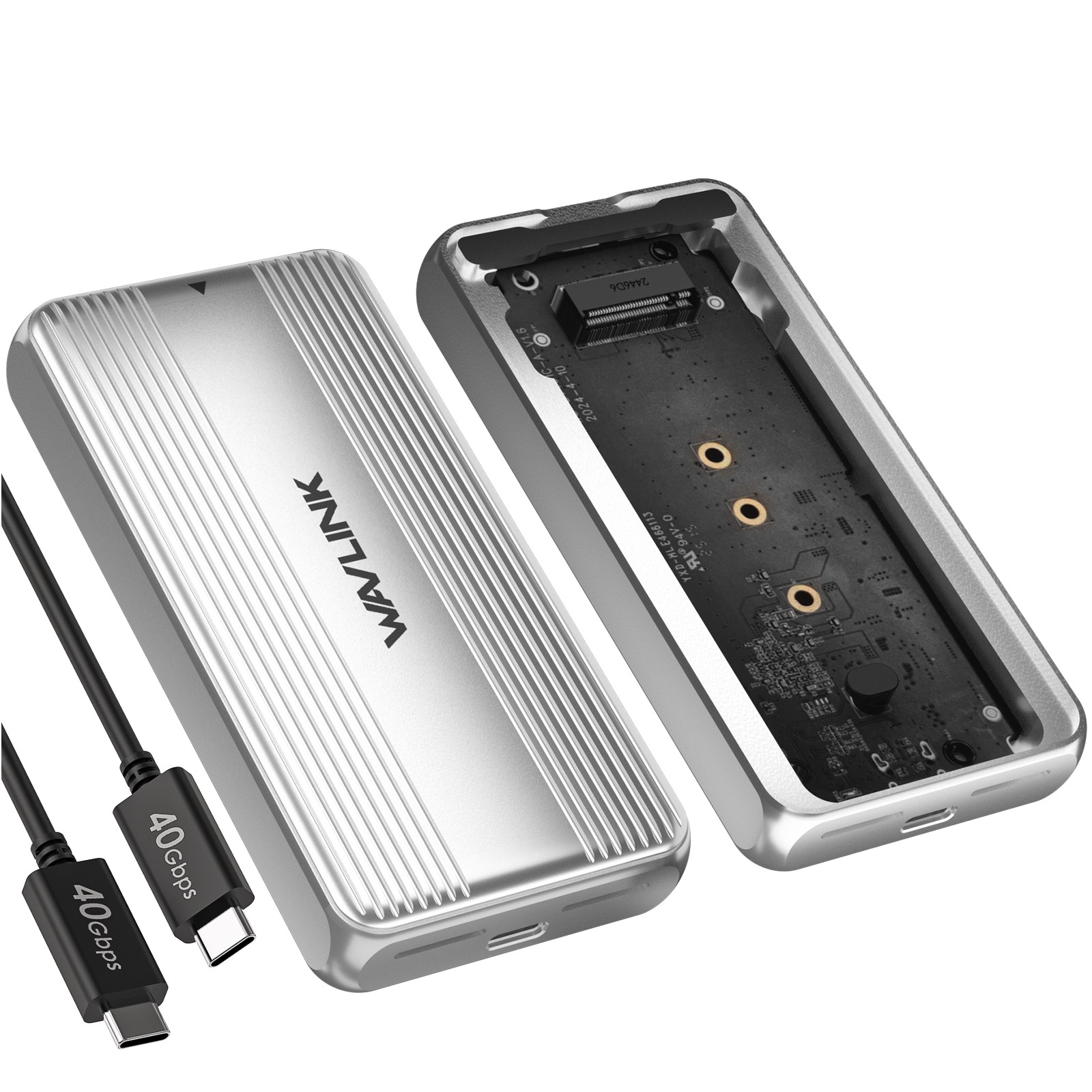

WAVLINK 40Gbps USB4 NVMe PCIe SSD Enclosure ---- Unlock the Full Speed Potential of Your SSD!
Equipped with an advanced USB4 port and the included high-quality USB4 data cable, the WAVLINK upgraded SSD enclosure
offers lightning-fast transfer speeds of up to 40Gbps, four times faster than USB3.2. When combined with the right computer
configuration and a compatible SSD, this enclosure can achieve read and write speeds of up to 3800MB/s. Say goodbye to long
wait times when transferring large files like games, educational software, and personal data backups – now you can complete
these tasks in seconds. And the integrated IC chip(ASM2464PD) generates less heat while enhancing transmission speed and stability,
ensuring optimal working performance.

Better Heat Dissipation
The heat generated by the SSD during operation will lead to transmission interruption and damage to the SSD if not discharged in time.
WAVLINK ST406C addresses this concern by incorporating the thermal silicone pad, the built-in fan, and an aluminum alloy case,
ensuring effective heat dissipation from the inside out.

Widely Compatible
Designed to work with laptops running Windows 10 or later, Mac OS 10.5 or later, and Linux. Please note: The performance might
be limited on Thunderbolt 3 and normal USB-C port. To get the advertised performance, the host should support Thunderbolt 4 or
USB 4 and it should support the data transfer speed of 40Gbps.

Suitable for Most SSDs
The enclosure supports both one-side SSDs and double-side SSDs in sizes of 2280, 2260, 2242, and 2230. The SSD should have
an M-key or M&B-key connector and support PCIe and NVMe protocols. Please note that this enclosure does
not support AHCI SATA SSDs or SSDs with a B-key connector.

How to Install the SSD?
Step 1: Find the side with the arrow sign. Open the top lid of the enclosure.
Step 2: Before installing the SSD, stick the silicone pad to the SSD enclosure's lid.
Step 3: Insert the SSD and use the silicone buckle to fix it.
Step 4: Reassemble the top lid and complete the installation.

Travel-Friendly Design
The pocket-size enclosure measures only 4.61*2.17*0.67in and weighs 233g, ideal for carrying it to school,
the office or on business trips. The tool-free installation adds additional convenience to your on-the-go use.
The enclosure also supports plug and play, just connect it with your USB-C laptop to experience ultra-fast
data transmission without installing any drivers.

Applicable to Multiple Scenarios
Featuring a 40Gbps USB4 port and an effective heat dissipation system, the SSD enclosure ensures swift and stable data
transmission of large files, such as XBOX/Switch games, extensive education software, media files, and personal data backups,
making the enclosure particularly well-suited for students, IT enthusiasts, photographers, etc.

Unleash the Power of a 8TB SSD
Experience the ultimate storage solution with support for a massive 8TB SSD. Expand your storage capabilities without
limits and say goodbye to worries about running out of space. Upgrade your laptop to a high-capacity storage platform
and enjoy the freedom and convenience it brings!

Compatibility Notes
Systems: Windows 10 or higher, Mac OS 10.5 or higher, Linux;
Host: Computers with a USB-C port;(The performance might be limited on TBT3 and normal usb port.
To get the advertised performance, the host should support TBT4 or USB4 and it should support 40Gbps.)
SSD: Support M key and B&M Key PCIe NVMe SSDs(both one-side and double-side) in sizes of 2280, 2260, 2242,
and 2230; NOT support B Key SSDs and AHCI SATA SSDs.

Specification:
1.Model: WL-ST406C
2.Unit Size: Length: 25.3cm/9.7in
4.Unit Weight: 233g/8.2oz
5.Housing Material: Aluminum Alloy
6.LED Light: Blue

Features
-USB4 Type-C port with transmission speeds up to 40Gbps, is compatible with Thunderbolt4/3, USB4/3.2/2.0
-Support sequential reading in Max.3800MB/s and sequential writing in Max.3800MB/S.
-Compatible with NVMe in sizes: 2280/2260/2242/2230.
-Plug and play, no driver required
-The ultra-slim aluminum case is convenient for heat radiation.

In the Box
-1×USB4 PCle NVMe SSD Enclosure
-1×USB-C to USB-C Cable (40Gbps)
-2×Silicone Silicone Pad
-1×Quick Start Guide
(Note: the NVMe SSD is not included)

Warm Tips:
1.The NVMe SSD is not included.
2.The performance might be limited on TBT3 and normal usb port. To get the advertised performance,
the host should support TBT4 or USB4 and it should support 40Gbps.
3.This test result for Max.3800MB/s reading and Max.3800MB/s writing is the best result tested by our own test environment,
and the specific effect is determined by the computer configuration and your SSD.
4.If the SSD is brand-new and unformatted, please perform partition installation so that the computer can read the data normally.
If the SSD is formatted and has stored data, you have no need to perform partition installation because the computer can read the data normally.

USB4 Enclosure(2-Bay, UASP, Trim, Offline Clone, 16TB)

WAVLINK M.2 Dual Bay NVMe Enclosure 40Gbps USB4 (40 Gbps) to NVME M-Key/(B+M) Key Solid State
Drive External Enclosure Support UASP Trim for 2230/2242 /2260/2280 NVME SSDs and Offline Clone

WAVLINK USB4 PCIe NVMe Dual SSDs Enclosure-Speedy USB4 Data Transmission Dupulicator!
The RapidFire U4D features two M.2 SSD slots for swift computer storage expansion, meeting growing capacity demands.
It offers easy-to-use, highly effective offline cloning, OTG functionality for mobile phone data access,
and a blazing-fast 40Gbps USB4 interface ensuring speedy, stable transfers. The read speed can be up to
impressive 3300MB/s, and the write speed can be 3000Mb/s. A protective aluminum case safeguards internal SSDs,
while efficient heat dissipation maintains optimal temperatures for extended hard drive life.

One-Click Offline Clone
Featuring offline clone function, this enclosure can achieve seamless data migration and system upgrade,
freeing you from the hassle of system and software reinstalltion.

Lightning-Fast Data Transfer
The enclosure uses USB4 technology, providing speedy 40Gbps data transfer, transmitting files in seconds.
The read speed can achieve remarkable 3300MB/s, and the write speed reaches to impressive 3000MB/s.

8TB/16TB Capacity for Storage
This PCIe NVMe enclosure supports 2 slots, up to 8TB per drive or 16TB in Raid 0,
an ideal choice for quick storage expansion and fast transfer.

360° All-Round Heat Dissipation
A powerful cooling system is required during device operation. RapidFire U4D features heat dissipation airholes,
built-in fan, and aluminum-alloy housing, adopting a combination of measures to keep components safe and effective.

Universal Compatibility
Offering broad compatibility, this PCIe NVMe SSD enclosure is designed for 2230/2242/2260/2280-sized M-key
and M&B key connector NVMe SSDs. It's also plug and play, supporting most devices on the market,
like MacBook Pro/Air, iPad Pro, and Dell XPS. Some common systems like Windows, macOS, iOS,
and Android are also applicable to this device.

Professional ASM2464PDX Chip
The ASM2464PDX chip enables high-speed USB4 data transfer. With its firmware, the chip also handles S.M.A.R.T.
queries and TRIM commands between your computer and the connected SSD. This ensures these key drive
management functions work properly in USB4 enclosures, maintaining drive health and performance as if the drive were plugged directly in.

Lightweight and Portable Design
This enclosure is 1.6 x 5.0 x 1.7 inches in size, and 176g in weight. Compared with other devices,
its convenient form factor makes it effortless to carry, offering reliable high-speed storage wherever you work.

Phone OTG Supported, User-Friendly Function
With phone OTG supported, this SSD enclosure provides a super-speed, large, and portable external storage
solution for your phone. This function largely breaks the storage limit of the phone and significantly improves the effectiveness of data transfer.

Warm Tips
- When using the offline clone function, the source and target SSD should be plugged into corresponding slots respectively.
- The capacity of the target SSD must be larger than or equal to that of the source SSD.
- During offline clone, the target SSD will be formatted. Please backup your important files before cloning.
- About the offline clone, for Windows users, connect the enclosure with two SSDs to the computer.
One disk partition will be displayed, while the other remains offline. To read both SSDs simultaneously,
please set the offine drive to online in "Disk Management".
- About the offline clone, for Mac users, connect the enclosure with two SSDs to the computer.
One disk will be displayed, while the other remains offine. To read both SSDs simultaneously,
please mount the offine drive in "Disk Utility".

In the Box
- 1 x USB4 PCIe NVMe Dual SSDs Enclosure
- 1 x USB-C to USB-C 40 Gbps Data Transmission Cable
- 1 x USB-C to USB-C PD Charge Cable
- 2 x Thumb Screw
- 1 x PD Power Adapter
- 1 x Quick Start Guide

System Requirements
- Microsoft Windows & Apple Mac OS
- Thunderbolt5/4/3, USB4/3.2/2.0 computers
- Only compatible with M.2 M-Key and M&B-Key connector

Specification
Model: RapidFire U4D
Size: 1.6 x 5.0 x 1.7 inch
Weight: 176g
Packing List: 1 x USB4 PCIe NVMe Dual SSDs Enclosure, 1 x USB-C to USB-C 40Gbps
Data Transmission Cable, 1 x USB-C to USB-C PD Charge Cable, 2 x Thumb Screw,
1 x PD Power Adapter, 1 x Quick Start Guide
