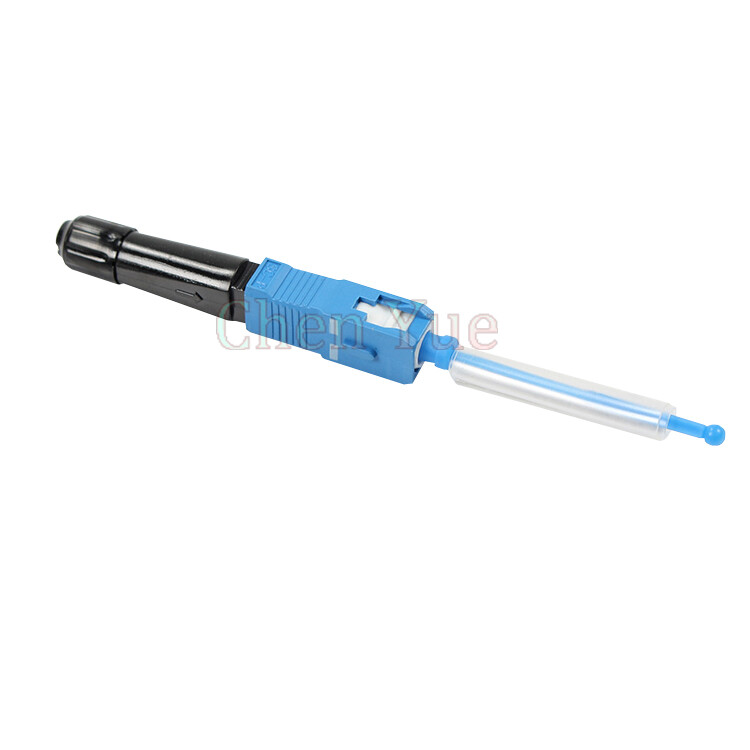

50pcsSC UPC single-mode FTTH Fiber hot melt quick connection SC FTTH Fiber Optic Fast Connector SC Connector

Description:

• Hot melt fast connector is the same as fiber splicing, but its fusion point at the end of the internal connector, the equivalent of a hot melt to the pigtail pigtails saved,This benefit is no need for welding after a good extra protection, such as optical fiber splice protection plate, jumper connector boxes, wiring boxes. With respect to the mechanicalType quick coupler, this paragraph utility model can be improved following the quick connector contacts life, reduce maintenance costs later.We work with the first domestic production of optical fiber welding machine Keelung cooperation, according to the characteristics of KL-300F and apply it to quickly splice fiber to the home FTTHMelt-in connector design, thus saving V- shaped groove mechanical connector repair, construction costs, and durable, to subvert the usual welding machineThe expensive and does not apply the concept of FTTH construction.

  Applications:

  CATV

  Active device termination

  Telecommunication networks

  Metro

  Local Area Networks (LANs)

  Data processing networks

  Test equipment

  Premise installation

  Wide Area Networks(WANs)

  Specifications:

  Singemode(UPC)

  Singemode(APC)

  Multimode

  Insertion loss

  ≤ 0.2db

  ≤ 0.2db

  ≤ 0.25db

  Return loss

  ≥55db

  ≥65db

  ≥30db

  Durability

  ≤ 0.2db typical change, 1000 times mating

  Operating Temperature

  -45 to +85 degree

  Ferrule Hole Sizes

  125.0+1/-0um, Concertricity:≤1.0um

  125.0+1/-0um, Concertricity:≤0.5um

  125.0um, Concertricity:≤3.0um

  125.3+1/-0um, Concertricity:≤1.0um

  125.3+1/-0um, Concertricity:≤0.5um

  127.0um, Concertricity:≤3.0um

  125.5+1/-0um, Concertricity:≤1.0um

  125.5+1/-0um, Concertricity:≤0.5um

  128.0um, Concertricity:≤3.0um

  126.0+1/-0um, Concertricity:≤1.0um

  126.0+1/-0um, Concertricity:≤0.5um

  Product list:

  ItemConnector DescriptionConnector Singlemode Multimode (50/125 or 1. Above price is for assembled connectors2. The price for 0.9mm, 2.0mm&3.0mm boot is same.
