5Pcs 0.3m Duplex Single Mode Fiber Optic Patch Cord LC UPC 9/125μm 1310nm/1550nm For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

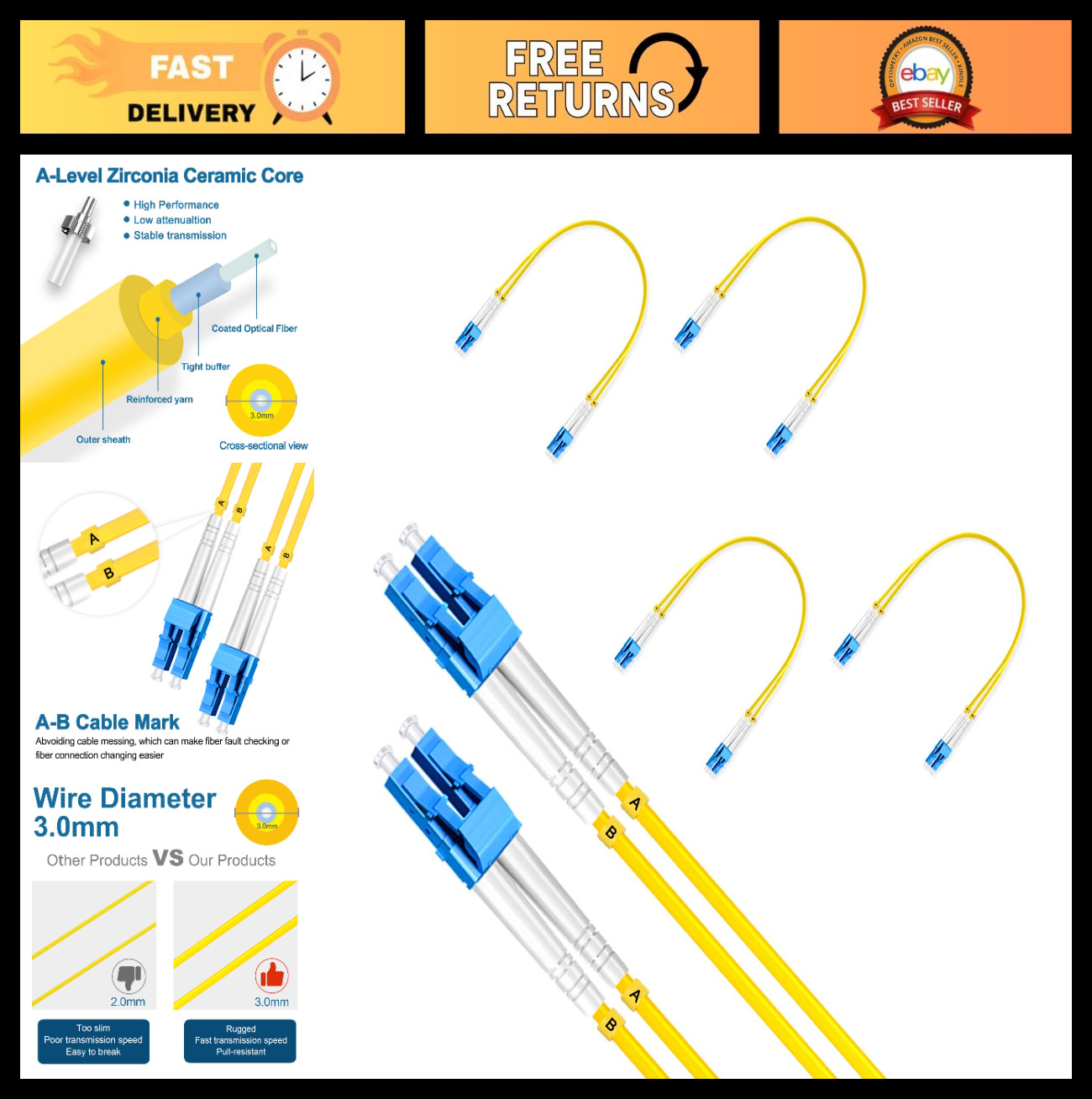

High-Performance LC UPC to LC UPC Fiber Optic Patch Cord
Experience superior connectivity with our 5Pcs 0.3 Meter (0.98ft) LC UPC to LC UPC Single Mode Duplex OS2 Fiber Optic Patch Cord. Designed for optimal performance, this patch cord is perfect for a variety of networking applications.
Main Parameters:
Length: 0.3 Meter (0.98ft)
Fiber Core: 9/125 μm G652D
Wavelength Support: 1310nm/1550nm
Key Features:
High Performance:
≤0.2dB repeatability and interchangeability
≤0.3dB insertion loss
≥50dB return loss
The low insertion loss and high return loss ensure stable transmission, operating reliably in temperatures ranging from -20°C to 60°C.
A-B Cable Mark: Easily distinguish fiber connections with the A-B cable marking, simplifying fault checking and connection changes.
Durable Construction: Buffered to a size of 0.9mm with LSZH material and reinforced with para-aramid yarn for strength. The 3.0mm external LSZH jacket protects the internal structure while providing excellent tensile performance and flame retardancy.
Bend-Insensitive Design: The OS2 9/125μm fiber offers lower attenuation when bent or twisted, enhancing installation and maintenance efficiency.
Short Type Fiber Cable: Ideal for equipment cabling within the same device rack, reducing cable clutter and facilitating easier fiber fault checking and connection changes.
