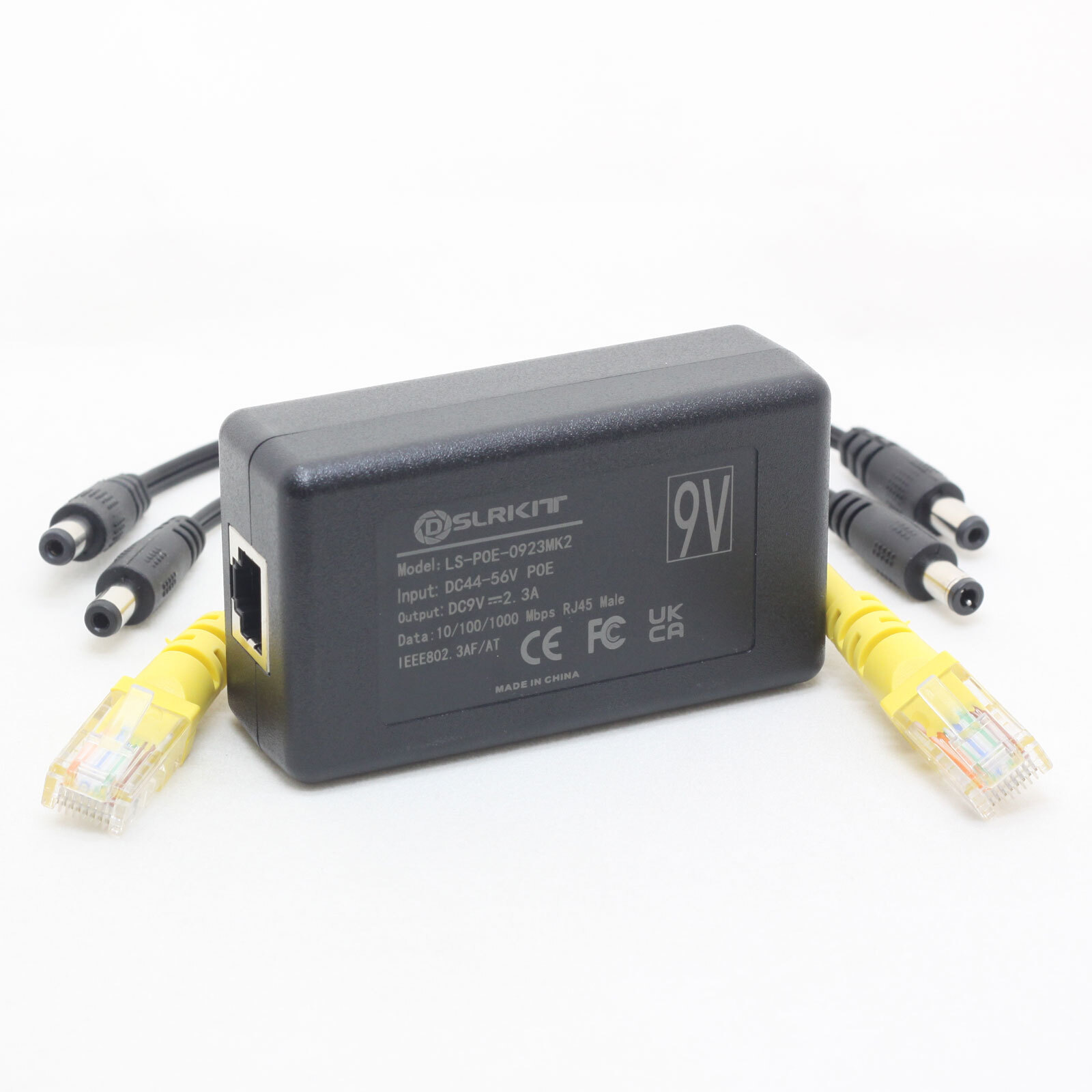

9V 2.3A Gigabit Active PoE Splitter 23watt DC 5.5x2.1/2.5mm Ethernet 802.3AT
Price: US $14.99
Compliant with IEEE802.3af/802.3at With 2.5KV isolation
Note: The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation.
Output power Max.15Watt (DC9V1.6A) when used with the IEEE802.3af standard PoE switch(or 802.3af PoE injector) Output power Max.23Watt (DC9V2.3A) when used with the IEEE802.3at standard PoE switch (or802.3at PoE injector) Output power Max.23Watt (DC9V2.3A) when used with the DSLRKIT Non-standard 48V~52V Passive PoE switches (or 48V~52VPassive PoE injector)
Support the IEEE 802.3af/at the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE with IEEE802.3af output 9V1.6A 15Watt Compliant with IEEE802.3atoutput 9V2.3A 23Watt Isolation: 2.5kV Power Input: DC44~57V Power Output: DC9V 2.3A(Peak current 2.5A) Data&PowerPOE Port: from RJ45 (Compliant with IEEE802.3af/at PoE) DataPort: RJ45 Power Output Port: 5.5x2.1/5.5x2.5mm DC plug Data Transfer Rate: 10/100/1000 Mbps Data Pin: RJ45 pin 12345678 Devices will be detected before poe input Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-) Body size: 80x 45x 26 mm DC cable length：85mm RJ45 Modular Plug cable length：155mm Weight : 92gOperation Temperatue:-20℃ ~ 45℃ Storage Temperature:-30℃ ~ 70℃
