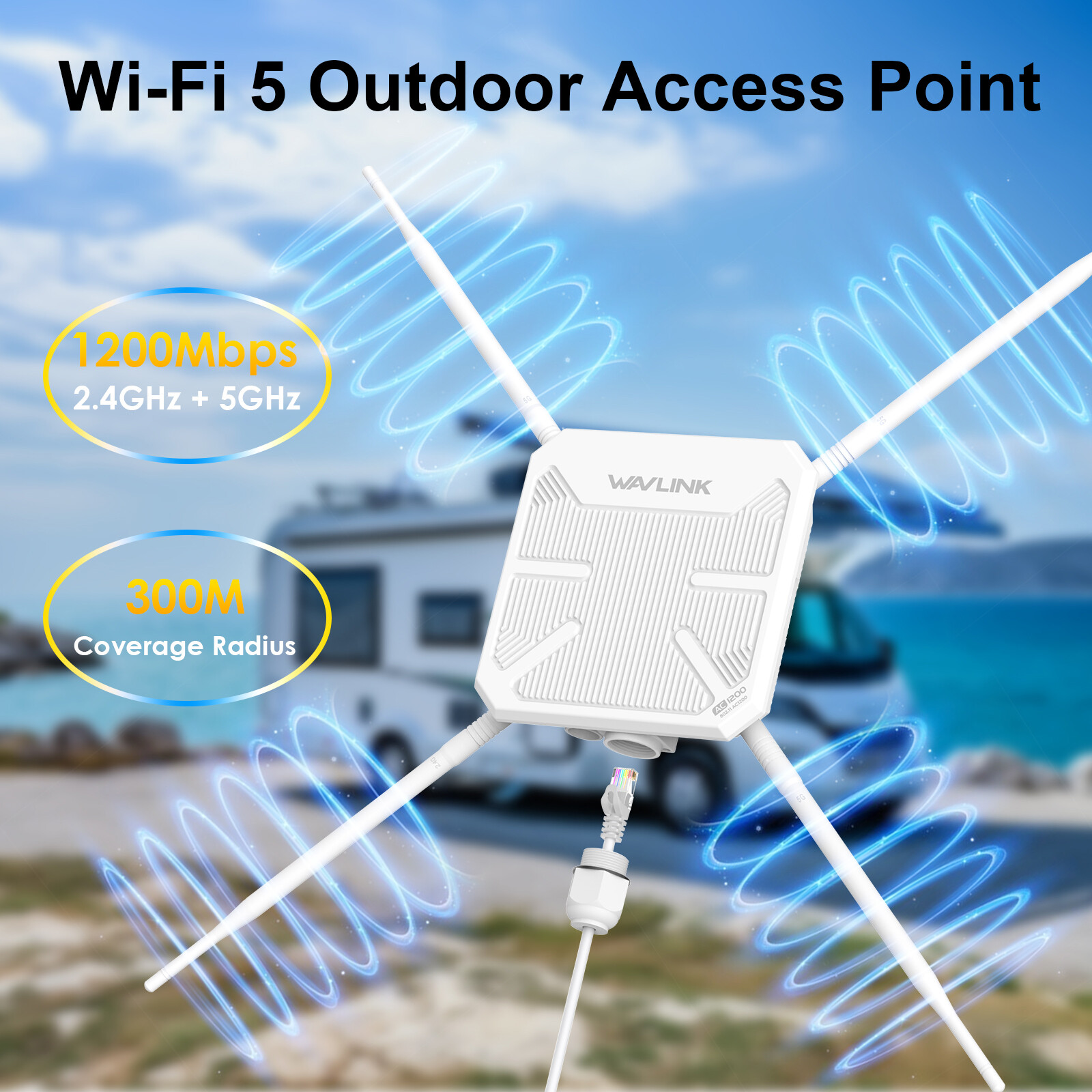

[Upgrade to Wi-Fi 5]Dual Band AC1200 offers faster data transfer speeds with 2.4GHz@300Mbps and 5GHz@867Mbps. Compliant with IEEE 802.11ac/a/n/g/b standards. Enhanced with MU-MIMO, Beamforming, reducing interference for stable, wider coverage, and increased device connectivity.

[Expand Coverage Area]Equipped with 4 x 7dBi Omni detachable antennas, it features up to 1000MW power and built-in high-power amplifier PA+LNA. Capable of receiving existing 2.4GHz and 5GHz wireless signals, extending the range of the router or access point up to 300 meters.

[Professional Outdoor Design]Indoor/Outdoor use, supports wall/pole mount; robust IP67 weatherproof casing with grounding terminal; offers 15KV ESD protection, 6KV lightning protection; withstands -20ºC to 50ºC temperature range, ensuring stable operation in various weather conditions.

[Flexible Mode Selection]AP/Repeater/Router mode: Connects to most wireless signals, including Starlink. Mesh mode allows seamless home roaming with a single SSID/password setup, pairs easily with one touch. Also compatible with Wavlink AC controller for unified management in large networks.

[Powered by PoE]Supports 802.3AT/AR Active PoE and Passive PoE for flexible deployment by integrating power and network data over a single cable, simplifying outdoor Wi-Fi access point setup, making it convenient to install devices in locations without power source.

Warm Tips:
1.When setting up a mesh network, please note that the WL-WN588HA2 supports a maximum of 8 devices for networking (including the main router). It is only compatible with devices from the same brand """"Wavlink"""" that support Everything Mesh; other devices are not supported.
2.The access point cannot act as a repeater for wireless signals with enforced captive portal.
3.For optimal performance, choose open and unobstructed locations, avoiding obstacles like walls, doors, aquariums, trees, and other barriers as much as possible.
4.All Wi-Fi extenders are designed to expand or enhance Wi-Fi coverage range, rather than directly increase speed.
5.PoE converter is not waterproof and should be used indoors or in a sheltered environment.

Specification:
Model: WL-WN588HA2 (AERIAL HD8S)
Port: 1 x WAN/LAN Gigabit Port
Button: 1 x Pair/Reset Button
Product Size: 17.0x5.6x17.0cm/6.7x2.2x6.7in
PoE Converter Size: 3.7x2.2x4.3cm/1.5x0.9x1.7in
Ethernet Cable: 100cm/39.4in (CAT 5E)
Power Adapter Cable Length: 125cm/49.2in
Standard: IEEE 802.11ac/a/n/g/b
Frequency Band/Speed: 2.4GHz@300Mbps, 5GHz@867Mbps
Wireless Security: OPEN, WPA2-PSK, WPA/WPA2 MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise
Antennas: 4 x 7dBi Omni Antennas (RP-SMA)
Status LED: Blue
PoE Converter Status LED: Green
PoE Converter Support: DC 54V/0.3A Power over Ethernet (Passive), DC 48V Power over Ethernet (Active)

In the Box：
1 x ACI200 Wi-Fi 5 Outdoor Access Point
4 x Plastic Cable Ties
1 x Main Body Holder
4 x 7dBi Antennas
1 x Wrench
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
1 x PWM M3x5x6MM Screw
6 x KA M3x20x5.2MM Screws
6 x Φ6.5x25MM Screw Plugs
1 x Quick Start Guide

1200Mbps-4*Antennas

WAVLINK AC1200 High Power Outdoor Weatherproof WiFi Range Extender/Wireless Access Point/mesh agent with Passive POE, Dual Band 2.4GHz 300Mbps+5.8 GHz 867Mbps, 4x7dBi Detachable Omni Directional Antennas, Mesh Technology Supported, No WiFi Dead Zones for Working from Home

Features:

[AC 1200 Dual-Band & Upgraded Chip & Easy Mesh Technology Supported]: The next generation of Wi-Fi, complies with IEEE 802 11 ac/a/b/g/n standards. Dual-Band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, an upgraded version of AC1200(1200Mbps); With a brand-new chip MT7621A and Easy Mesh supported, it lets you keep more devices(64~96) connected simultaneously with the dual bands and enables Wavlink mesh router/AP/repeater to work together, which is superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.

[Multiple Operation Modes & Power Over Ethernet & Dual Gigabit Ethernet Ports]: WL-WN572HP3 supports Mesh Extender Mode, Access Point (AP) Mode, and Repeater Mode. Integrated Power over Ethernet (PoE) supported, allowing it to be installed in areas where power outlet is not available by combing your power and network data connection into a single RJ-45 cable; Dual Gigabit (1000Mbps) LAN/WAN Ethernet Ports---support 10/100/1000Mbps speeds, 10x faster than a standard Ethernet port, giving you an excellent network speed experience.

[Design for Harsh Outdoor Environment & Strengthening Waterproof Version]: IP65-rated weatherproof & heat-resistant case that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightning protection, ensure stable connection in harsh outdoor conditions. The key parts have been coated with waterproof glue to strictly avoid leakage phenomenon of the product. Note: The PoE part of the router is not waterproof.

[4 x 7dBi Detachable Omni Directional Antennas & Outstanding Function]: Higher antenna gain extensively strengthens Wi-Fi signal and expands wider coverage in the open air, stability technology automatically avoids channel conflicts using its channel selection feature, meet outdoor long range coverage wireless network requirement, cover hard-to-reach dead zones. High Power Amplifiers PA 800mW and enhanced receiver design for more strong penetration & longer range coverage than the general access point, ideal for providing Wi-Fi service in big area such as factory, community, street or etc.

[What You Get]: All Wavlink products come with a high-quality after-sale service. Please feel free to contact us anytime if you have any question, we will do our best to help you. In the Box: AC 1200 Dual Band Outdoor Ap/Range Extender, 2x 2.4 G Omni Antennas, 2x 5G Omni Antennas, 1x RJ 45 Networking Cable, 1x Power Adapter, 1x PoE Converter, 1x Main Body Holder, 2x Cable Ties, 1x Screw Fitting Kit, 1x Quick Start Guide. 12-month worry free warranty( extra 6 months for registered members) and life-long technical support.

Dual Bands WiFi Repeater
With combined wireless speeds of up to 2.4GHz 300Mbps or 5GHz 867Mbps, simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth-intensive tasks like online gaming or HD video streaming can be processed by the 5GHz.

Multiple Operation Modes
Mesh Extender Mode: Co-create a larger wireless network coverage with Wavlink mesh supported routers and share signal to multiple WiFi devices.
AP Mode: Convert a wired network to a wireless network, which allows you connect laptops, tablets, phones or other WiFi devices.
Repeater Mode: Extend WiFi coverage of an existing wireless network.

Withstand Harsh Climates
An IP65-rated weatherproof housing that ensures the 572HP3 continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F). Build in lightning arrester (15kV ESD), 4KV lightning protection.Note: The PoE part of the router is not waterproof.

Applicable for Large-coverage
Extend the network over long-distances (max 200 meters) with high gain 4x7dBi antennas that deliver a stable and fast network connectivity to large yards and patios. So, it can boost Wi-Fi coverage up to max A=πr^2(r=200m)= 125,600m^2(1350,000 sq.ft), which is over 135 times larger than others' only 10,000 sq.ft coverage!

Strengthening Waterproof Parts
In order to avoid the water leakage issue the latest version 572HP3 has specially improved the key parts, coated with waterproof glue, greatly strengthening the waterproof protection.

Installation note：
-Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
-The outdoor antennas should be installed at a height of 2 meters above the roof or in a high open place for better reception.

Specification:
Frequency: 2.4GHz & 5GHz, speed up to 1,200 Mbps
Interfaces: 1x 10/100/1,000Mbps LAN; 1x 10/100/1,000Mbps WAN
Antennas: 4x 7dBi omni Antennas
Operation modes: Repeater, AP, Mesh Extender
Weatherproof case: 15KV ESD and 4KV Lightning Protection
Security: WPA2-PSK,WPA 2/ WPA 3 Mix
LEDs: 7x Status LED Indicators
Power adapter: 100~ 240V/50~60Hz; DC 24V (Passive PoE)

1x AC 1200 Dual Band Outdoor Ap/Range Extender
2x 2.4 G Omni Antennas
2x 5G Omni Antennas
1x RJ 45 Networking Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide

WAVLINK AC1200 Dual Band Outdoor Access Point, Outdoor Long Range Wi-Fi Extender with Active/Passive PoE, WAN/LAN Port, IP67 Waterproof, Supports AP/Router/Repeater Modes, 2x7dBi High-Gain Antennas

Features:

*AC1200 Dual-Band Range Extender: With Wi-Fi 5 technology at its core, the WAVLINK outdoor AP keeps you connected in stride with speeds reaching up to 1200Mbps. Ideal for smooth HD streaming, online gaming, and bandwidth-heavy activities. Whether you're in the yard, by the pool, or in a parking lot, relish dependable Wi-Fi 5 connectivity wherever you are.

*Power Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be consolidated into a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE. You can use and connect your own active switch.

*IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure ensures continued operation in harsh outdoor environments, including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature (-10°C to 50°C or -14°F to 122°F), and has 15KV ESD and 6KV lightning protection.

*Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi-Fi coverage of an existing wireless network. Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one. AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.

*Outdoor Access Point: Providing ultra-fast networking speed of 300Mbps over 2.4G band and 867Mbps over 5G band, the outdoor Wi-Fi repeater has a maximum coverage range of 200 meters, supports up to 32 devices. Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission. (Coverage may vary based on the actual environment.)

Applicable to Kinds of Weather
IP67-rated weatherproof and heat-resistant housing ensures continued operation in harsh outdoor environments. For example, it is sunny and exposed to the sun; it rains and is wet; it snows and freezes; and there is thunder and lightning.

Applicable to Multiple Scenarios
It is suitable for various large-scale outdoor scenes, whether it is your own yard, outdoor swimming pool, school, park, playground, or outdoor parking lot.

Waterproof Case Design
The waterproof housing has an IP67 rating for impressive dust and water resistance, allowing it to operate reliably even when exposed to harsh outdoor conditions or temporary rain.

7dBi Omni Directional Antenna
The high-gain antenna panel has two built-in 7dBi omni directional antennas, which are designed to strengthen the WiFi signal in one direction and make it more concentrated. And WiFi coverage in a specific direction is farther than omnidirectional antennas.

Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better performance.

Specification
1.Model: WL-WN570HA2
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 a/b/g/n/ac
6.Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: />13.Storage Temperature: />14.Distance:Outdoor 200m(Change with the Actual Environment)

In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide

Wavlink AC600 7dBi High Power Outdoor Omni-directional Access Point/CPE/Repeater/WISP 2.4GHz 150Mbps + 5GHz 433Mbps, Passive PoE Model

Withstand Harsh Climates
WN570HA1 has an IP65-rated weatherproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Note: The PoE part of the router is not waterproof.

Easy Installation With Power over Ethernet(PoE)
By combing your power and data connection into a single cable, PoE simplifies the setup of the High power Outdoor WiFi Access Point/Bridge. Combining power and network access into a single RJ-45 connection for the WN570HA1 allow you to install the WN570HA1 in hard to reach location without worrying about running both power and Ethernet power and dual polarization delivers long-range coverage
2.Passive PoE(power over Ethernet) supports for flexible deployment and allows the device to be reset remotely.
3.Weatherproof IP65-rated housing resists harsh climates. Note: The PoE part of the router is not waterproof.
4.Dual band speed up to 2.4GHz 150Mbps and 5GHz 433Mbps.
5.Supports AP, Router, Repeater,WISP as operation modes. In the mode of AP, it provides Access Point, Client, Client Repeater modes for wireless solutions.

Specifications:
1.Operating Temperature: -30°C~70°C(-22 ~158F)
2.Storage Temperature: -40°C~70°C(-40~158F)
3.Power Plug: US
4.Voltage: 100-240V
5.Support 2.4 GHz 5GHz
6.Standard:802.11 ac/a/b/g/n
7.Maximum WLAN security with WPA2,WPA and WEP(128/64)
8.Distance:Outdoor 150m(Change with the Actual Environment)

What’s in the package?
1 x WiFi AP/Router
2 x Antenna
1 x power Adapter
1 x POE Converter
1 x RJ-45 Networking Cable
1 x Main body holder
1 x Screw fitting
2 x Cable ties
1 x Quick Installation Guide

Note:
Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
The outdoor antenna should be installed at a height of 2 meters above the roof or in a high open place for better reception
