Power Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be consolidated into
a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE.
You can use and connect your own active switch.

IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure ensures continued operation in harsh outdoor environments,
including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature (-10°C to 50°C or -14°F to 122°F),
and has 15KV ESD and 6KV lightning protection.

Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi-Fi coverage of an existing wireless network.
Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one.
AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.

Outdoor Access Point: It has a maximum coverage range of 150 meters, supports up to 32 devices, and provides 2.4GHz, 300Mbps, high-speed,
and 100M Ethernet ports. Simple settings enable wireless optimization to improve the quality and effectiveness of link transmission.
(Coverage may vary based on the actual environment.)

Single-Band Range Extender: Powered by 802.11n Wi-Fi technology, you can enhance your existing wireless coverage even in single-band range,
providing speeds of up to 300Mbps on the 2.4GHz band. This allows you to enjoy high-speed downloading of your games, videos, and other files even in public areas.

Specification
1.Model: WL-WN570HN2-B
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 b/g/n
6.Frequency Band/Speed: 2.4GHz(300Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 150m(Change with the Actual Environment)

In the Box
1x N300 Outdoor Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide

Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better Repeater

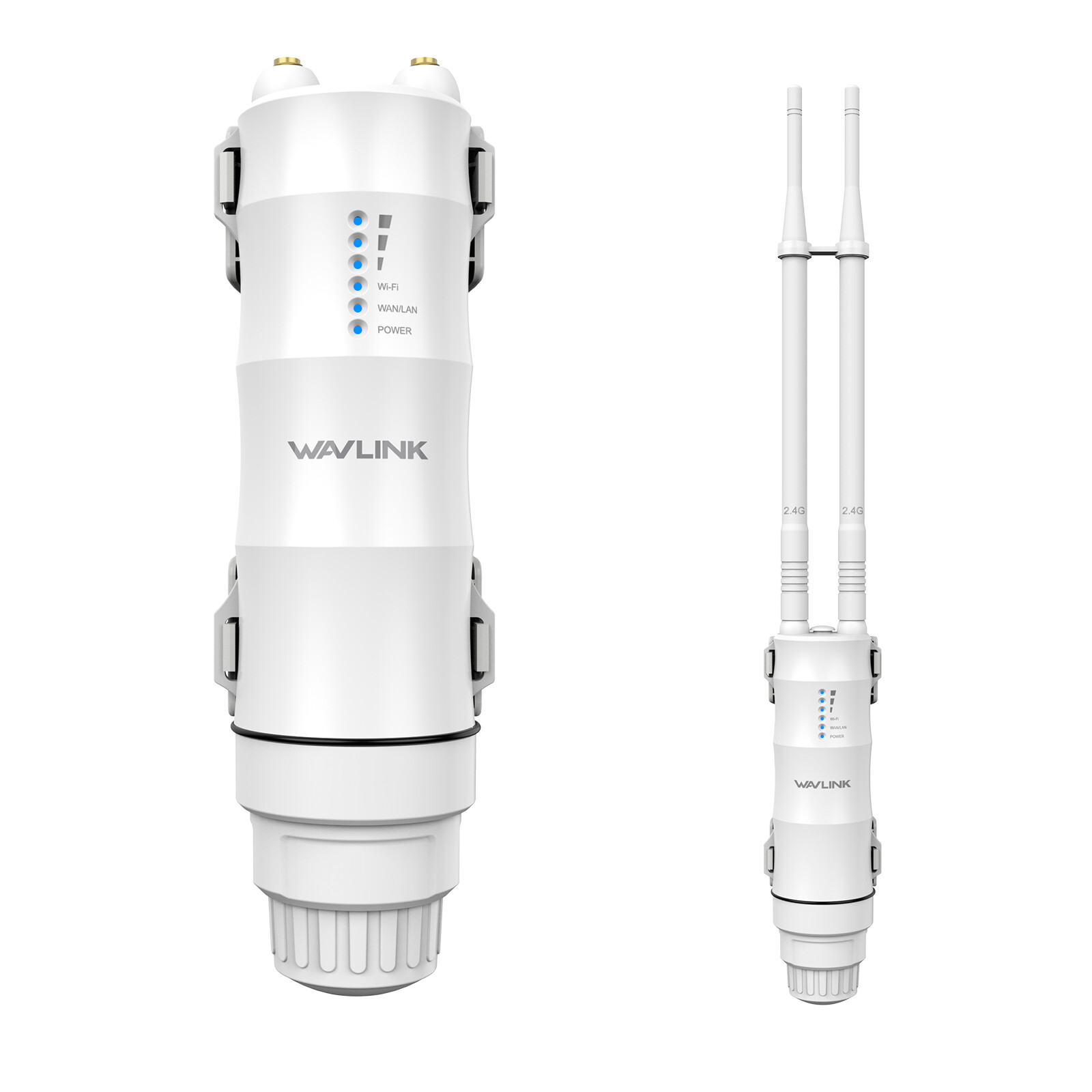

WAVLINK Outdoor Access Point, AC600 Dual Band Long-Range WiFi Router/Extender, 2*7dBi Omni Antennas,
IP67 Weatherproof, 2.4G 150Mbps+5G 433Mbps, Passive&Active PoE, Supports Fit/Fat AP, For Farm/Yard

Ultra-High Power & Extended Range - Engineered with a 1000mW high-power chipset and dual-polarized 7dBi antennas,
the WAVLINK Aerial HD2 Pro delivers stable coverage up to 100-150m and ensures reliable connectivity for 32-64 devices.
Imagine streaming HD security footage across a farm, enabling VoIP calls on a construction site, or providing Wi-Fi to a remote barn.
This industrial-grade solution keeps IoT cameras, smart sensors, and worker devices online effortlessly.

Versatile PoE Connectivity - Deploy your network like a pro with dual Power over Ethernet (PoE) support: Active PoE (802.3at/af) for safe,
auto-negotiated power delivery up to 100m via any standard Ethernet cable. Passive PoE compatibility for backward support with legacy systems.
Run a single cable to mount the router on rooftops, walls, or poles – no need for risky outdoor electrical work.
Note: The PoE converter is not waterproof, please install it indoors.

Weatherproof Enclosure & Robust Security - Survival-tested for -40°C to 50°C(-40 ~122°F), the IP67-rated housing repels dust, blizzards,
and monsoons – a must for coastal areas or mountain setups. Security-wise, it combines ultra-secure safeguards: 15KV ESD/4KV surge
shielding against lightning strikes common in open fields. WPA2 encryption supports isolating guest traffic from core operations.

Dual-Band Speed Optimization - Eliminate buffering with intelligent dual-band routing: 2.4G Band (150Mbps) penetrates thick walls
and foliage for long-range sensor networks or IoT irrigation controls. 5G Band (433Mbps) allows ultra-low latency for 4K surveillance feeds,
live drone telemetry, or video conferences in RVs. Unlike single-band outdoor APs, this prevents "signal wars" between devices.

Multiple Modes for Any Scenario - One device adapts to your evolving needs. Router Mode: Transform a wired connection into a high-speed
Wi-Fi hub for outdoor cafes or remote offices. AP Mode: Extend existing networks to sheds, docks, or solar farms using Ethernet backhaul.
Repeater Mode: Bounce weak signals across valleys or warehouses – crucial for rural homeowners battling spotty coverage. Fit AP Mode:
Controlled and managed by a WAVLINK AC Controller (sold separately), ideal for hotel chains, campus WiFi, or city-wide IoT deployments.

Specification
1. Model: WL-WN570HA1-B/Aerial HD2 Pro
2. Ports: 1 x WAN/LAN 100Mbps
3. Button: 1 x Reset(8s)
4. Status LED: 1 x Power, 1 x WAN/LAN, 1 x WiFi , 3 x Signal
5. Power Supply: DC 54V Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
6. Wireless Standard: IEEE 802.11 a/b/g/n/ac
7. Frequency Band/Speed: 2.4GHz(150Mbps), 5GHz(433Mbps)
8. Antenna: 2 x 7dBi Omni Directional Antennas
9. Wireless Security: WPA-PSK/WPA2-PSK encryption
10. Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
11. Operating Temperature: -40°C~50°C(-40°F ~122°F)
12. Distance: Outdoor 100-150m(Change with the Actual Environment)

In the Box
- 1 x AC600 Dual Band Outdoor Access Point
- 2 x Omni-directional Antennas
- 1 x RJ-45 Network Cable
- 1 x Power Adapter
- 1 x PoE Converter
- 1 x Main Body Holder
- 2 x Cable Ties
- 1 x Screw Fitting Kit
- 1 x Quick Start Guide

Warm Tips
1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3. Please install the product 2-3 meters above the ground for better performance.
4. Select the wireless network with a signal strength greater than 70% to get the most reliable Repeater

WAVLINK AC1200 Dual Band Outdoor Access Point, Outdoor Long Range Wi-Fi Extender with Active/Passive PoE,
WAN/LAN Port, IP67 Waterproof, Supports AP/Router/Repeater Modes, 2x7dBi High-Gain Antennas

AC1200 Dual-Band Range Extender: With Wi-Fi 5 technology at its core, the WAVLINK outdoor AP keeps you connected in stride with
speeds reaching up to 1200Mbps. Ideal for smooth HD streaming, online gaming, and bandwidth-heavy activities. Whether you're in the yard,
by the pool, or in a parking lot, relish dependable Wi-Fi 5 connectivity wherever you are.

Power Over Ethernet: Integrated Power over Ethernet (PoE) enables power and network data connections to be consolidated into
a single RJ-45 cable, allowing installation in areas without power outlets. It is equipped with passive PoE and also supports active PoE.
You can use and connect your own active switch.

IP67 Rated Weatherproof Case: The IP67-rated weatherproof and heat-resistant enclosure ensures continued operation in harsh outdoor environments,
including extremely cold, hot or constantly humid climates. It can withstand a wide range of humidity and temperature (-10°C to 50°C or -14°F to 122°F),
and has 15KV ESD and 6KV lightning protection.

Multiple Working Modes: It supports four working modes. The repeater mode extends the Wi-Fi coverage of an existing wireless network.
Router mode creates an instant private wireless network, enabling multiple devices to share it. AP mode converts a wired network to a wireless one.
AP+Repeater mode extends the range of a wireless network by using a repeater to amplify and relay the signal from an access point.

Outdoor Access Point: Providing ultra-fast networking speed of 300Mbps over 2.4G band and 867Mbps over 5G band,
the outdoor Wi-Fi repeater has a maximum coverage range of 200 meters, supports up to 32 devices. Simple settings enable wireless optimization to
improve the quality and effectiveness of link transmission. (Coverage may vary based on the actual WL-WN570HA2
2.Ports: 1 x WAN/LAN 100Mbps
3.Button: 1 x Reset(8s); Status LED: 1 x Power, 1xWAN/LAN, 1 x WiFi , 3 x Signal
4.Power Supply: DC 54V/0.3A Power over Ethernet(Passive), DC 48V Power over Ethernet(Active)
5.Wireless Standard: IEEE 802.11 a/b/g/n/ac
6.Frequency Band/Speed: 2.4GHz(300Mbps), 5GHz(867Mbps)
7.Antenna: 2 x 7dBi Omni Directional Antennas
8.Wireless Security: WPA-PSK/WPA2-PSK encryption
9.Unit Size(without antennas): 18cm x 5cm x 5cm/ 7.1in x 2in x 2in (L x W x H ); Antenna Length: 25cm/9.8in
10.Ethernet Cable Length: 100cm/39.4in
11.Power Adapter Cable Length: 120cm/47in
12.Operating Temperature: Temperature: 200m(Change with the Actual Environment)

In the Box
1x AC1200 Dual Band Access Point
2x 7dBi High-gain Antennas
1x RJ-45 Ethernet Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide

Warm Tips
1.The PoE converter is not waterproof, please install it indoors.
2.Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3.Please install the product 2-3 meters above the ground for better performance.
