AC600, Dualband Wavlink Brings Technology to Life

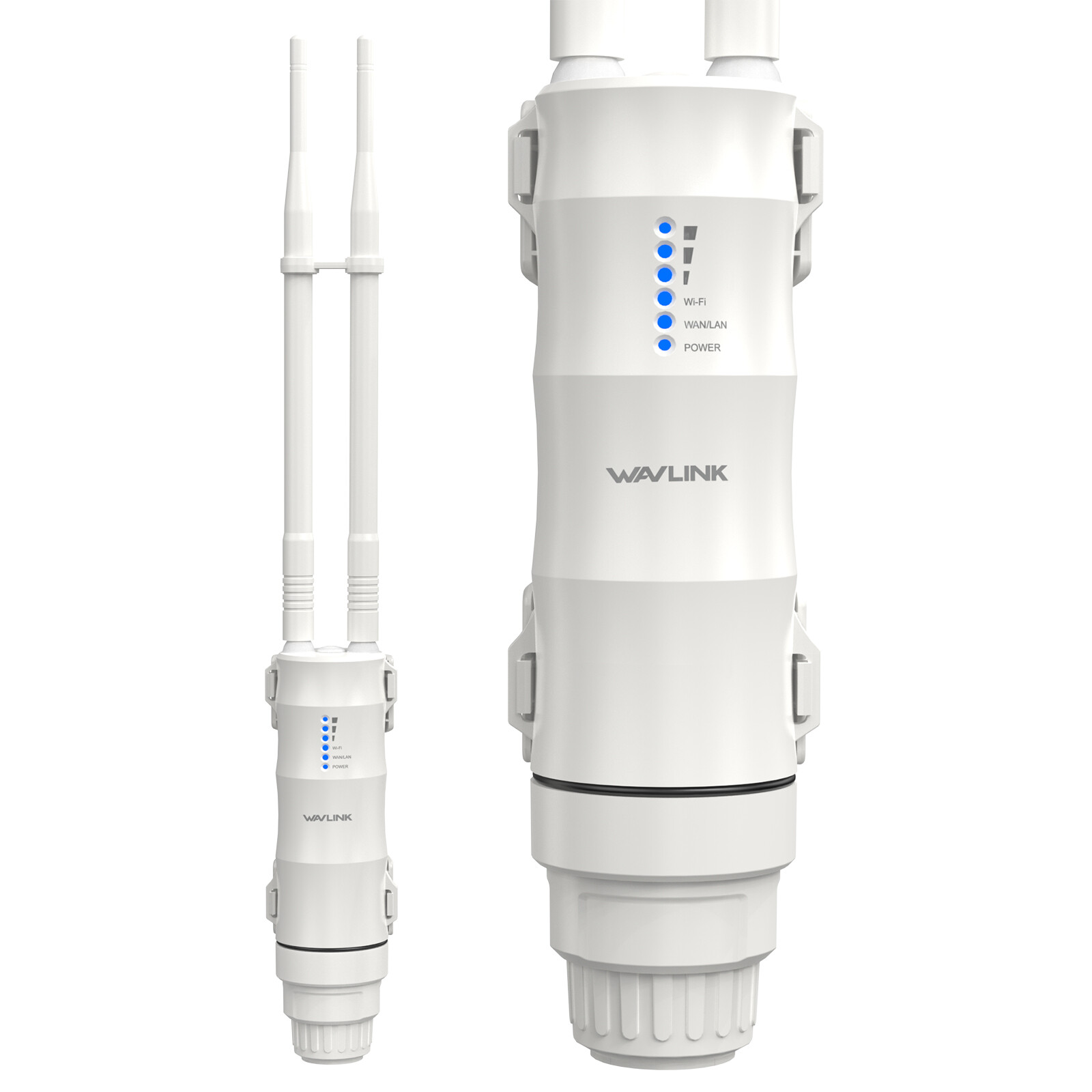

WN570HA1 is designed to provide WISP, CPE solutions and long-range wireless network solution for video surveillance
and transmission. With two omni-directional 12dBi dual-polarized antennas and strong transmit power of up to 1000mW,
it provides a compelling performance solution for small and growing business at a very affordable price and also provides
an efficient way to pick up and maintain a stable signal for a wireless network connection from long distance.
Withstand harsh climates
WN570HA1 has an IP65-rated weatherproof housing that ensures continued operation on harsh outdoor environments or
in climates of extreme cold, heat or continuous moisture. Note: The PoE part of the router is not waterproof.Easy Installation With Power over Ethernet(PoE)
By combing your power and data connection into a single cable, PoE simplifies the setup of the High power Outdoor WiFi
Access Point/Bridge. Combining power and network access into a single RJ-45 connection for the WN570HA1 allow you to
install the WN570HA1 in hard to reach location without worrying about running both power and Ethernet cables.
How Does It Work?
1.Slide the straps through the slots on the back of the AP/Router and tighten the straps around the hole.
2.Connect one end of an LAN cable to the PoE port of the provided Power injector and the other end of the LAN cable to the LAN port of the AP/Router.
3.Use another LAN cable to connect the LAN port of the power supply.
4.Plug the power adapter into a wall Temperature: -30°C~70°C(-22 ~158F)
2.Storage Temperature: -40°C~70°C(-40~158F)
3.Power Plug: US Plug
4.Voltage: 100-240V
5.Support 2.4 GHz 5GHz
6.Standard:802.11 ac/a/b/g/n
7.Maximum WLAN security with WPA2,WPA and WEP(128/64)
8.Distance:Outdoor 5000m(Change with the Actual Environment)
What’s in the package?
1 x WiFi AP/Router
2 x Antenna
1 x power Adapter
1 x POE Converter
1 x RJ-45 Networking Cable
1 x Main body holder
1 x Screw fitting
2 x Cable ties
1 x Quick Installation Guide
Note:
Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
The outdoor antenna should be installed at a height of 2 meters above the roof or in a high open place for better receptionAC1200, Dualband
WAVLINK Outdoor WIFI Extender- Bringing Technology to Life
The WN572HP3 is designed to provide for an excellent wireless network connection from long distance, definitely your worthy choice.
Dual Bands WiFi Repeater
With combined wireless speeds of up to 2.4GHz 300Mbps or 5GHz 867Mbps, simple tasks like sending e-mails or web browsing
can be handled by the 2.4GHz band while bandwidth-intensive tasks like online gaming or HD video streaming can be processed by the 5GHz.
Multiple Operation Modes
Mesh Extender Mode: Co-create a larger wireless network coverage with Wavlink mesh supported routers and share signal to multiple WiFi devices.
AP Mode: Convert a wired network to a wireless network, which allows you connect laptops, tablets, phones or other WiFi devices.
Repeater Mode: Extend WiFi coverage of an existing wireless network.
Withstand Harsh Climates
An IP65-rated weatherproof housing that ensures the 572HP3 continued operation on harsh outdoor environments or in climates
of extreme cold, heat or continuous moisture. Withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F).
Build in lightning arrester (15kV ESD), 4KV lightning protection.Note: The PoE part of the router is not waterproof.
Applicable for Large-coverage
Extend the network over long-distances (max 200 meters) with high gain 4x7dBi antennas that deliver a stable and fast
network connectivity to large yards and patios. So, it can boost Wi-Fi coverage up to max A=πr^2(r=200m)= 125,600m^2(1350,000 sq.ft),
which is over 135 times larger than others' only 10,000 sq.ft coverage!
Strengthening Waterproof Parts
In order to avoid the water leakage issue the latest version 572HP3 has specially improved the key parts, coated with waterproof glue,
greatly strengthening the waterproof protection.
Installation note：
-Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
-The outdoor antennas should be installed at a height of 2 meters above the roof or in a high open place for better 2.4GHz & 5GHz, speed up to 1,200 Mbps
Interfaces: 1x 10/100/1,000Mbps LAN; 1x 10/100/1,000Mbps WAN
Antennas: 4x 7dBi omni Antennas
Operation modes: Repeater, AP, Mesh Extender
Weatherproof case: 15KV ESD and 4KV Lightning Protection
Security: WPA2-PSK,WPA 2/ WPA 3 Mix
LEDs: 7x Status LED Indicators
Power adapter: 100~ 240V/50~60Hz; DC 24V (Passive PoE)
Installation note：
-Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
-The outdoor antennas should be installed at a height of 2 meters above the roof or in a high
open place for better reception.
Package Included:
4x Omni antenna
1 x Wi-Fi AP
1 x POE Converter
1 x RJ-45 Networking Cable
1 x Power Adapter
1 x Main body holder
2 x Cable ties
1 x Quick Installation
