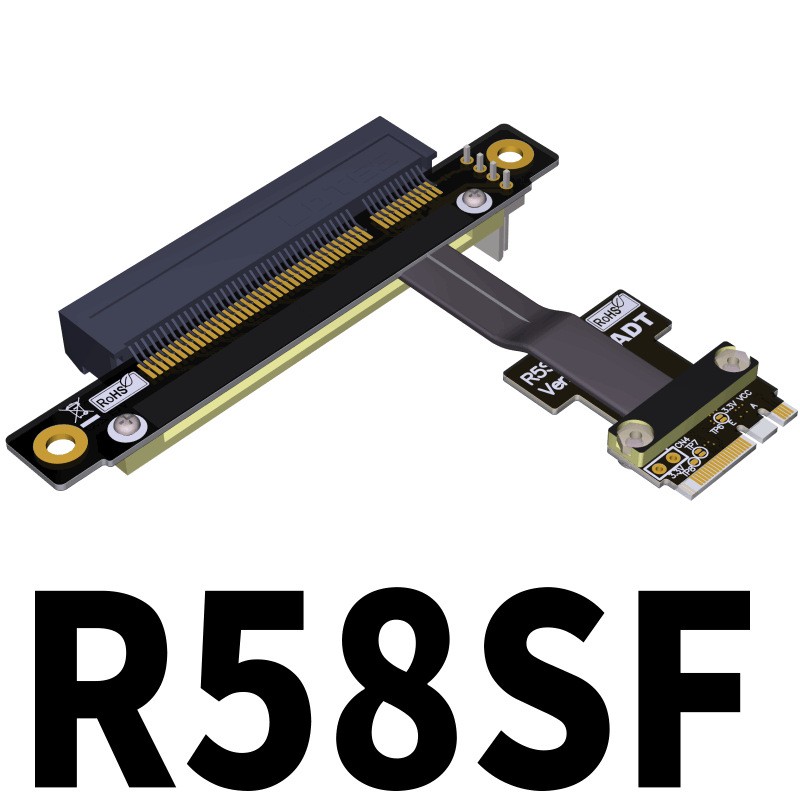

ADT R58SF M.2 Key A.E WiFi to PCIe X8 Riser Extension Cable PCIe3.0 x1 Gen3 8Gbps Custom Length 3-100cm
ADT factory direct M.2 Key A.E WiFi to PCIe x8 riser cable, PCIe 3.0 Gen3 8Gbps bandwidth. For professional engineer testing only. 100% full electrical inspection before shipment. Custom cable length available from 3cm to 100cm.
Full Product DescriptionBrand & Model
- Brand: ADT
- Model: R58SF (R58 Series)
- Product Name: M.2 Key A.E WiFi Interface to PCI-E X8 Riser Extension PCIe 3.0 x1 Gen3, up to 8G/bps
- Cable Length: 3cm ~100cm, custom length supported
- Cable Thickness: 1.4mm, semi-rigid flat cable, bendable for installation
- Application: Connect PCIe 8x SSD storage card to motherboard M.2 WiFi slot
- Power Requirement: Included SATA power adapter cable, 12V power must be connected for normal operation
- Factory Test: 100% full electrical testing before shipping
Key Advantages
✅ Premium Cable & ConnectorAdopts imported German patented flat cable + Taiwan-made connectors, stable full-speed PCIe3.0 transmission at 8Gbps. For lengths ≤60cm, full PCIe3.0 speed is guaranteed with low impedance design.
✅ Via-Free Differential Signal DesignEliminates parasitic capacitance & inductance issues that cause signal attenuation and interference. Prevents CAF micro-short circuit for long service life.
✅ High Quality PCB & Gold FingerPrecision PCB manufacturing with 1oz thick copper. High-content gold-plated edge fingers for excellent conductivity. Reduces oxidation, rising impedance, BSOD and system crash risks.
✅ Heavy-Duty Reinforced Construction3mm thick PCB pads at solder joints. Secured with screws & hex lock nuts. Strong pull resistance, anti-interference, prevents broken wires or pad lifting. Flat cable can be bent without performance loss.
✅ Low-profile Optimized PCB LayoutSlim PCB design avoids GPU blocking. Extended reinforced PCB for easier assembly and lower damage risk.
✅ Advanced EMI ShieldingNo bulky metal shield. Uses cutting-edge EMI conductive polymer shielding on flat ribbon cable. Fully covers each differential pair to suppress electromagnetic interference, minimize performance degradation, and keep the cable lightweight.
Package Contents
1 × ADT R58SF M.2 to PCIe x8 Riser Cable1 × SATA power adapter cable (required for 12V power supply)
Important Purchase Notes
THIS ITEM IS FOR PROFESSIONAL ENGINEER TESTING ONLY. NOT FOR GENERAL CONSUMER USE.
- Verify the installation direction before plugging in. Reverse or offset insertion may burn your hardware. Hold the socket firmly when inserting; do not apply excessive force to avoid pin damage.
Do NOT bend or pull the cable within 2cm from PCB solder joints on both ends.
- Signal loss occurs on all extension cables. Motherboards & hardware have different signal drive capabilities. Our lab test results cannot guarantee identical performance on your equipment. Do not purchase if you require zero signal loss.
- Older hardware (over 3 years) suffers from natural oxidation & aging. Adding this riser further reduces stability. Not compatible with equipment older than 3 years.
- This is custom manufactured product. Non-returnable & non-refundable.
- Sample Test Recommended: Buy 1~2 samples first for validation before bulk procurement.
- Cable length definition: Listed length refers only to the flat cable segment, excluding PCB boards and connectors. Add ~4cm for total overall length including PCBs & connectors.
FAQ
Q: How about cable quality? Does it have shielding?A: No solid metal shielding. It adopts advanced EMI conductive polymer shielding technology for flat ribbon cable. The conductive polymer fully wraps each cable to block incoming & outgoing electromagnetic signals, reduce interference and performance drop, while keeping the cable lightweight.
Q: Cable thickness? Is it flexible? Can it be bent?A: Cable thickness is 1.4mm. It is semi-rigid, bendable for installation without affecting performance.
