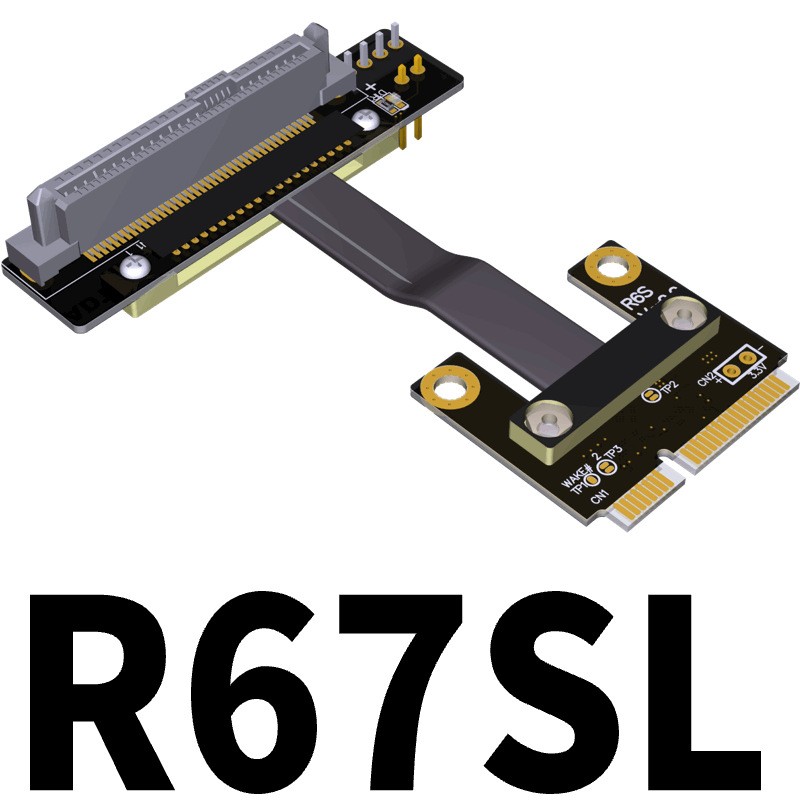

Product Model: R67SL (R67 Series)Brand: ADT

Product Overview

This ADT R67SL riser cable converts M.2 WiFi slot to PCIe x16 interface, supporting PCIe 3.0 x1 Gen3 bandwidth up to 8Gbps. Factory direct sale, every unit is 100% fully tested before shipment for reliable performance. Cable length customizable from 3cm to 100cm.

Key Features

1. Premium Imported Cable & ConnectorAdopts German patented imported cable and Taiwan-made connectors, delivering stable full-speed PCIe 3.0 8Gbps transmission. Low cable impedance; full PCIe 3.0 speed supported for lengths within 60cm.
2. Differential Signal Design Without ViasEliminates signal attenuation & interference caused by parasitic capacitance and inductance, no CAF micro-short circuit issues, long service life.
3. High-Grade PCB & MaterialsPrecision PCB manufacturing with 1oz thick copper. Gold-plated fingers with sufficient gold content for great conductivity. Reduces blue screen & system crash risks caused by oxidation, rust and rising impedance.
4. Robust Structure & Reinforced Soldering Points3mm thick PCB gaskets protect metal solder joints, secured with screws and hex nuts. Tensile-resistant, anti-interference, prevents broken wires or lifted pads. The cable is bendable without affecting normal use.Cable thickness: 1.4mm, relatively rigid but bendable.
5. Low-profile PCB with Optimized LayoutLow-height PCB design will not block graphics cards. Extended reinforced layout for easier installation and lower damage risk.
6. Advanced EMI ShieldingNo metal shielding layer. Equipped with advanced EMI shielding conductive polymer on flat cable. The polymer fully covers each cable to block electromagnetic interference ingress & emission, minimizing signal interference and performance degradation while keeping the extender lightweight.

Compatibility Notice

• This riser cable only supports M.2 WiFi interface, NOT for WWAN (3G network card) or mSATA (SSD) interface.
• BIOS whitelist limitation exists on HP & Lenovo laptops, which may prevent your network card from working. Please verify compatibility of your laptop and network card BEFORE purchase.
• Not compatible with equipment older than 4 years due to aging and oxidation of electronic components.
• Half-height bracket comes as standard. Leave a message "Include full-height bracket" during checkout if you need a free full-height metal bracket for full-height PCIe slots.

Package Accessories

Comes with a complimentary SATA power adapter cable. 12V power supply requires this SATA cable to be M.2 WiFi to PCIe x16

PCIe Version: PCIe 3.0 x1 Gen3

Bandwidth: 8Gbps

Cable Thickness: 1.4mm

Cable Length: Customizable 3cm ~ 100cm

Note: The listed cable length only measures the flexible cable part, excluding PCB and connectors. Add approx 3cm for total length including PCB and connectors.

• Bracket: Standard half-height; full-height bracket available upon request for free

FAQQ: Is the cable flexible and bendable?

A: Cable thickness is 1.4mm, relatively stiff, but bendable, and bending will not affect usage.

Q: Does it fit full-height PCIe slots?

A: Default is half-height bracket. Write "Include full-height bracket" in buyer notes at checkout, we will send a free full-height bracket to fit full-height slots.

Q: Does it need external power supply?

A: This product has well-designed power circuit, no extra external power is required for basic operation.

Note: SATA power cable included in package must be connected for 12V power supply.

Q: Why do cheap risers crash or blue screen after less than one year?

A: Same PCIe specification, but quality varies by material and design. Poor PCB material and bad design may cause CAF micro-short circuit under harsh environment and trigger system crash. Our ADT risers use high TG160 PCB material and fine craftsmanship to greatly lower failure risk.

Important Purchase Notes (Must Read Before Buying)

1. Check connector orientation before plugging in. Incorrect insertion will burn your device. Hold the socket firmly while inserting, do NOT use excessive force to avoid breaking socket pins.
2. Motherboards and devices have different signal driving capabilities. Signal loss is inevitable for any extension cable. Do NOT buy if you have ultra-high strict requirements for signal quality.
3. This item is intended for professional engineers only. Do NOT purchase if you lack DIY installation capability.
4. Compatibility risks exist for all adapter cables. You must verify compatibility with your motherboard and device system by yourself. Do NOT purchase if you cannot confirm compatibility.
5. This is custom product, non-refundable and non-returnable. Please fully confirm suitability before placing order.
6. For bulk procurement: Please order 1~2 samples first for testing and validation before mass purchase.
