ADT R17 Series PCIe 4.0 U.2 to PCI-E X1 Extension Cable Gen4 16Gbps for Industrial Server High-Speed PCIe Signal Transmission, Custom Length 5~100cm
Subtitle
Factory Direct | 100% Power-On Tested | R17SF 4.0 / R17SL 4.0 / R17SL-TU 4.0 | For Professional Engineer Product Testing
Product DescriptionProduct Overview
ADT factory direct sale. Reliable performance with excellent market reputation. Every cable undergoes 100% full power-on inspection before shipment.
Brand: ADT

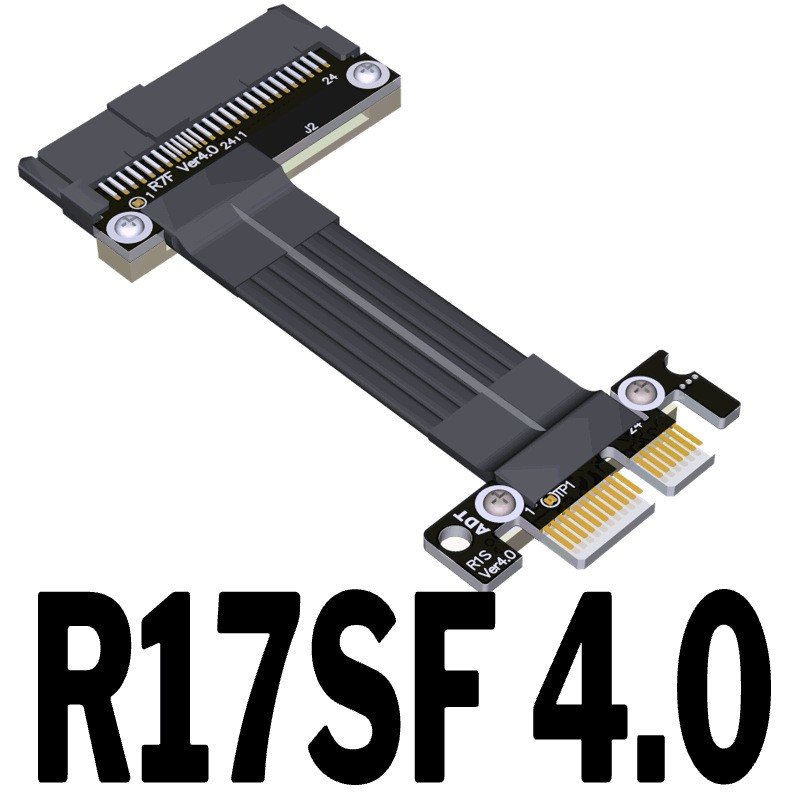

Model Series: R17 Series (R17SF 4.0, R17SL 4.0, R17SL-TU 4.0)
Product Name: U.2 to PCI-E X1 Connection / Extension Cable
Cable Length: 5cm ~ 100cm
Speed & Bandwidth: PCIe4.0 x1 Gen4, up to 16Gbps
Real-world test speed: Around 1400MB/s read & write under PCIe 4.0; Around 700MB/s read & write under PCIe3.0
Application: Industrial control & server equipment connection, high-speed PCIe signal transmission
Purchase Restriction: For purchase and use by professional engineers only. Not suitable for general-purpose use. General buyers please DO NOT purchase.
Sourcing Recommendation: Please order 1~2 samples first for testing and validation before bulk procurement.
Important Notice: This product has many compatibility risks. Incorrect assembly or improper operation may burn your hardware. Only for professional engineers. This is a custom-made product, non-refundable and non-returnable. Please fully confirm before placing your order.
Length Specification: The listed cable length refers only to the flexible cable part, excluding PCB and connectors. Add approx. 3cm if PCB and connectors are included. For example, a 5cm cable will have a total overall length of about 8cm.
Product Advantages
- High-Speed Shielded CableADT self-developed 4th-generation shielded high-speed flat cable with premium quality connectors. Supports stable 8Gbps PCIe4.0 x1 high-frequency transmission.
- Custom Length & Low ImpedanceCustom lengths available from 3cm to 100cm. Low-impedance cable maintains full PCIe4.0 speed stably for lengths up to 60cm.
- Via-Free Differential Signal DesignEliminates parasitic capacitance, parasitic inductance and related signal attenuation & interference. Prevents CAF micro-short circuit issues for long service life.
- High-Grade Precision PCBHigh-frequency low-loss PCB with high TG substrate. Copper thickness upgraded to 1oz. Gold-plated edge fingers with sufficient gold plating for superior conductivity. Reduces oxidation and rising resistance that cause system crashes or audio noise.
- Reinforced Soldering Joint Protection3mm thick PCB gaskets protect metal soldering points, secured with screws and hex lock nuts. Tensile resistant, anti-interference, prevents wire breakage and pin drop-off.
- Low-profile & Enlarged PCB DesignLow-profile PCB avoids physical conflict with graphics cards. Enlarged & extended PCB design simplifies installation and lowers risk of damage.
FAQ
Q: What is the cable quality? Does it have shielding?A: It adopts metal-layer shielding with advanced EMI shielding conductive polymer material for flat ribbon cable.
This technology fully covers every wire with conductive polymer EMI shielding,
blocking incoming and outgoing electromagnetic radiation. It minimizes interference and performance degradation while keeping the cable lightweight.
Q: How thick is the cable? Is it flexible and bendable?A: The flat cable is only 1.3mm thick. It is soft and can be bent freely without affecting normal usage.
Important Purchase & Installation Notes
- Correct Installation Direction: Check orientation carefully before plugging in. Reversed or misaligned insertion may burn your hardware. Hold the device connector firmly during insertion, avoid breaking connector pins from excessive force. Do NOT bend or pull the cable within 2cm of soldering joints on both ends.
Signal Loss Disclaimer: Motherboards and hardware have different signal driving capabilities. Our internal test results may differ from your setup. Signal loss always occurs with extension cables.
Do not buy if you require flawless, perfect signal performance.
Hardware Age Limitation: Motherboards and other electronic hardware degrade and oxidize over time. Older hardware will become less stable with extension cables.
Not compatible with hardware older than 4 years. Do not purchase for aged devices.
- Intended Use: Designed for purchase by professional engineers for product testing only. Not intended for other applications.
Package Contents
1 × ADT U.2 to PCIe x1 Riser Extension Cable (selected custom length)
