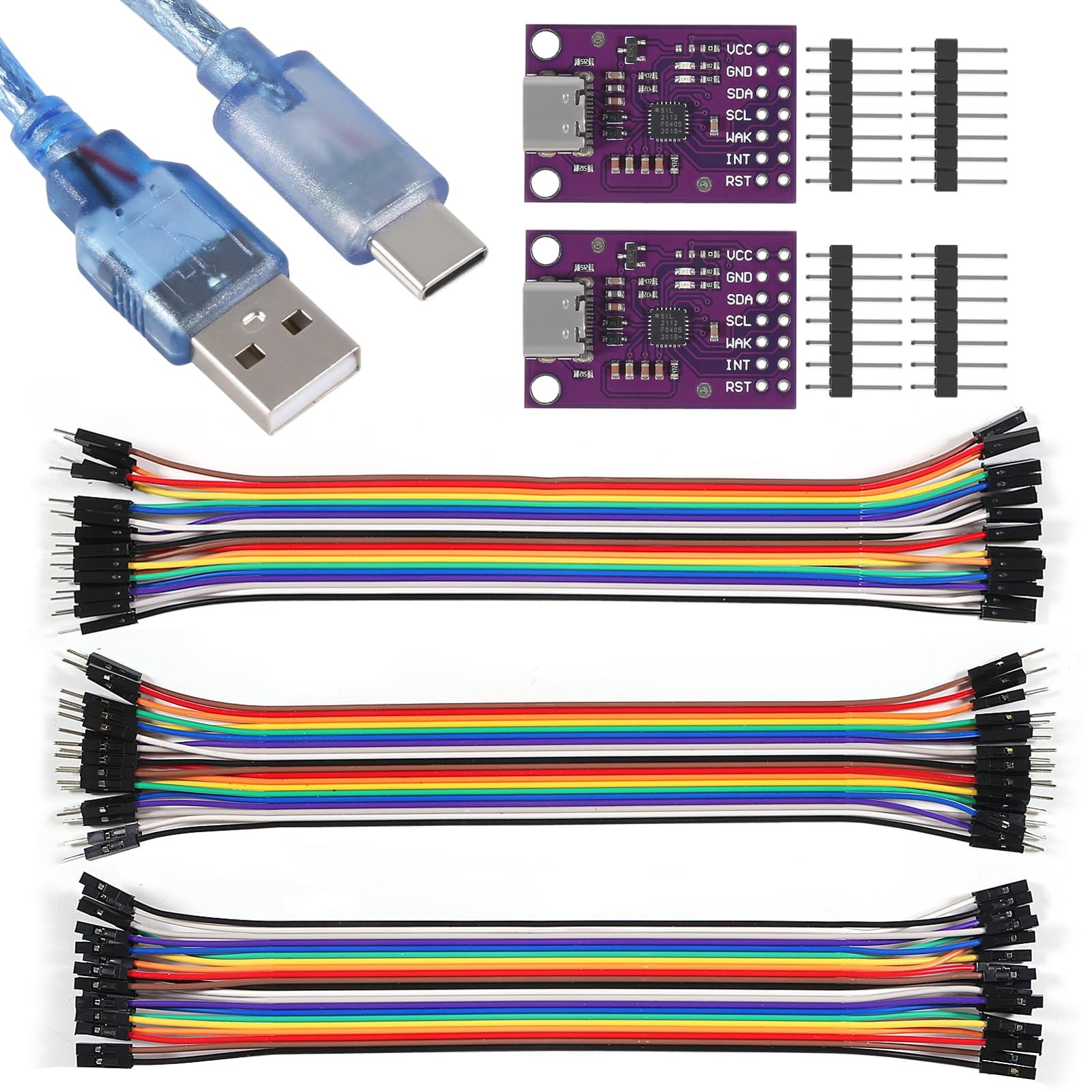

AITRIP Type-c CP2112 Adapter, 2PCS debug Board USB to I2C...

• The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins.
• 60pcs （20 cm /8-inch）Multicolored Dupont Wire 20pin Male to Female, 20pin Male to Male, 20pin Female to Female Breadboard Jumper Ribbon Cables Kit Compatible with Arduino Projects
• Supports HID to SMBus library API for Windows, Mac and Linux for rapid application development
• Applications: portable controllers, USB dongles, data logging for arduino
• Package：2PCS type-c CP2112 debug board;1PCS type-c USB cable; 20CM 20pin Male to Female, 20CM 20pin Male to Male, 20CM 20pin Female to Female Breadboard Jumper

Description:

Single-Chip HID USB to SMBus Master Bridge

Integrated USB transceiver; no external resistors or crystal

required

SMBus master device

GPIO can be configured as Input/Output and Open-Drain/

Push-Pull

512 Byte SMBus data buffer

Integrated 194 Byte One-Time Programmable ROM for

storing customizable product information

On-chip power-on reset circuit

On-chip voltage regulator: 3.45 V output

USB Peripheral Function Controller

USB Specification 2.0 compliant; full-speed (12 Mbps)

USB Suspend states supported via SUSPEND

and /SUSPEND pins

HID Interface

Standard USB class device requires no custom driver

Supported on Windows, Mac, and Linux

Open access to interface specification

Windows, Mac, and Linux HID-to-SMBus Libraries

APIs for quick application development

SMBus Configuration Options

Configurable Clock Speed

Device Address: 7-bit value that is the slave address of the

CP2112. The device will only ACK this address, but will not

respond to any read/write requests

Read/Write Timeouts

SCL Low Timeout

Retry Counter Timeout

GPIO Interface Features

8 GPIO pins with configurable options

Usable as inputs, open-drain or push-pull outputs

Configurable clock output for external devices

48 MHz to 94 kHz

Toggle LED during SMBus reads

Toggle LED during SMBus writes

Supply Voltage

Self-powered: 3.0 to 3.6 V

USB bus powered: 4.0 to 5.25 V

I/O voltage: 1.8 V to VDD

Ordering Part Number

CP2112-F03-GM

Temperature Range: –40 to +85 °C

Package：

2PCS  type-c CP2112 debug board

1PCS type-c USB cable

20CM 20pin Male to Female

20CM 20pin Male to Male

20CM 20pin Female to Female Breadboard Jumper
