AITRIP Type-c CP2112 Adapter, 2PCS CP2112 debug Board USB to I2C Communication Module to SMBus I2C Communication with Wires for arduino
Product Details

• Publisher: AITRIP
• Publication date: 0

• The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins.
• 60pcs （20 cm /8-inch）Multicolored Dupont Wire 20pin Male to Female, 20pin Male to Male, 20pin Female to Female Breadboard Jumper Ribbon Cables Kit Compatible with Arduino Projects
• Supports HID to SMBus library API for Windows, Mac and Linux for rapid application development
• Applications: portable controllers, USB dongles, data logging for arduino

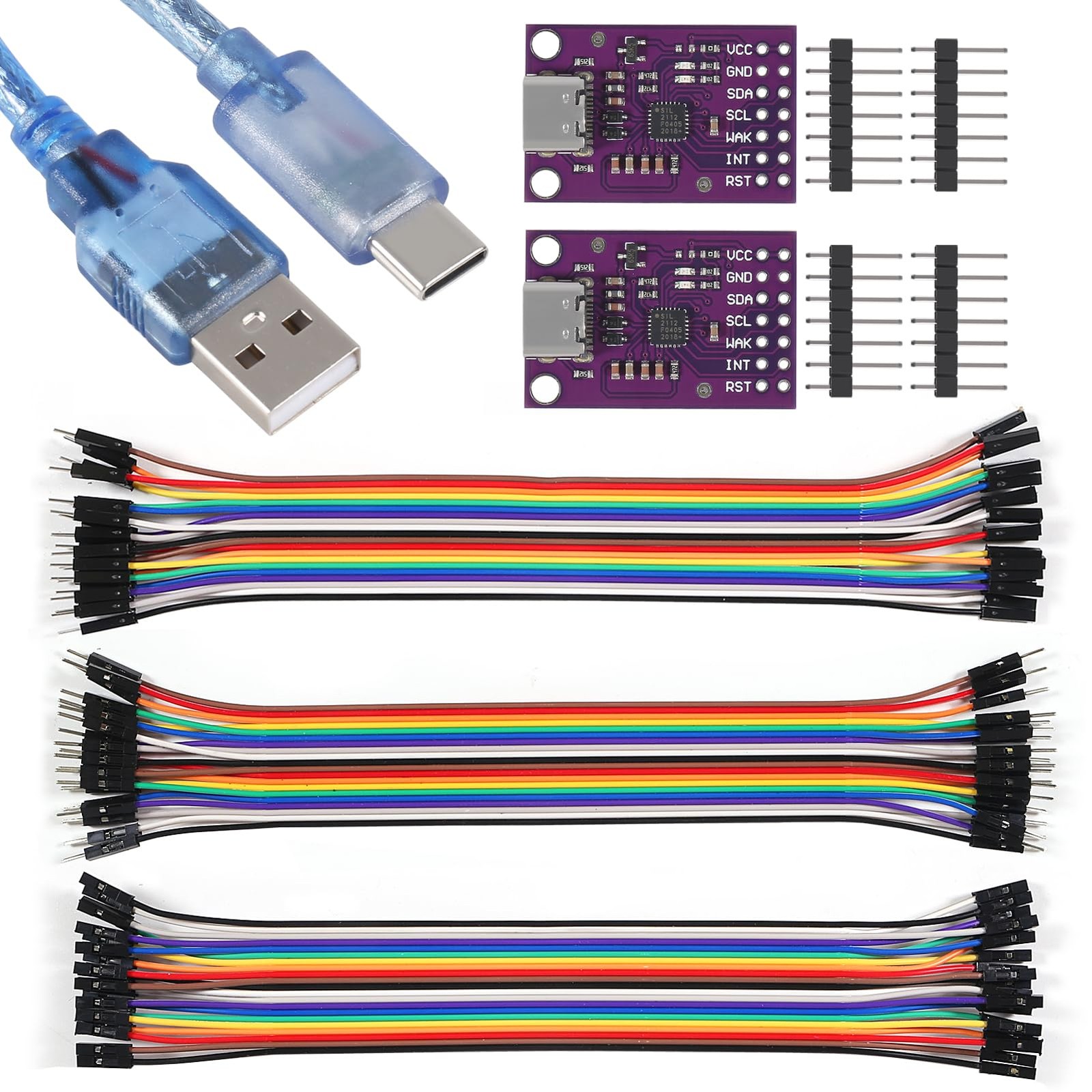

• Package：2PCS type-c CP2112 debug board;1PCS type-c USB cable; 20CM 20pin Male to Female, 20CM 20pin Male to Male, 20CM 20pin Female to Female Breadboard Jumper

Description:Single-Chip HID USB to SMBus Master BridgeIntegrated USB transceiver; no external resistors or crystalrequiredSMBus master deviceGPIO can be configured as Input/Output and Open-Drain/Push-Pull512 Byte SMBus data bufferIntegrated 194 Byte One-Time Programmable ROM forstoring customizable product informationOn-chip power-on reset circuitOn-chip voltage regulator: 3.45 V outputUSB Peripheral Function ControllerUSB Specification 2.0 compliant; full-speed (12 Mbps)USB Suspend states supported via SUSPENDand /SUSPEND pinsHID InterfaceStandard USB class device requires no custom driverSupported on Windows, Mac, and LinuxOpen access to interface specificationWindows, Mac, and Linux HID-to-SMBus LibrariesAPIs for quick application developmentSMBus Configuration OptionsConfigurable Clock SpeedDevice Address: 7-bit value that is the slave address of theCP2112. The device will only ACK this address, but will notrespond to any read/write requestsRead/Write TimeoutsSCL Low TimeoutRetry Counter TimeoutGPIO Interface Features8 GPIO pins with configurable optionsUsable as inputs, open-drain or push-pull outputsConfigurable clock output for external devices48 MHz to 94 kHzToggle LED during SMBus readsToggle LED during SMBus writesSupply VoltageSelf-powered: 3.0 to 3.6 VUSB bus powered: 4.0 to 5.25 VI/O voltage: 1.8 V to VDDOrdering Part NumberCP2112-F03-GMTemperature Range: –40 to +85 °CPackage：2PCS type-c CP2112 debug board1PCS type-c USB cable20CM 20pin Male to Female20CM 20pin Male to Male20CM 20pin Female to Female Breadboard Jumper
