Description
⚠️ Please Note
- This motherboard supports Intel 12th, 13th, and 14th Gen Core processors only. It is NOT compatible with 11th Gen or earlier Intel Core processors.
- Overclocked memory speeds (OC) are not covered under standard support and are used at the user's own risk.

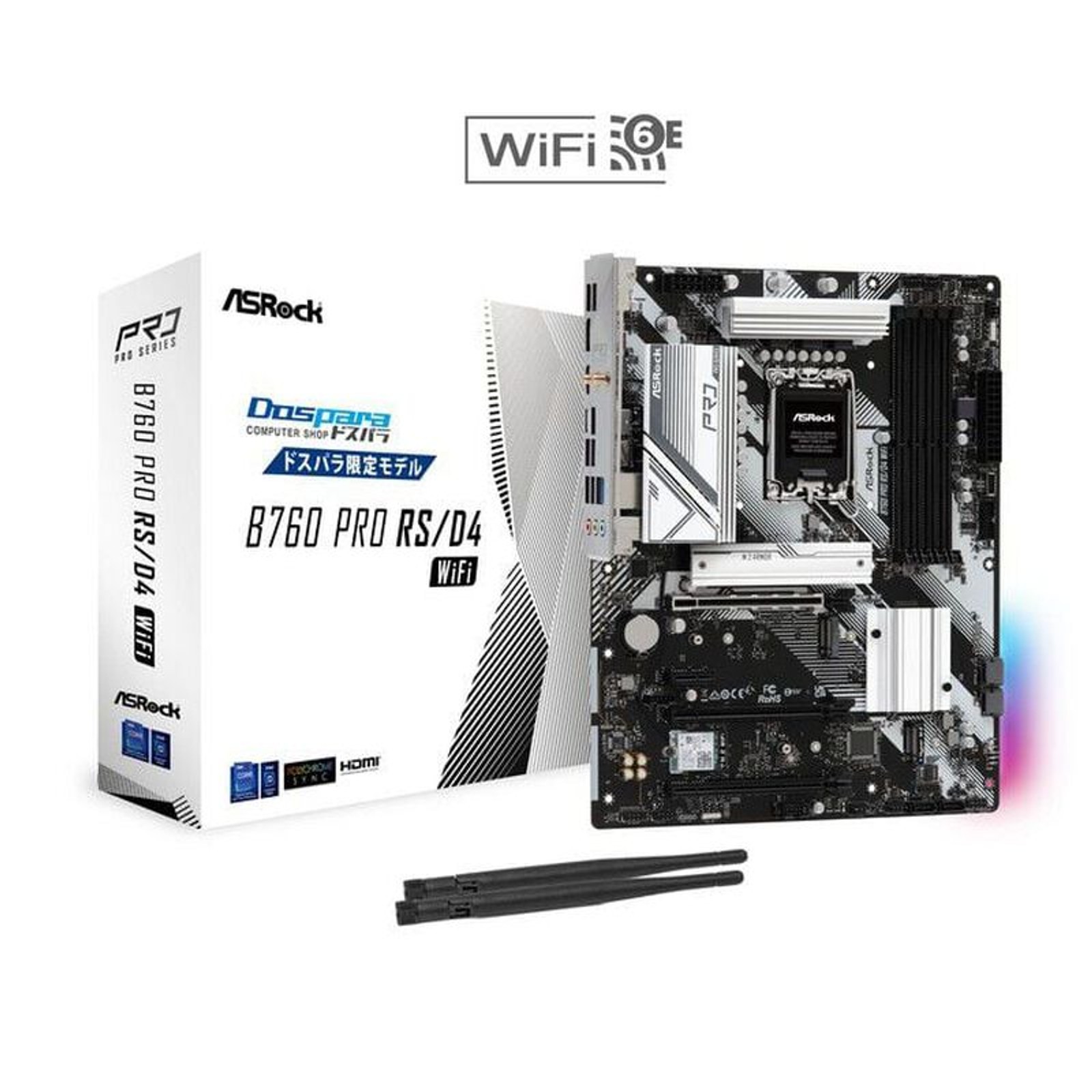

ASRock B760 Pro RS/D4 WiFi ATX Motherboard
✨ Overview
The ASRock B760 Pro RS/D4 WiFi is an ATX motherboard built on the Intel B760 chipset, designed for Intel 12th, 13th, and 14th Gen Core processors in the LGA1700 socket. It combines high-speed DDR4 memory support, integrated WiFi 6E, Bluetooth 5.3, and 2.5 Gigabit LAN into a feature-rich platform for desktop PC builds.
⭐ Key Features
- 🔌 Supports Intel 12th, 13th & 14th Gen Core processors via LGA1700 socket
- 📶 Integrated WiFi 6E (IEEE 802.11a/b/g/n/ac/ax) and Bluetooth 5.3 for fast wireless connectivity
- 🌐 2.5 Gigabit LAN port powered by Dragon RTL8125BG for high-speed wired networking
- 💾 Three M.2 slots (all PCIe Gen4) plus four SATA 6Gb/s ports for flexible storage expansion
- 🎮 2-Way AMD CrossFire multi-GPU support for graphics flexibility
- 🎵 Realtek ALC897 7.1-channel HD Audio with Nahimic Audio enhancement
- 💡 ASRock POLYCHROME SYNC RGB lighting for system customization
📋 Specifications
- 🏷️ Chipset: Intel B760
- 🔩 Socket: LGA1700
- 📐 Form Factor: ATX — 305 × 244 mm (12.0 × 9.6 in)
- 🧠 Memory: 4× DDR4 DIMM slots, max 128 GB, Dual Channel
- ⚡ Memory Speed: Up to DDR4-5333+ (OC) / DDR4-3200/2933/2666/2400 (standard)
- 🖥️ Video Output: 1× DisplayPort 1.4, 1× HDMI 2.1 (requires CPU with integrated graphics)
- 📦 Expansion: 1× PCIe 4.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x1 (x16 form), 1× PCIe 3.0 x1
- 💿 Storage: 3× M.2 (PCIe Gen4), 4× SATA 6Gb/s (RAID 0/1/5/10)
- 🔗 USB (Rear): 1× USB 3.2 Gen1 Type-C, 5× USB 3.2 Gen1 Type-A, 2× USB 2.0 Type-A
- 🔗 USB (Front Header): 1× USB 3.2 Gen2 Type-C, 2× USB 3.2 Gen1, 2× USB 2.0
- 🖱️ Compatible OS: Windows 11 (64-bit), Windows 10 (64-bit)
📦 What's in the Box
- 🗂️ User Manual
- 🔌 SATA 6Gb/s Cable × 2
- 📡 WiFi Antenna × 2
- 🔧 M.2 Screw Set
