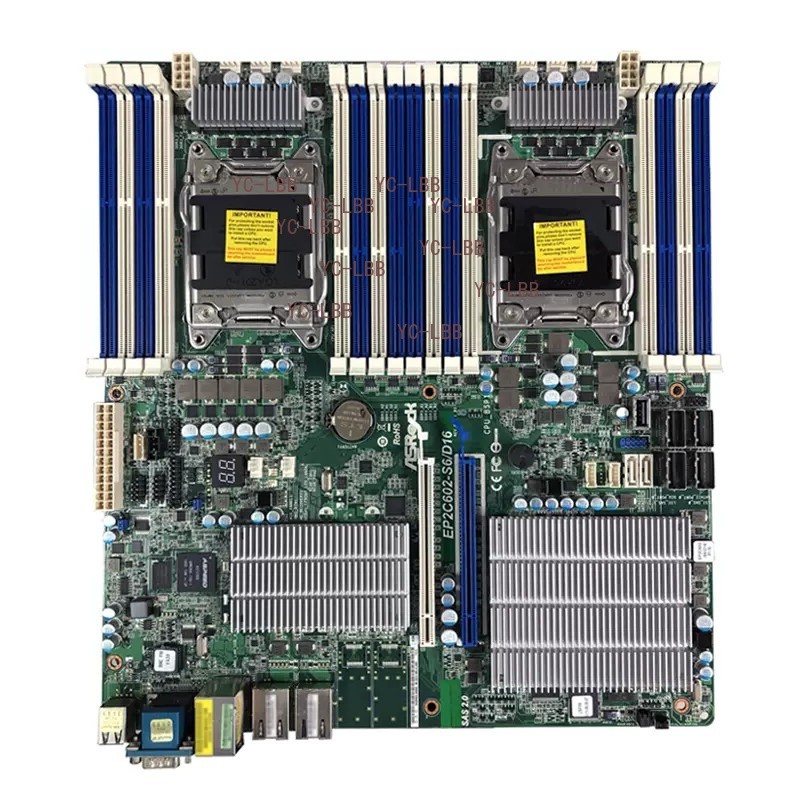

Product specifications Physical information version - SSI EEB size - 12'' x 13'' (30.5 cm x 33 cm) Processor system CPU - Intel®Xeon®processor E5-1600*/2600/4600 & v2 series
- Supports Hyper-Threading Technology
*E5-1600 supports single socket. slot - Dual Socket R (LGA2011)*
*Please use narrow type CPU Cooler Power supply design - 5 +1 Power Phase Design Chipset - Intel®C602 System memory capacity - 16x 240-pin DDR3 DIMM slots
- Support up to 512GB DDR3 R/LR DIMM ; 128GB ECC/non-ECC unbuffered UDIMM type - Quad Channel DDR3 memory technology
- Supports DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM voltage - 1.5V, 1.35V Expansion slots PCIe 3.0 x 16 - 2 slots : PCIE1/PCIE2 : x16 mode storage SATA controller - Intel®C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s (from 2x mini SAS 8087 connector), support RAID 0, 1, 5, 10 SAS controller - LSI 2308: 8 x SAS2 6Gbps ( from 2x mini SAS 8087 connector) Ethernet interface - Gigabit LAN 10/100/1000 Mb/s Network Controller - 1x Intel®i350 (GLAN)
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Manage features BMC controller - ASPEED AST2300 IPMI independent GLAN - 1 x Realtek RTL8211E for dedicated management LAN function - Watch Dog
- NMI display controller - ASPEED AST2300 Memory - DDR3 16MB Output interface - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Rear panel I/O connectors VGA interface - 1 x D-Sub USB 2.0 interface - 4 Network interface - 2 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial - 1 (COM1) Built-in interface Serial port connection socket - 1 (COM2) Auxiliary panel connector - 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM interface - 1 Thermal sensing interface - 1 IPMB interface - 1 buzzer - 1 Fan connector - 8 x 4-pin ATX power supply - 1 (24-pin) + 2 (8-pin) USB 2.0 header - 2 (each support 2 USB 2.0) USB 2.0 connector type A - 1 Front panel - 1 loudspeaker - 1 Dr. Debug LED indicator - 1 System BIOS BIOS type - 64Mb AMI UEFI Legal BIOS BIOS features - Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash Hardware monitoring temperature - CPU Temperature Sensing
- System Temperature Sensing fan - CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control voltage - Voltage Monitoring: CPU1/2, DRAM1/2, VCCM, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB Supported operating systems operating system Microsoft
- Windows®2003 32/64 (IDE)
- Windows®2003 R2 32/64 (IDE/AHCI)
- Windows®2008 32/64
- Windows®2008 R2
- Windows®2012
- Windows®2012 R2 64
Linux
- Redhat Enterprise Linux Server 5.5 32/64 ( AHCI)
- Redhat Enterprise Linux Server 6.0 32/64 (AHCI)
- Redhat Enterprise Linux Server 6.4 32/64
- CentOS 5.5 32/64 (AHCI)
- CentOS 6.0 32/64 (AHCI)
- SUSE 10.3 32/64 (AHCI)
- SUSE 11.1 32/64 (AHCI)
VMware
- VMware ESXi 5.1 Usage environment temperature - Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
