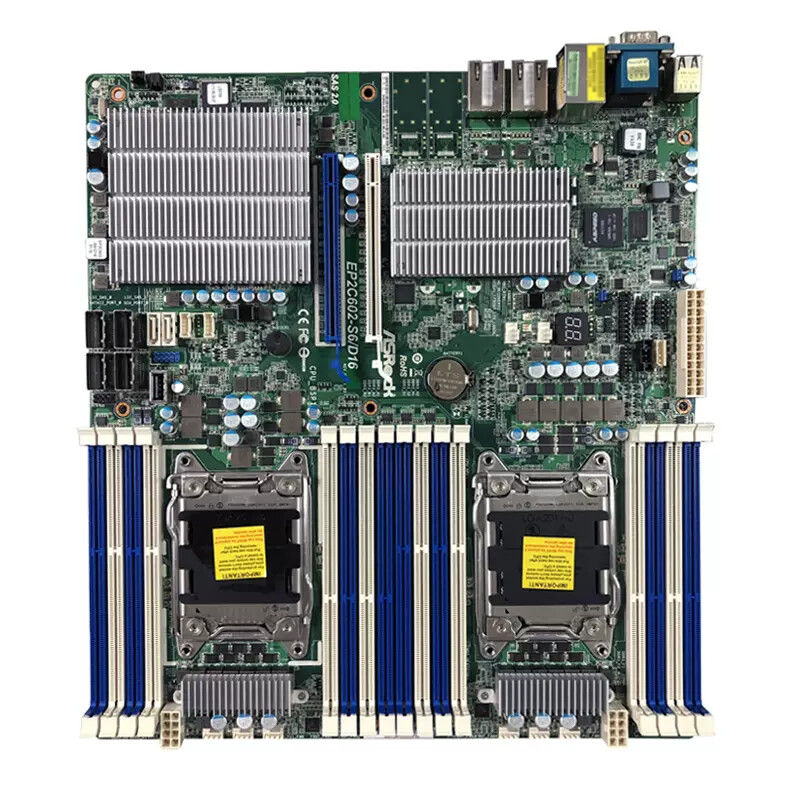

Brand: ASRockModel: EP2C602-S6/D16Baby Condition: NewMemory type: DDR3Motherboard structure: E-ATX reinforced typeColor classification: greenManufacturer: ASRock RackIntel CPU interface: LGA2011LGA 2011：C602Memory channel: Quad channelMaximum memory capacity: 128GBDisplay interface: VGAMulti-graphics support: OtherApplicable object: ServerSupport for display output: YesSupported disk arrays: YesCPU type: Intel

Product specificationsPhysical informationversion- SSI EEBsize- 12'' x 13'' (30.5 cm x 33 cm)Processor systemCPU- Intel®Xeon®processor E5-1600*/2600/4600 & v2 series
- Supports Hyper-Threading Technology

*E5-1600 supports single socket.slot- Dual Socket R (LGA2011)*
*Please use narrow type CPU CoolerPower supply design- 5 +1 Power Phase DesignChipset- Intel®C602System memorycapacity- 16x 240-pin DDR3 DIMM slots
- Support up to 512GB DDR3 R/LR DIMM ; 128GB ECC/non-ECC unbuffered UDIMMtype- Quad Channel DDR3 memory technology
- Supports DDR3 1866/1600/1333/1066 R/LR ECC and UDIMMvoltage- 1.5V, 1.35VExpansion slotsPCIe 3.0 x 16- 2 slots : PCIE1/PCIE2 : x16 modestorageSATA controller- Intel®C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s (from 2x mini SAS 8087 connector), support RAID 0, 1, 5, 10SAS controller- LSI 2308: 8 x SAS2 6Gbps ( from 2x mini SAS 8087 connector)Ethernetinterface- Gigabit LAN 10/100/1000 Mb/sNetwork Controller- 1x Intel®i350 (GLAN)
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function

- Supports PXEManage featuresBMC controller- ASPEED AST2300IPMI independent GLAN- 1 x Realtek RTL8211E for dedicated management LANfunction- Watch Dog
- NMIdisplaycontroller- ASPEED AST2300Memory- DDR3 16MBOutput interface- Supports D-Sub with max. resolution up to 1920x1200 @ 60HzRear panel I/O connectorsVGA interface- 1 x D-SubUSB 2.0 interface- 4Network interface- 2 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)Serial- 1 (COM1)Built-in interfaceSerial port connection socket- 1 (COM2)Auxiliary panel connector- 1 (includes chassis intrusion, location button & LED, front LAN LED)TPM interface- 1Thermal sensing interface- 1IPMB interface- 1buzzer- 1Fan connector- 8 x 4-pinATX power supply- 1 (24-pin) + 2 (8-pin)USB 2.0 header- 2 (each support 2 USB 2.0)USB 2.0 connector type A- 1Front panel- 1loudspeaker- 1Dr. Debug LED indicator- 1System BIOSBIOS type- 64Mb AMI UEFI Legal BIOSBIOS features- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant FlashHardware monitoringtemperature- CPU Temperature Sensing
- System Temperature Sensingfan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Controlvoltage- Voltage Monitoring: CPU1/2, DRAM1/2, VCCM, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSBSupported operating systemsoperating systemMicrosoft
- Windows®2003 32/64 (IDE)
- Windows®2003 R2 32/64 (IDE/AHCI)
- Windows®2008 32/64
- Windows®2008 R2
- Windows®2012
- Windows®2012 R2 64
Linux
- Redhat Enterprise Linux Server 5.5 32/64 ( AHCI)
- Redhat Enterprise Linux Server 6.0 32/64 (AHCI)
- Redhat Enterprise Linux Server 6.4 32/64
- CentOS 5.5 32/64 (AHCI)
- CentOS 6.0 32/64 (AHCI)
- SUSE 10.3 32/64 (AHCI)
- SUSE 11.1 32/64 (AHCI)
VMware
- VMware ESXi 5.1Usage environmenttemperature- Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°CReturn Terms
