1. Basic Information

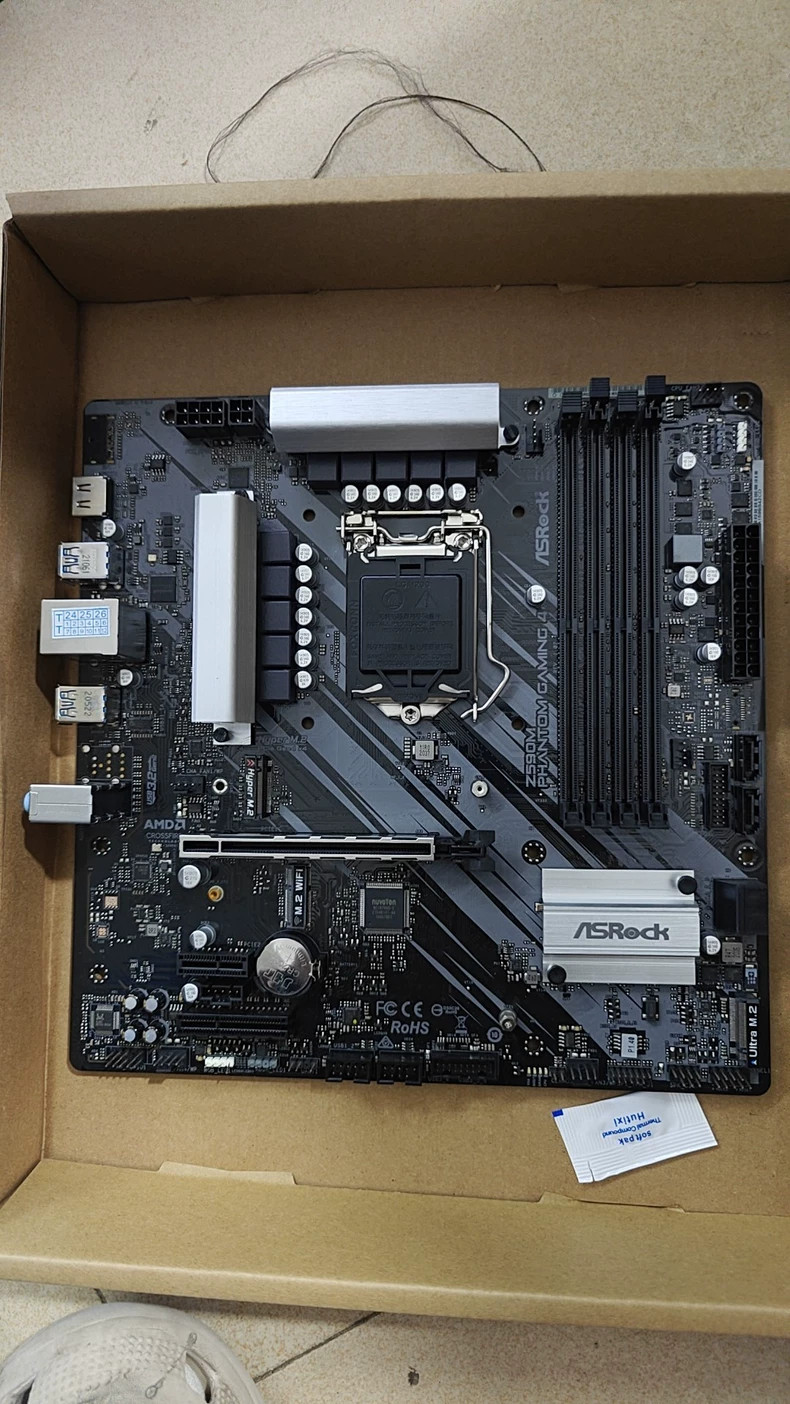

• Model: ASRock Z590M Phantom Gaming 4
• Platform: Intel Z590 Chipset, LGA1200 Socket Micro-ATX Motherboard
• Usage: Intel 10th/11th Gen Core (Comet Lake/Rocket Lake) high-performance gaming/workstation
• Form Factor: Micro-ATX (24.4×24.4cm), compact chassis compatible
• Features: 8-phase VRM, dual M.2, PCIe 4.0, BFB overclocking, WiFi expansion
• Market: Released 2021, mainstream used Z590 micro-ATX

2. CPU Support (LGA1200, 10th/11th Gen Full Compatible)

• Socket: LGA1200 (Socket H5)
• Supported CPUs:
  • 11th Gen (Rocket Lake): i5-11600K, i7-11700K, i9-11900K (OC supported)
  • 10th Gen (Comet Lake): i5-10400, i7-10700K, i9-10900K (OC supported)
  • Pentium/Celeron: G5905, G6405, etc.
• Key Tech: Turbo Boost Max 3.0, BFB (non-K CPU overclocking)
• Max TDP: 125W, stable for i9-11900K

3. Power Design (8-Phase Digi Power, Super Alloy)

• VRM: 8-phase digital VRM (6-core+2-aux), 50A high-efficiency inductors
• Caps/PCB: All-solid capacitors, black 4-layer PCB, high-density moisture-proof coating
• Cooling: Full-coverage aluminum VRM heatsink, high-load stable
• Protection: OVP/OCP/OTP, ESD guards

4. Memory Specifications (DDR4 Quad-Channel, Up to 128GB)

• Slots: 4×DDR4 DIMM (Quad-Channel)
• Max Capacity: 128GB (4×32GB)
• Frequency:
  • 11th Gen: DDR4 4800MHz (OC)
  • 10th Gen: DDR4 4600MHz (OC)
• Features: XMP 2.0, ECC UDIMM (non-ECC mode)

5. Expansion Slots (PCIe 4.0 + Dual M.2, High-Speed)

• PCIe 4.0 x16 ×1: 11th Gen supported, full-speed single GPU
• PCIe 3.0 x4 ×1: SSD/NIC expansion
• PCIe 3.0 x1 ×1: Sound/capture card
• M.2 Key-M ×2:
  • Hyper M.2: PCIe 4.0 x4 (2280)
  • Ultra M.2: PCIe 3.0 x4 + SATA III (2280)
• M.2 Key-E ×1: WiFi/BT module

6. Storage (4×SATA III, RAID 0/1/5/10 Supported)

• SATA III 6Gb/s ×4: HDD/SSD
• RAID: 0/1/5/10 supported
• M.2: Dual M.2 (PCIe 4.0 + PCIe 3.0/SATA), no SATA DOM

7. Networking & Rear I/O (USB 3.2 Gen2 + GbE + HDMI)

• LAN: Intel I219-V Gigabit Ethernet
• Rear Ports:
  • USB 3.2 Gen2 ×2 (10Gb/s, Type-A)
  • USB 3.2 Gen1 ×4 (5Gb/s)
  • USB 2.0 ×2
  • Video: HDMI 2.0 (4K@60Hz, 11th Gen)
  • Audio: Realtek ALC897 7.1-channel, Nahimic audio
  • Others: PS/2, RJ45, S/PDIF optical

8. Ideal Usage

• Intel i7-11700K/i9-11900K compact high-performance builds
• Dual M.2 high-speed storage (PCIe 4.0 + SATA)
• Gaming, video editing, 3D rendering workstations
• Legacy upgrades (10th Gen reuse), BFB non-K overclocking
• Small chassis high-performance configs (Micro-ATX)
• Please note: This product does not include batteries as they are prohibited items.
  All motherboards in this store are used motherboards. Motherboards are updated rapidly, so the pictures displayed on the page may not match the actual ones. Please contact customer service to obtain the latest actual pictures
