Please note: This product does not include batteries as they are prohibited items. AMD AM4 uATX motherboard with 5X Protection III, DDR4 3200MHz, SATA 6Gbps and USB 3.1 Gen 1

• Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
• 5X Protection III: Multiple hardware safeguards for all-round protection
• One-stop controls: Media-acclaimed UEFI BIOS with EZ Flash 3

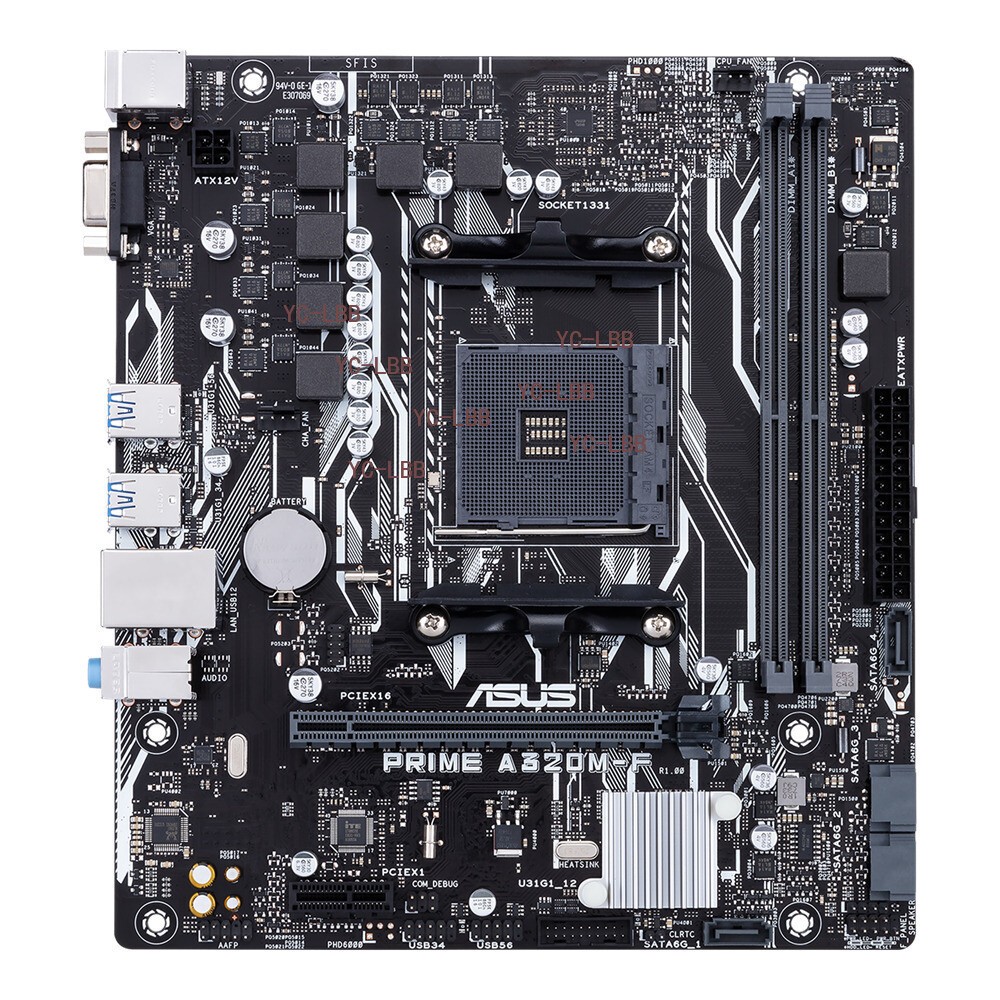

Model PRIME A320M-F CPU AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7thGeneration A-series/Athlon X4 Processors
* Refer to[link removed by ]for CPU support list Chipset AMD A320 Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to[link removed by ]for the Memory QVL (Qualified Vendors Lists). Graphic Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU
VGA output support : D-Sub port
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively) Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD A320 chipset
2 x PCIe 2.0 x1 Storage AMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10 LAN Realtek® RTL8111H, 1 x Gigabit LAN Controller(s) Audio Realtek® ALC8878-Channel High Definition Audio CODEC USB Ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD A320 chipset :
2 x USB 3.0 port(s) (2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board) Special Features ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s) Internal I/O Ports 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control Operating System Windows® 10 64-bit
Windows® 7 64-bit *1 Form Factor mATX Form Factor
8.5 inch x 7.6 inch ( 21.6 cm x 19.3 cm ) Note *1 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.

WARRANTY

Wehavealargeamountofstock, and manyproducts have not been released yet. You can give us your hairstyle number andwecanhelpyou find them. If you need more, please contact us to get abetter price. We will reply your message in 24hours during
--both working days and non-working days;
--both before sales and after sales.
We are always here waiting for your message. If you have any question, just contact us. It is our pleasure to offer any help. We believe good
communicationwillprevent many troubles.
We sincerely hope to provide our customers great products and service. If you are unsatisfied about anything, just tell us, we will solve the problem for you.
Please kindly keep the packing materials until you assure the products are perfectly fit for your car Or machine and you will not return them. Thank you!
We provide true and effecient warranty for our products. During our warranty period, if our products do not work well due to manufactuer's defect, we will resend new replacements for free.1）Reliable and durable products;
2）Excellent R&D ability;
3）Professional technicians and responsible salespersons;
4）Worry-free warranty terms;
5）Fast shipping
Shipping Policy
1.standard to worldwide, the average delivery time is about 7-12 days.
2.If you want expedited shipping, take 3-5 days to arrive
3.There are occasional postal/customs delays, which can add approximately 2-5 days to the delivery time.
4.Import duties, taxes and fees are not included in the price of the item or in the freight, and these costs are the responsibility of the buyer.Returns Policy1.Each item is strictly tested before shipment.
2.We are confident with our item,but we accept 30-days return if there is some problem with the item,which shipping cost is buyer's responsibility to deal with.
3.Your positive response is very important to us, please leave 5 stars response, thanks!Contact us
1.Welcome to contact us if you have any questions.
2.Thanks for your understanding and hope you enjoy your shopping!^.^
