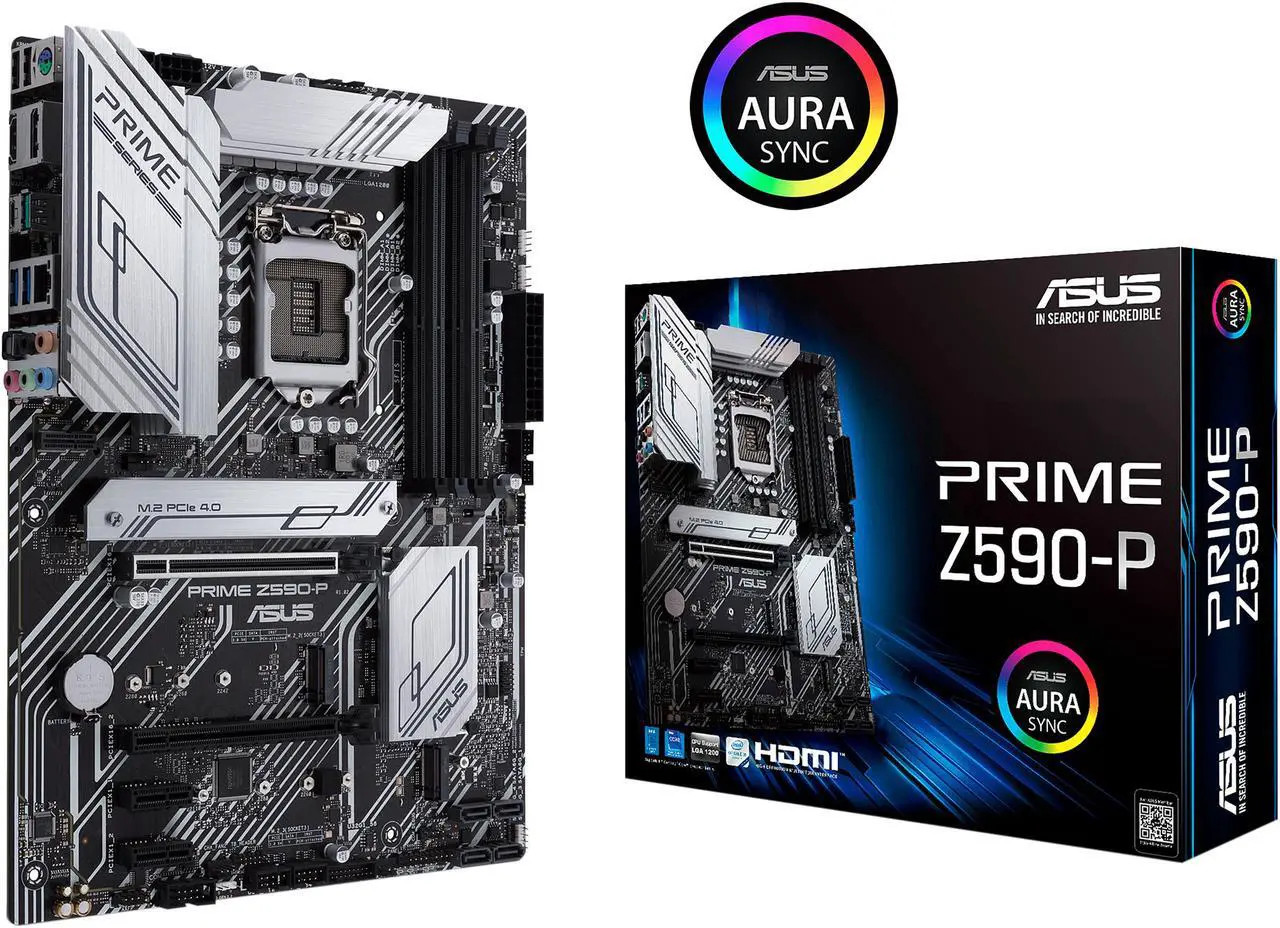

ModelBrandASUSModelPRIME Z590-PSupported CPUCPU Socket TypeLGA 1200CPU TypeSupports 11th Gen / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors*

* Refer to www.asus.com for CPU support list.Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetsChipsetIntel Z590Onboard VideoOnboard Video ChipsetSupported only by CPU with integrated graphicMemoryNumber of Memory Slots4x288pin (DDR4)Memory StandardDDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

* 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.Maximum Memory Supported128GBChannel SupportedDual ChannelExpansion SlotsPCI Express 4.0 x161 x PCIe 4.0/3.0 x16 slot

* Actual support may vary by CPU.PCI Express 3.0 x161 x PCI Express 3.0 x16PCI Express x12 x PCIe 3.0 x1Storage DevicesSerial ATA (SATA)4 x SATA 6Gb/sM.2Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.Intel Optane ReadyYesOnboard AudioAudio ChipsetRealtek ALC897Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek 2.5Gb EthernetMax LAN Speed2.5GbpsRear Panel PortsBack I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsOnboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 portsOther ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt headerSoftware FeatureWindows 11SupportedPhysical SpecForm FactorATXLED LightingRGBDimensions (W x L)12.0" x 9.2"Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connectorFeaturesFeaturesSpecial Features:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers

Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS:
192 (128+64) MB Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 64-bitPackagingPackage ContentsAccessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User manual
