Please note: The motherboard has been opened (as it will be tested (including all interfaces and slots) before shipment to ensure that there are no issues with the motherboard before it is dispatched)

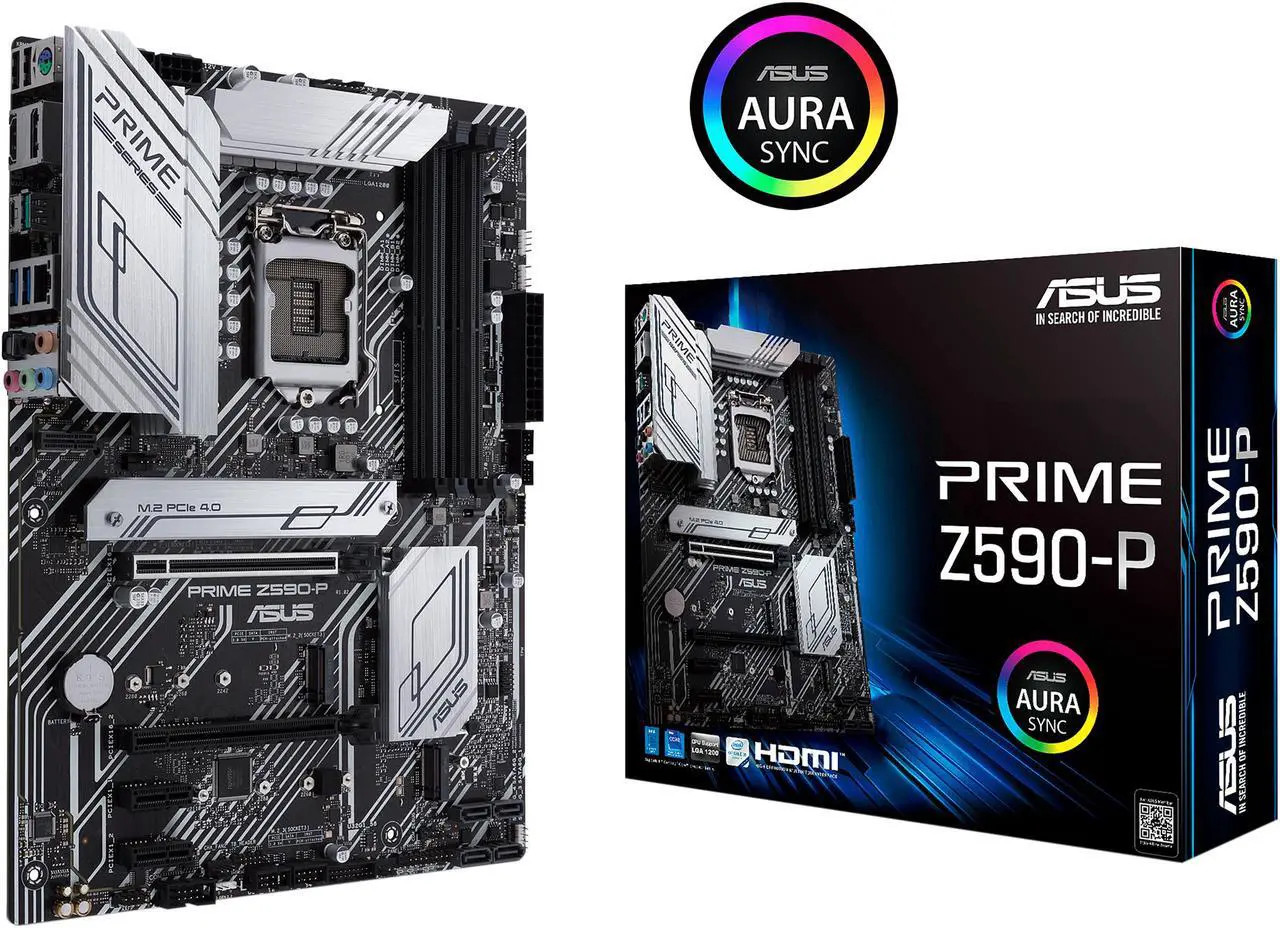

(If you are sensitive to any traces of testing, please do not purchase.) Model Brand ASUS Model PRIME Z590-P Supported CPU CPU Socket Type LGA 1200 CPU Type Supports 11th Gen / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors** Refer to www.asus.com for CPU support list. Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipsets Chipset Intel Z590 Onboard Video Onboard Video Chipset Supported only by CPU with integrated graphic Memory Number of Memory Slots 4x288pin (DDR4) Memory Standard DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133** 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Maximum Memory Supported 128GB Channel Supported Dual Channel Expansion Slots PCI Express 4.0 x16 1 x PCIe 4.0/3.0 x16 slot* Actual support may vary by CPU. PCI Express 3.0 x16 1 x PCI Express 3.0 x16 PCI Express x1 2 x PCIe 3.0 x1 Storage Devices Serial ATA (SATA) 4 x SATA 6Gb/s M.2 Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUsIntel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used. Intel Optane Ready Yes Onboard Audio Audio Chipset Realtek ALC897 Audio Channels 7.1 Channels Onboard LAN LAN Chipset Realtek 2.5Gb Ethernet Max LAN Speed 2.5Gbps Rear Panel Ports Back I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Onboard USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-5pin System Panel header
1 x Thunderbolt header Software Feature Windows 11 Supported Physical Spec Form Factor ATX LED Lighting RGB Dimensions (W x L) 12.0" x 9.2" Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector Features Features Special Features:
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headersSoftware Features:
ASUS Exclusive Software
Armoury Crate
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ ModeBIOS:
192 (128+64) MB Flash ROM, UEFI AMI BIOSManageability:
WOL by PME, PXEOperating System:
Windows 10 64-bit Packaging Package Contents Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x M.2 SSD screw packages
Installation Media
1 x Support DVD
Documentation
1 x User manual
