Honest Seller
Trusted, Qualified and Recognized Seller
We promised all the Items will be tested earnestly before shipping, ensure it 100% working in orders.

Package Included:

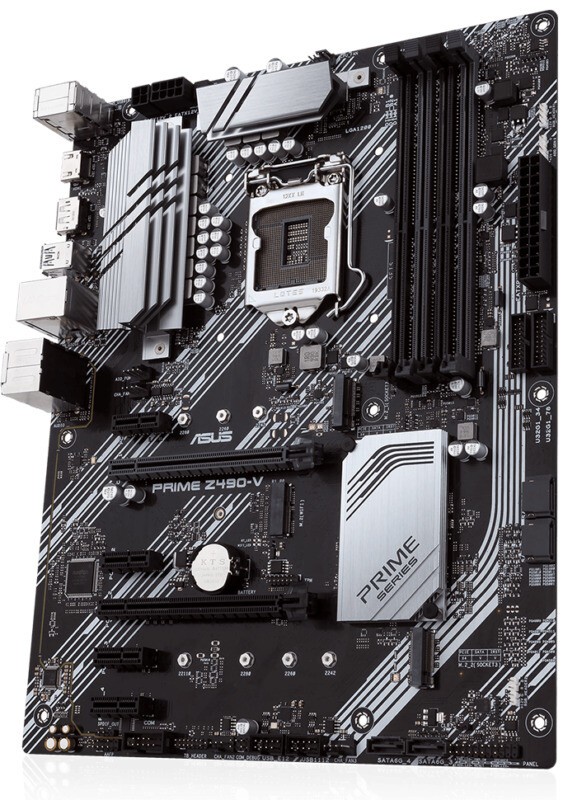

1 x motherboard

1 x I/O back panel

2 x SATA II cable

Technical Tips:

A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.

Parts Specification:

CPU

Intel® Socket 1200 - Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® 14 nm processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

Intel® Z490

RAM

4 x DIMM, support up to 128GB, DDR4 MHz Non-ECC, Un-buffered Memory*

Supports dual-channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) technology

Graphical display

Integrated graphics processor

1 x DisplayPort 1.4**

1 x HDMI 1.4b

*Display core specifications may vary between CPU types.

Multiple Graphic Display Technology

Supports AMD 2-Way CrossFireX technology

Expansion slot

10th Generation Intel® Processors

1 x PCIe 3.0 x16 (x16 mode) *1

Intel® Z490 Chipset

1 x PCIe 3.0 x16 (x4 mode)

4 x PCIe 3.0 x1

Storage function (subject to shipment)

Supports a total of 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Z490 Chipset:

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage device (SATA & PCIE 3.0 x 4 mode)*2

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage device (SATA & PCIE 3.0 x 4 mode)

4 x SATA 6Gb/s ports

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology

Intel® Optane™ Memory Technology

Network features

Realtek® RTL8111H

Wireless connections

M.2 slot only (Key E) (support CNVI & PCIe interface)*

*Wi-Fi module sold separately.

Sound effect

Realtek ALC 887 8-channel high-definition audio chip

- Support: Audio interface detection (Jack-detection), front panel audio jack swap function (Jack-retasking), Multi-source independent output (Multi-Streaming), 24-Bit/192kHz playback

Audio function:

- Audio dividing line design

- Layered design of left and right channels

- High quality Japanese audio capacitors

USB interface

Back USB ports (6 in total)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB ports (8 in total)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0 ports

Software function

ASUS-specific software

Armoury Crate Ultron Game Control Center

- AURA SYNC

AI Suite 3 Smart Butler 3rd Generation

- Performance and power application

EPU intelligent energy-saving processing

Digi+ digital power supply design

Fan Xpert 4

- EZ update

AI Charger

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Backplane I/O Connectors

1 x PS/2 mouse and keyboard interface

1 x DisplayPort connector

1 x HDMI port

1 x LAN (RJ45) port

2 x USB 3.2 Gen 2 ports Type-A

2 x USB 3.2 Gen 1 ports Type-A

2 x USB 2.0 ports

6 x audio jacks

Internal I/O Interface

1 x CPU fan header

3 x Chassis Fan Connectors

2 x Aura RGB strip headers

1 x Gen 2 programmable header

2 x USB 3.2 Gen 1 (up to 5Gbps) ports support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 ports can be extended to 4 external USB 2.0 ports

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280/22110 type storage device (SATA & PCIE 3.0 x 4 mode)

1 x M.2 Socket 3 slot, support M key, 2242/2260/2280 type storage device (SATA & PCIE 3.0 x 4 mode)

1 x SPI TPM header

4 x SATA 6Gb/s device connection sockets

1 x S/PDIF_Out header

1 x 24-pin EATX motherboard power socket

1 x 8-pin EATX 12V power connector

1 x M.2 with E key for Wi-Fi module

1 x Thunderbolt header

1 x Front Panel Audio Interface (AAFP)

1 x 4-pin EATX 12 V power connector

1 x AIO_Water Pump Connector

1 x Clear CMOS Jumper

1 x System Panel Connector

1 x Serial Connection Socket (COM)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

OS

Windows® 10 64-bit

Dimensions

ATX; 12" x 9.6" (30.5cm x 24.4cm)

Terms and Conditions

Terms:Pleaseread the entire listing before offerding. We do not offer cash refundsfor any purchases. All sales are FINAL, we will replace per ourwarranty (see below) buyer is responsible for all shipping charges.

response:Your satisfaction is our pursuit. Weappreciate positive response we always try our best to service ourcustomers so if you have any question ,Please don't hesitate to contactus
we are always here to offer timeUSAEconomy Shipping8-15 business daysCanada,Australia,NewZealandEconomy Shipping10-20 business daysUK,Germany,FranceEconomy Shipping10-25 business daysOtherEurope CountryEconomy Shipping10-25 business daysOtherCountryEconomy Shipping10-25 business days
AgentEstimate timeExpedited:CountryUSAExpedited Shipping3-5 business Shipping3-7 business daysUK,Germany,FranceExpedited Shipping3-6 business daysOtherEurope CountryExpedited Shipping3-6 business daysOtherCountryExpedited Shipping4-8 business days

Sinceyour Country customs and international customs regulations prohibitsuch behavior,We can not item is "gift", thank you for yourunderstanding.

Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local customs office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Warranty:All items are sold with 90 days warranty unless otherwise stated in the sale.

Returns:

1) In our item warranty, we can offer refund or replacement.

2) We do the refund after we get the returned item, we can ship the replaced item after you ship the old one out.

3)Please do not return any items without an authorization number or otherinstructions by us. Any packages that are send without our knowledgewill be refused and no replacements will be issued. Wrong item orderedor non defective part returns require a 20% restocking fee. All productsare marked with serial number and QC badge.Any products returnedwithout our serial number and QC badge will be rejected as not ourparts..

Support:

If you have any questions about the order or item, please contact us via Message（Or find your order and click contact seller）.
When we receive the e-mail, we will reply in time on weekdays . Please make sure via the message we can contact you.our weekdays are on Mon-Fri, Please allow up to 48 hours for us to respond on weekends. All emails will be answered! Please make sure via the message we can contact you. If you do not receive a response, please resend your email. Sometimes Spam filters prevent emails from being properly delivered. If you do not receive a response after a second request, please provide an alternative email address for us to respond. No one is EVER ignored and all problem will be solved!

Enjoy your shopping!
