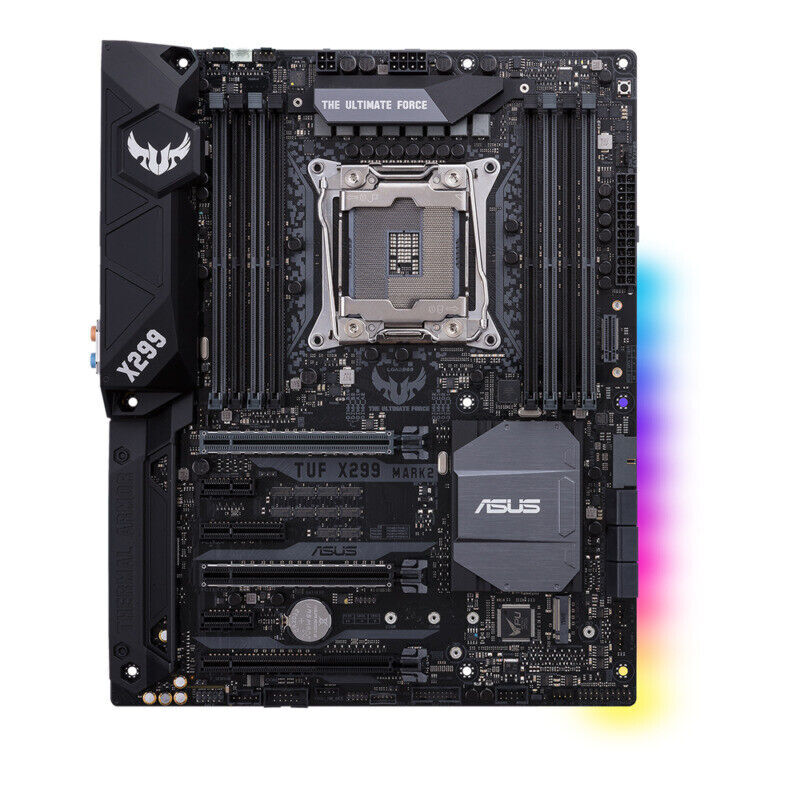

ASUS TUF X299 MARK 2 Motherboard Intel X299 LGA 2066 DDR4 M.2 ATX RJ-45 USB 3.1

CPU

Intel® Socket 2066 Core™ X-Series Processors

Optimized for Intel® Core™ X-Series 10000 Processor Family

* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types

Chipset

Intel® X299

RAM

(Intel® Core™ i9 10000 X-Series CPU)

8 x DIMM, Max. 256GB, DDR4 (OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

(Intel® Core™ i9 9000/7000 and i7 9000 X-Series CPU)

8 x DIMM, Max. 256GB, DDR4 (OC)/2933(OC)/2800(OC)/2666/2400/2133 MHz Non-ECC, Un-buffered

Memory

Intel® Core™ X-series Processors (4-core)

4 x DIMM, Max. 128GB, DDR4 MHz Non-ECC, Un-buffered Memory

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Multi-GPU Support

Supports AMD Quad-GPU CrossFireX™ Technology

Supports AMD 3-Way CrossFireX™ Technology

Supports NVIDIA® Quad-GPU SLI™ Technology

Supports NVIDIA® 3-Way SLI™ Technology

Supports NVIDIA® 2-Way SLI™ Technology

Slots

28-Lane CPU-

2 x PCIe 3.0/2.0 x16 (x16, x16/x8)

2 x PCIe 3.0/2.0 x1

2 x PCIe 3.0/2.0 x1

44-Lane CPU-

2 x PCIe 3.0/2.0 x1

1 x PCIe 3.0 x4 (max at x2 mode) *1

2 x PCIe 3.0/2.0 x16 (x16 or dual x8)

16-Lane CPU-

3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)

1 x PCIe 3.0 x4 (max at x2 mode) *1

1 x PCIe 3.0 x4 (max at x2 mode) *1

storage

1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

Intel® X299 Chipset:

Support Raid 1, 0, 10, 5

6 x SATA 6Gb/s port(s)

Supports Intel® Smart Response Technology

Intel® Optane™ Memory Ready

Intel® Rapid Storage Technology 15 support

Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID

LAN

ASUS Turbo LAN Utility

1 x Gigabit LAN Controller(s), featuring Turbo LAN, Intel® I219V

Sound effect

Audio Feature:

-Optical S/PDIF out port(s) at back panel

-Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

-Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

-Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

-Unique de-pop circuit: Reduces start-up popping noise to audio outputs

Separate layer for left and right track, ensuring both sound deliver equal quality

-Supports: Front Panel Jack-retasking, Jack-detection, Multi-streaming

-Impedance sense for front and rear headphone outputs

Realtek® S1220A 8-Channel High Definition Audio CODEC

-Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

USB Ports

Intel® X299 Chipset:

6 x USB 2.0 port(s) (4 at back panel,, 2 at mid-board)

ASMedia® USB 3.1 Gen 2 controller:

2 x USB 3.1 Gen 2 port(s) (Type-A)

Intel® X299 Chipset:

8 x USB 3.1 Gen 1 port(s) (4 at mid-board, 4 at back panel,)

Backplane I/O port

2 x USB 3.1 Gen 2 Type-A

1 x PS/2 keyboard/mouse combo port(s)

4 x USB 3.1 Gen 1

1 x LAN (RJ45) port(s)

4 x USB 2.0

5 x Audio jack(s)

1 x Optical S/PDIF out

Internal I/O

1 x 24-pin EATX Power connector(s)

1 x VROC_HW_Key

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

1 x COM port(s) connector(s)

1 x H_AMP fan connector

1 x 4-pin ATX 12V Power connector(s)

1 x MemOK! button(s)

1 x CPU Fan connector(s)

1 x Thunderbolt header(s)

1 x CPU OPT Fan connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)

1 x Clear CMOS jumper(s)

1 x AAFP connector

1 x 5-pin EXT_FAN(Extension Fan) connector

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x AIO_PUMP connector

1 x CPU_OV jumper

1 x W_PUMP+ connector

6 x SATA 6Gb/s connector(s)

2 x Chassis Fan connector(s)

1 x Thermal sensor connector(s)

2 x 3D Mount screw port(s)

1 x M.2_FAN connector

1 x System panel(s) (Q-Connector)

2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,

ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Dimensions

-ATX Form Factor,12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
