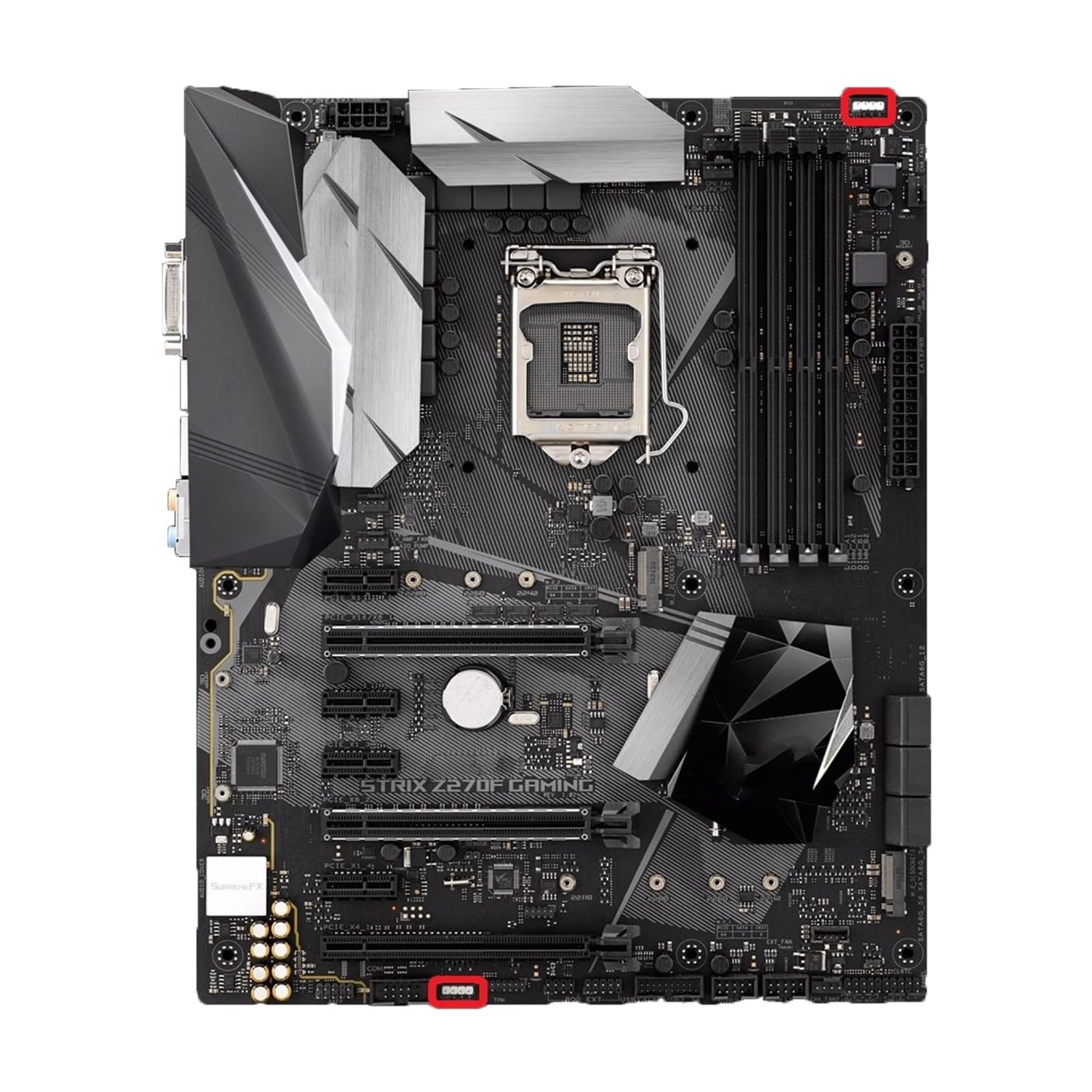

It comes with a matching baffle and can be directly installed upon arrival, ensuring worry free shopping throughout the entire process.CPU Intel Socket 1151for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 Chipset Intel Z270 Memory 4 x DIMM, Max.64GB, DDR4 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Graphic Multi-VGA output support : HDMI/DVI-D/DisplayPort 1.2 ports Integrated Graphics Processor- Intel HD Graphics support - Supports HDMI with max.resolution 4096 x 2160 @ 24Hz - Supports DVI-D with max.resolution 1920 x 1200 @ 60Hz - Supports DisplayPort with max.resolution 4096 x 2304 @ 60 Hz *1 Expansion Slots 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 4 x PCIe 3.0/2.0 x1 Storage 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)*3 Intel Z270 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode2 Supports Intel Smart Response Technology4 Intel Optane Memory Ready *5 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 4 x USB 3.1 Gen 1 (blue) , 2 x USB 3.1 Gen 2 Type-A USB Type-CTM, 1 x DVI-D 1 x DisplayPort 1 x HDMI 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x COM port header 1 x AAFP connector 2 x RGB Headers 3 x 3D Mount screw ports 1 x ROG extension (ROG_EXT) header(s) 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s) 1 x CPU OV 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x Clear CMOS jumper(s) 1 x 14-1 pin TPM connector 1 x T_Sensor Connector 1 x AIO PUMP Header RAID Supported : No Processor compatibility : 6th Intel Core i7,6th Intel Core i3,7th Intel Core i3,6th Intel Core i5,7th Intel Core i7,7th Intel Core i5,7th Intel Core i9 Usage Scenario : Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office Back I/O Ports : 1x RJ45,HDMI 1.4,DVI-D Onboard LAN : 1x RJ45 Storage Interface Type : SATA,M.2 (NVMe) Number of PCI : 4 PCI - E standards : PCI-E 3.0 Support Memory Type : DDR4 Quality Certification : ce Memory channel : Double Maximum Ram Capacity : 64 GB Form Factor : ATX Chipset Manufacturer : Intel Battery Included : No Chipset : Intel Z270 Application : Desktop Socket Type : LGA 1151
