WAVLINK Outdoor AP Series — Find Your Perfect Model
Quick Comparison — Core Specs
ModelWiFi StandardTotal SpeedBand Speeds (2.4G / 5G)Antennas (Type/Gain)IP RatingMax DevicesWN570HA2
(2‑ant AC1200)WiFi 5 (AC1200)AC1200300 + 867 Mbps2×7dBi OmniIP6732WN572HP3
(4‑ant AC1200)WiFi 5 (AC1200)AC1200300 + 867 Mbps4×7dBi Omni (detachable)IP6564‑96WN573HX1
(AX1800)WiFi 6 (AX1800)AX1800574 + 1201 Mbps4×8dBi Omni (fiberglass)IP67128WN573HP3
(AX3000 Directional)WiFi 6 (AX3000)AX3000573 + 2402 Mbps4×12dBi Directional (built‑in)IP67256WN588HX3
(AX3000 6×7)WiFi 6 (AX3000)AX3000573 + 2402 Mbps6×7dBi Omni (detachable)IP67256
Quick Comparison — Features & Connectivity
ModelPoE SupportMesh SupportOperation ModesEthernet PortSecuritySpecial FeatureWN570HA2Active + compactWN572HP3PassiveEasy MeshMesh/AP/RepeaterDual GigabitWPA2/WPA3800mW PA, detachable antennasWN573HX1Active + PassiveEverything antennasWN573HP3Active + PassiveEverything PtP transmissionWN588HX3Active + PassiveEverything antennas, 300m coverage
Purchase Recommendations & Best Use Cases
📡 For Long‑Distance Point‑to‑Point Transmission: Choose WN573HP3 (4×12dBi Directional) — built‑in directional antennas deliver stable transmission up to 3km. Ideal for connecting remote buildings, farm‑to‑house networking, and surveillance backhaul.
🏟️ For High‑Density & Wide‑Coverage Areas: Select WN588HX3/WN573HX3(6×7dBi Omni) — 6 high‑gain omni antennas provide 360° coverage up to 300m, supporting 256 devices. Perfect for stadiums, festivals, and large public spaces.
🌳 For Harsh Outdoor & Industrial Environments: Go with WN573HX1 (AX1800) — IP67, corrosion‑resistant fiberglass antennas, and 128‑device support. Great for community streets, factories, and extreme weather.
🏠 For Residential & Small Business: Pick WN572HP3 (4‑ant AC1200) — Easy Mesh, dual Gigabit ports, and detachable antennas. Great for home yards, cafés, and small offices.
💰 For Budget‑Friendly Outdoor Wi‑Fi: Choose WN570HA2 (2‑ant AC1200) — IP67, Active+Passive PoE, and reliable coverage. Perfect for basic yard or poolside extension.
💡 All models feature: Weatherproof enclosures (IP65/IP67), flexible PoE options (active/passive), multiple operation modes (AP/Router/Repeater/Mesh), and robust ESD/lightning protection. Backed by WAVLINK's worry‑free warranty and lifetime technical support.

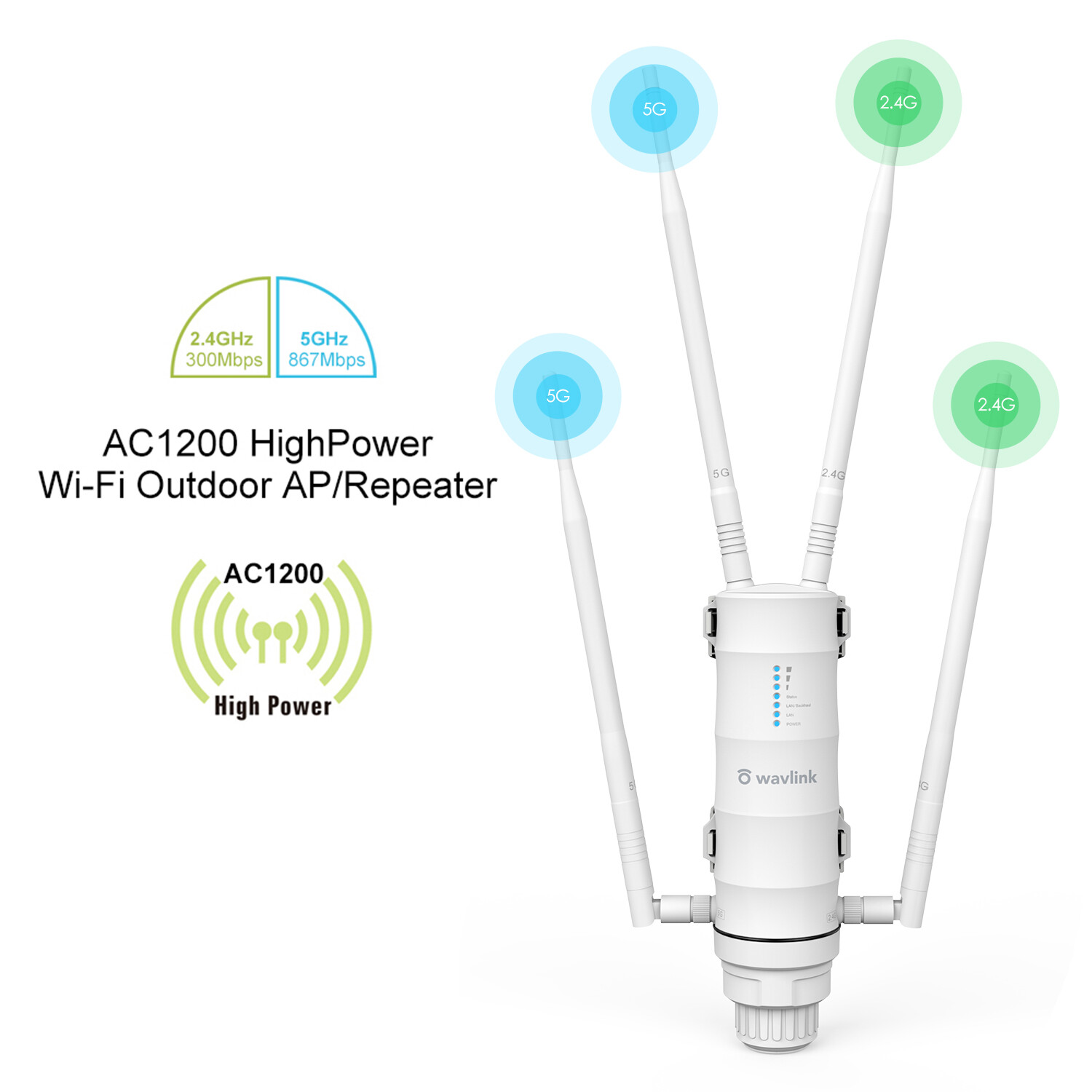

1200Mbps-4 High Power Antenna-WN572HP3
WAVLINK AC1200 High Power Outdoor Weatherproof WiFi Range Extender/Wireless Access Point/mesh agent with Passive POE, Dual Band 2.4GHz 300Mbps+5.8 GHz 867Mbps, 4x7dBi Detachable Omni Directional Antennas, Mesh Technology Supported, No WiFi Dead Zones for Working from Home
Features:
[AC 1200 Dual-Band & Upgraded Chip & Easy Mesh Technology Supported]: The next generation of Wi-Fi, complies with IEEE 802.11 ac/a/b/g/n standards. Dual-Band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, an upgraded version of AC1200(1200Mbps); With a brand-new chip MT7621A and Easy Mesh supported, it lets you keep more devices(64~96) connected simultaneously with the dual bands and enables Wavlink mesh router/AP/repeater to work together, which is superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
[Multiple Operation Modes & Power Over Ethernet & Dual Gigabit Ethernet Ports]: WL-WN572HP3 supports Mesh Extender Mode, Access Point (AP) Mode, and Repeater Mode. Integrated Power over Ethernet (PoE) supported, allowing it to be installed in areas where power outlet is not available by combining your power and network data connection into a single RJ-45 cable; Dual Gigabit (1000Mbps) LAN/WAN Ethernet Ports---support 10/100/1000Mbps speeds, 10x faster than a standard Ethernet port, giving you an excellent network speed experience.
[Design for Harsh Outdoor Environment & Strengthening Waterproof Version]: IP65-rated weatherproof & heat-resistant case that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture, withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightning protection, ensure stable connection in harsh outdoor conditions. The key parts have been coated with waterproof glue to strictly avoid leakage phenomenon of the product.
[4 x 7dBi Detachable Omni Directional Antennas & Outstanding Function]: Higher antenna gain extensively strengthens Wi-Fi signal and expands wider coverage in the open air, stability technology automatically avoids channel conflicts using its channel selection feature, meet outdoor long range coverage wireless network requirement, cover hard-to-reach dead zones. High Power Amplifiers PA 800mW and enhanced receiver design for more strong penetration & longer range coverage than the general access point, ideal for providing Wi-Fi service in big area such as factory, community, street or etc.
[What You Get]: All Wavlink products come with a high-quality after-sale service. Please feel free to contact us anytime if you have any question, we will do our best to help you. In the Box: AC 1200 Dual Band Outdoor AP/Range Extender, 2x 2.4G Omni Antennas, 2x 5G Omni Antennas, 1x RJ45 Networking Cable, 1x Power Adapter, 1x PoE Converter, 1x Main Body Holder, 2x Cable Ties, 1x Screw Fitting Kit, 1x Quick Start Guide. 12-month worry free warranty (extra 6 months for registered members) and life-long technical support.
Dual Bands WiFi Repeater
With combined wireless speeds of up to 2.4GHz 300Mbps or 5GHz 867Mbps, simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth-intensive tasks like online gaming or HD video streaming can be processed by the 5GHz.
Multiple Operation Modes
Mesh Extender Mode: Co-create a larger wireless network coverage with Wavlink mesh supported routers and share signal to multiple WiFi devices.
AP Mode: Convert a wired network to a wireless network, which allows you connect laptops, tablets, phones or other WiFi devices.
Repeater Mode: Extend WiFi coverage of an existing wireless network.
Withstand Harsh Climates
An IP65-rated weatherproof housing that ensures the 572HP3 continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F). Built-in lightning arrester (15kV ESD), 4KV lightning protection.
Applicable for Large-coverage
Extend the network over long-distances (max 200 meters) with high gain 4x7dBi antennas that deliver a stable and fast network connectivity to large yards and patios. So, it can boost Wi-Fi coverage up to max A=πr² (r=200m)=125,600m² (1,350,000 sq.ft), which is over 135 times larger than others' only 10,000 sq.ft coverage!
Strengthening Waterproof Parts
In order to avoid the water leakage issue the latest version 572HP3 has specially improved the key parts, coated with waterproof glue, greatly strengthening the waterproof protection.
Installation note：
-Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
-The outdoor antennas should be installed at a height of 2 meters above the roof or in a high open place for better reception.
Specification:
Frequency: 2.4GHz & 5GHz, speed up to 1,200 Mbps
Interfaces: 1x 10/100/1,000Mbps LAN; 1x 10/100/1,000Mbps WAN
Antennas: 4x 7dBi omni Antennas
Operation modes: Repeater, AP, Mesh Extender
Weatherproof case: 15KV ESD and 4KV Lightning Protection
Security: WPA2-PSK, WPA2/WPA3 Mix
LEDs: 7x Status LED Indicators
Power adapter: 100~240V/50~60Hz; DC 24V (Passive PoE)
What's in the box:
1x AC 1200 Dual Band Outdoor AP/Range Extender
2x 2.4G Omni Antennas
2x 5G Omni Antennas
1x RJ45 Networking Cable
1x Power Adapter
1x PoE Converter
1x Main Body Holder
2x Cable Ties
1x Screw Fitting Kit
1x Quick Start Guide
1800Mbps-4 High Power Antenna-WN573HX1
WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super-Speed WiFi6 Anytime & for Harsh Outdoor Conditions】Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
【⭐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX1, you can enjoy HD videos, smooth gaming, etc. even outdoors.
【⭐Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available.
【⭐Seamless WiFi Roaming】The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【⭐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.
Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.
IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.
PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.
574Mbps on 2.4G & 1201Mbps on 5G
Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.
High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.
Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.
Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberglass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band(2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type:WPA2-PSK, WPA3/WPA2-MIX.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE:
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
3000Mbps-WN573HP3
WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/4x12dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster AmplifierFeatures:
【🌐Designed for Harsh Outdoor Conditions】 IP67-rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions.
【🌐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
【🌐Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available.
【🌐Seamless WiFi Roaming】The built-in 4x12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【🌐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
【🌐3Km Wireless Data Transmission】Specially designed for outdoor uses, ideal for long distance wireless data transmission over 3km/1.9miles (only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the transmission and reception performance of wireless signal.
Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
3000Mbps-6*7dBi Antennas-WN588HX3
WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE/6x7dBi High-gain Antennas/IP67 Weatherproof Enclosure/Signal Booster Amplifier
【🌐Designed for Harsh Outdoor Conditions】 IP67-rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions.
【🌐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.
【🌐Seamless WiFi Roaming】The 6x7dBi omni-directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【🌐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.
【🌐Powered by PoE and Flexible Installation】Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.
Specification
- Model: WL-WN588HX3
- Product Size: 17x17.3x5.1cm/6.7x6.8x2in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 552g/19.5oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 6 x 7dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- 3x7dBi 5GHz, 3x7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 4 × Plastic Cable Ties
- 1 × Main Body Holder
- 6 x 7dBi Antennas
- 1 × Wrench
- 1 × 54V Power Adapter
- 1 × PoE Converter
- 1 × Ethernet Cable
- 1 × PWM M3×5×6MM Screw
- 6 × KA M3×20×5.2MM Screws
- 6 × Φ6.5x25MM Screw Plugs
- 1 × Quick Start Guide
- 5 Powerful Outdoor APs – From AC1200 to AX3000, find the perfect balance of coverage, speed, and budget.
- WiFi 5 & WiFi 6 Options – AC1200 for reliable performance or WiFi 6 for next-gen speed and efficiency.
- IP65/IP67 Weatherproof – Built to withstand extreme temperatures, rain, snow, and lightning.
- Flexible PoE & Mesh – Active/passive PoE and Easy/Everything Mesh for seamless deployment and roaming.
- Multiple Modes – AP, Router, Repeater, Mesh – adapts to any scenario.
- Worry‑Free Warranty – Backed by WAVLINK’s quality guarantee and lifetime technical support.
