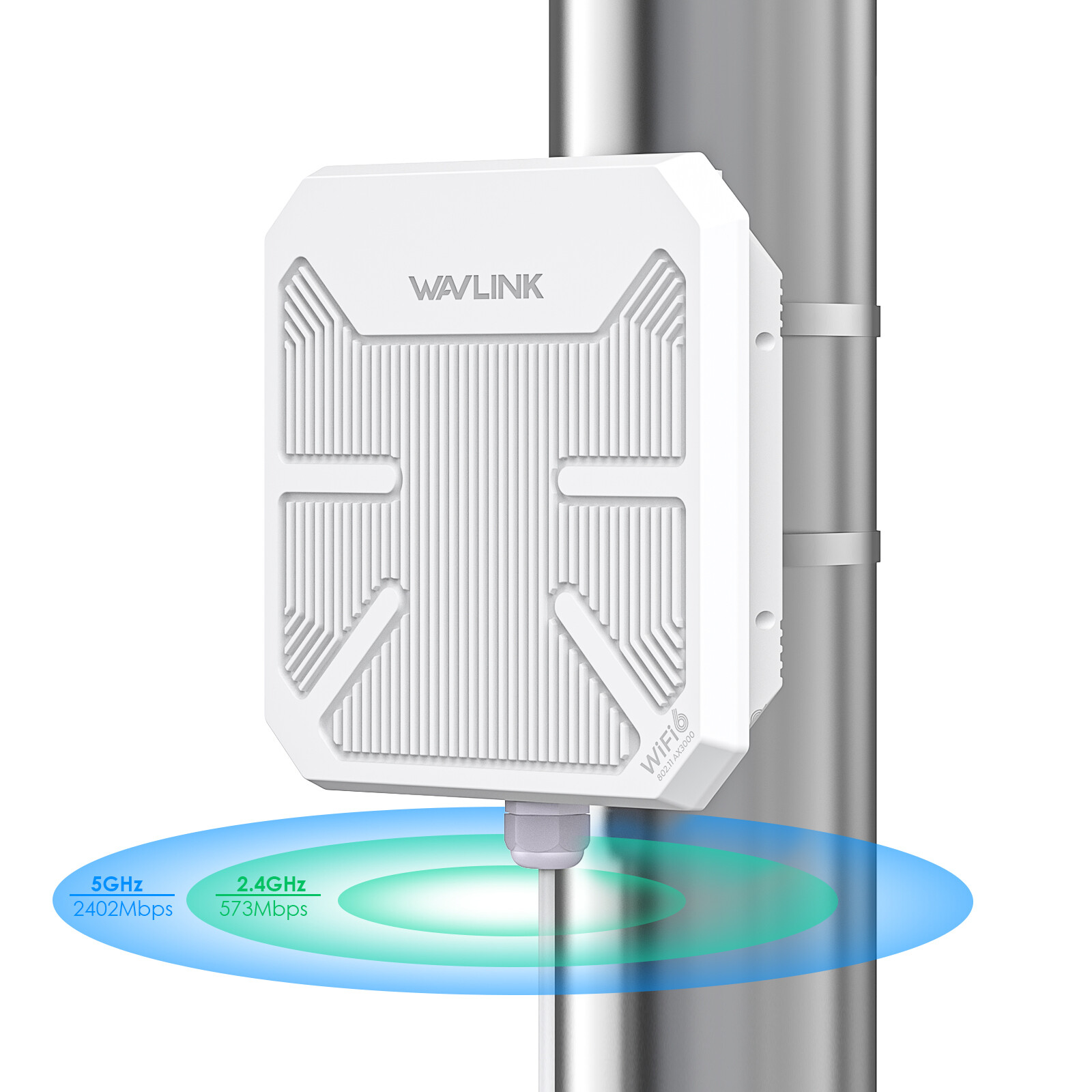

WAVLINK AX3000 AX1800 OUTDOOR EXTENDER WIFI 6 ROUTER MESH REPEATER AP BOOSTER For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

WAVLINK AX3000 AX1800 OUTDOOR EXTENDER WIFI 6 ROUTER MESH REPEATER AP BOOSTER

Price: US $199.99

WAVLINK WiFi 6 Outdoor Access Point Series | Comparison & Buying Guide

WAVLINK Outdoor WiFi 6 Series

Outdoor Access Point Comparison & Buying Guide

AX3000 & AX1800 · IP67 Weatherproof · PoE Powered · Mesh Ready

WiFi 6 (802.11ax) IP67 Dustproof & Waterproof Active & Passive PoE Seamless Mesh Up to 3km Transmission Up to 256 Devices Key Shared Features (Common Selling Points)

Every model in this series is built on the same outdoor-ready foundation.

WiFi 6 (802.11ax): All offer the latest standard for faster speeds, higher capacity, and better efficiency.
Dual-Band: Operate on both 2.4GHz and 5GHz bands.
Outdoor Ruggedness (IP67): Dustproof and waterproof housing for harsh environments.
PoE Powered: Flexible installation using Power over Ethernet (802.3af/at Active & Passive supported).
Multiple Modes: Support Access Point (AP), Range Extender/Repeater, and Mesh modes for versatile deployment.
Mesh Capability: Can form seamless mesh networks with other compatible WAVLINK models (specifics vary).
Enhanced Coverage: Utilize high-gain antennas and signal amplifiers (PA & LNA) for better range and penetration.
Security: Support WPA2-PSK and WPA2/WPA3-MIX encryption.
Weather Protection: Include lightning and ESD protection (levels vary).

Summary of Key Differences & USPs

Four models, four clear strengths — pick the one that matches your deployment.

Directional Long-Range ChampionWN573HP3

Best for point-to-point (PtP) or point-to-multipoint (PtMP) links up to 3km. Features high-gain 12dBi built-in directional antennas and highest device capacity (256). Ideal for connecting distant buildings or surveillance points.

Durability & BalanceWN573HX3

Features robust fiberglass tube omnidirectional antennas for excellent weather/corrosion resistance. Offers balanced AX3000 performance and omni coverage. Good general-purpose outdoor AP.

Wide-Coverage OmniWN588HX3

6 x 7dBi omnidirectional antennas provide potentially the broadest omni-directional coverage area. Also the lightest and most compact AX3000 model. Ideal for covering large open outdoor areas uniformly.

Best ValueWN573HX1

AX1800 speeds (574 + 1201 Mbps) at a lower cost point than AX3000 models. Still features IP67, PoE, Mesh, and durable fiberglass antennas. Ideal for cost-conscious deployments where top speed isn't critical.

Product Comparison at a Glance

Split into two focused tables so every spec stays easy to read on any screen.

Table 1 — Performance, Antennas & CoverageModelWiFi StandardSpeed ClassDual-Band SpeedAntennasCoverage / TransmissionMax DevicesWN573HP3IEEE 802.11 ax/ac/a/n/g/bAX30002.4GHz 573Mbps + 5GHz 2402Mbps4 × 12dBi built-in directional antennasLong-distance wireless data transmission over 3km / 1.9 miles (paired PtP or PtMP, tested in barrier-free field)256WN573HX3IEEE 802.11 ax/ac/a/n/g/bAX30002.4GHz 573Mbps + 5GHz 2402Mbps4 × 8dBi omnidirectional fiberglass tube antennas (detachable)High-gain fiberglass tube antennas + two built-in high-power amplifiers for extreme coverage and penetration128WN588HX3IEEE 802.11 ax/ac/a/n/g/bAX30002.4GHz 573Mbps + 5GHz 2402Mbps6 × 7dBi high-gain antennas (detachable)Outdoor signal coverage up to 300m / 984ft with built-in high-power amplifiers256WN573HX1IEEE 802.11 ax/ac/a/n/g/bAX18002.4GHz 574Mbps + 5GHz 1201Mbps4 × 8dBi omnidirectional fiberglass tube antennas (detachable)High-gain fiberglass tube antennas + two built-in high-power amplifiers for extreme coverage and penetrationMesh multi-device access

← Swipe horizontally to view the full table →

Table 2 — Protection, PoE, Modes & Mesh PairingModelWeatherproofingLightning / ESD ProtectionPoE PowerWorking ModesMesh InterconnectionSize / WeightWN573HP3IP67 waterproof housing, weatherproof design15kV ESD protection802.3af/at Active PoE + Passive PoERouter / AP / Range Extender / Mesh Router / Mesh Extender; supports Fat AP and Fit AP (with WAVLINK AC controller)WN586X3, WN583AX3, WN573HX324 × 24 × 7cm; 1050gWN573HX3IP67 waterproof enclosure15kV ESD + 6kV lightning protection802.3af/at Active PoE + Passive PoEMesh / AP / Router / Repeater / AP+RepeaterWN586X3, WN572HP3 (latest firmware required), WN573HX324 × 24 × 7cm (without antennas); 1109g (without antennas); antennas 40cmWN588HX3IP67 waterproof housing, weatherproof designLightning protection802.3af / 802.3at / 48V PoE with included PoE adapterMesh / AP / Router / Repeater / AP+Repeater; supports Fat AP and Fit AP (with WAVLINK AC controller)WN586X3, WN583AX3, WN573HX317 × 17.3 × 5.1cm; 552gWN573HX1IP67 waterproof enclosure15kV ESD + 6kV lightning protection802.3af/at Active PoE + Passive PoEMesh / AP / Router / Repeater / AP+RepeaterWN531AX2, WN583AX1, WN573HX124 × 24 × 7cm (without antennas); 1109g (without antennas); antennas 40cm

← Swipe horizontally to view the full table →

Which One Should You Choose?

Match the deployment scenario to the model built for it.

Long-Distance LinksWN573HP3

Choose this when you need to bridge distant buildings, connect remote surveillance points, or build PtP / PtMP links over long distances — up to 3km in a barrier-free field. The 4 × 12dBi built-in directional antennas and 256-device capacity make it the long-range champion of the series.

General Outdoor APWN573HX3

Choose this for a balanced, all-purpose outdoor AP. Fiberglass tube omnidirectional antennas deliver excellent weather and corrosion resistance with strong wind resistance, while AX3000 performance and omni coverage suit everyday outdoor networking.

Wide Open AreasWN588HX3

Choose this for large open outdoor areas such as factories, communities and streets. 6 × 7dBi omnidirectional antennas extend coverage up to 300m/984ft and support up to 256 devices — in the lightest and most compact AX3000 body of the series.

Value-Focused DeploymentsWN573HX1

Choose this for cost-conscious projects. AX1800 speeds (574 + 1201 Mbps) still come with IP67 protection, 15kV ESD and 6kV lightning protection, PoE, Mesh, and durable fiberglass tube antennas.

WN573HP3 · AX30003000Mbps – Outdoor/Indoor – Built in 4×12dBi Antennas – White & Camouflage

WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE / 4x12dBi High-gain Antennas / IP67 Weatherproof Enclosure / Signal Booster Amplifier

Features【🌐Designed for Harsh Outdoor Conditions】 IP67-rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.【🌐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can enjoy HD videos, smooth gaming, etc. even outdoors.【🌐Optional PoE Power Supply】 Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.【🌐Seamless WiFi Roaming】 The built-in 4x12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.【🌐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.【🌐3Km Wireless Data Transmission】 Specially designed for outdoor uses, ideal for long distance wireless data transmission over 3km/1.9miles (only for paired PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the transmission and reception performance of wireless signal.WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere

WN573HP3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; 4 x built-in 12dBi high gain antennas provide better wireless performance and super fast transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 256 devices to be connected simultaneously in a wider range.

Specification

Model: WL-WN573HP3
Product Size: 24x24x7cm / 9.4x9.4x2.8in
PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
Product Weight: 1050g / 37oz
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band/Speed: 2.4GHz(573Mbps) + 5GHz(2402Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 4 x 12dBi Directional Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green

Features

Supports for dual band (2.4G 573Mbps + 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
Supports one WAN/LAN Ethernet Gigabit port.
Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
Supports Fat AP Mode.
Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2-3 meters above the ground for better performance.
④ Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤ The real performance of the product may vary in accordance with different environmental conditions.

In the Box

1 × AX3000 WiFi 6 Outdoor Access Point
1 × 54V Power Adapter
4 × Cable Ties
1 × PoE Converter
2 × Silicone Pads
1 × Ethernet Cable
1 × Main Body Holder
1 × PWM M4×8×8MM Screw
1 × Wrench
6 × KA M4×25×6MM Screws
1 × Quick Start Guide
6 × Φ8x25MM Screw Plugs

WN573HX3 · AX30003000Mbps – Outdoor/Indoor – 4×8dBi Antennas – White & Camouflage

WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere

WN573HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.

【⭐Designed for Harsh Outdoor Conditions】 Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.【⭐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.【⭐Optional PoE Power Supply】 Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.【⭐Seamless WiFi Roaming】 The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.【⭐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.Fiberglass Tube High Gain Antennas

4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure

Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply

Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

573Mbps on 2.4G & 2402Mbps on 5G

Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers

Dual integrated signal boosters efficiently strengthen the wireless performance. The PA (power amplifier) increases the power output while the LNA (low-noise amplifier) minimizes additional noises and increases the wireless signal.

Advanced WiFi Safeguard

WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

Model: WL-WN573HX3
Product Size (without antennas): 24x24x7cm / 9.4x9.4x2.8in
PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
Product Weight (without antennas): 1109g / 39.1oz
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band/Speed: 2.4GHz(573Mbps) + 5GHz(2402Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 4 x 8dBi Omnidirectional Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green

Features

Supports for dual band (2.4G 573Mbps + 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
Supports one WAN/LAN Ethernet Gigabit port.
Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
Glass tube antenna for high precision, corrosion resistance, long life, strong wind resistance.
Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.

Warm Tips

① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2-3 meters above the ground for better performance.
④ Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3 (*Latest firmware required) and WN573HX3.

In the Box

1 x AX3000 WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws

Passive PoE (Optional)

1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable

WN588HX3 · AX30003000Mbps – Outdoor/Indoor – Built in 6×7dBi Antennas – White & Camouflage

WAVLINK WiFi6 Outdoor Access Point, Dual Band 2.4G+5G AX3000 Long Range Outdoor WiFi Mesh Extender with PoE / 6x7dBi High-gain Antennas / IP67 Weatherproof Enclosure / Signal Booster Amplifier

【🌐Designed for Harsh Outdoor Conditions】 IP67-rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates of extreme cold, heat or continuous moisture. Lightning protection and weatherproof design ensure stable connection in harsh outdoor conditions. Note: The PoE part of the router is not waterproof.【🌐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN588HX3, you can enjoy HD videos, smooth gaming, etc. even outdoors.【🌐Seamless WiFi Roaming】 The 6x7dBi omni-directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.【🌐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with a single network name and password.【🌐Powered by PoE and Flexible Installation】 Supporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls.573Mbps on 2.4G & 2402Mbps on 5G

Access More Devices

Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.

Worry-Free WiFi Coverage

Enhanced by built-in high-power amplifiers and 6x7dBi omni-directional antennas to extend outdoor signal coverage up to 300m (984ft).

Specification

Model: WL-WN588HX3
Product Size: 17x17.3x5.1cm / 6.7x6.8x2in
PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
Product Weight: 552g / 19.5oz
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band/Speed: 2.4GHz(573Mbps) + 5GHz(2402Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 6 x 7dBi High-Gain Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green

Features

Supports for dual band (2.4G 573Mbps + 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
Supports one WAN/LAN Ethernet Gigabit port.
Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
3x7dBi 5GHz, 3x7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
Encryption type: OPEN, WPA2-PSK, WPA3/WPA2 MIX.
Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
Supports Fat AP Mode.
Supports Fit AP Mode with WAVLINK AC controller.

Warm Tips

① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④ The real performance of the product may vary in accordance with different environmental conditions.

In the Box

1 × AX3000 WiFi 6 Outdoor Access Point
4 × Plastic Cable Ties
1 × Main Body Holder
6 x 7dBi Antennas
1 × Wrench
1 × 54V Power Adapter
1 × PoE Converter
1 × Ethernet Cable
1 × PWM M3×5×6MM Screw
6 × KA M3×20×5.2MM Screws
6 × Φ6.5x25MM Screw Plugs
1 × Quick Start Guide

WN573HX1 · AX18001800Mbps – WiFi 6

WAVLINK WiFi 6 Outdoor Access Point with IP67 Housing, PoE, Mesh and Fiberglass Tube High-Gain Antennas

Features【⭐Designed for Harsh Outdoor Conditions】 Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.【⭐Enjoy True WiFi 6 Speed】 The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX1, you can enjoy HD videos, smooth gaming, etc. even outdoors.【⭐Optional PoE Power Supply】 Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.【⭐Seamless WiFi Roaming】 The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.【⭐Multiple Modes, Flexible Use】 Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.Fiberglass Tube High Gain Antennas

4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.

IP67 Waterproof Enclosure

Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.

PoE Power Supply

Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.

574Mbps on 2.4G & 1201Mbps on 5G

Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.

High Power Amplifiers

Advanced WiFi Safeguard

WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.

Specification

Model: WL-WN573HX1
Product Size (without antennas): 24x24x7cm / 9.4x9.4x2.8in
PoE Converter Size: 4.4x3.7x2.2cm / 1.7x1.5x0.9in
Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
Product Weight (without antennas): 1109g / 39.1oz
Standard: IEEE 802.11 ax/ac/a/n/g/b
Frequency Band/Speed: 2.4GHz(574Mbps) + 5GHz(1201Mbps)
Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
Antennas: 4 x 8dBi Omnidirectional Antennas
PAIR/RESET LED: Blue
PoE Converter Status LED: Green

Features

Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
Supports 802.3 AT/AF active PoE and passive PoE to supply power.
Fiberglass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
Supports dual band (2.4G 573Mbps + 5G 1201Mbps) with combined speeds of up to 1800Mbps.
Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
Encryption type: WPA2-PSK, WPA3/WPA2-MIX.

Warm Tips

① The PoE converter is not waterproof, please install it indoors.
② Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③ Please install the product 2-3 meters above the ground for better performance.
④ Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.

In the Box
