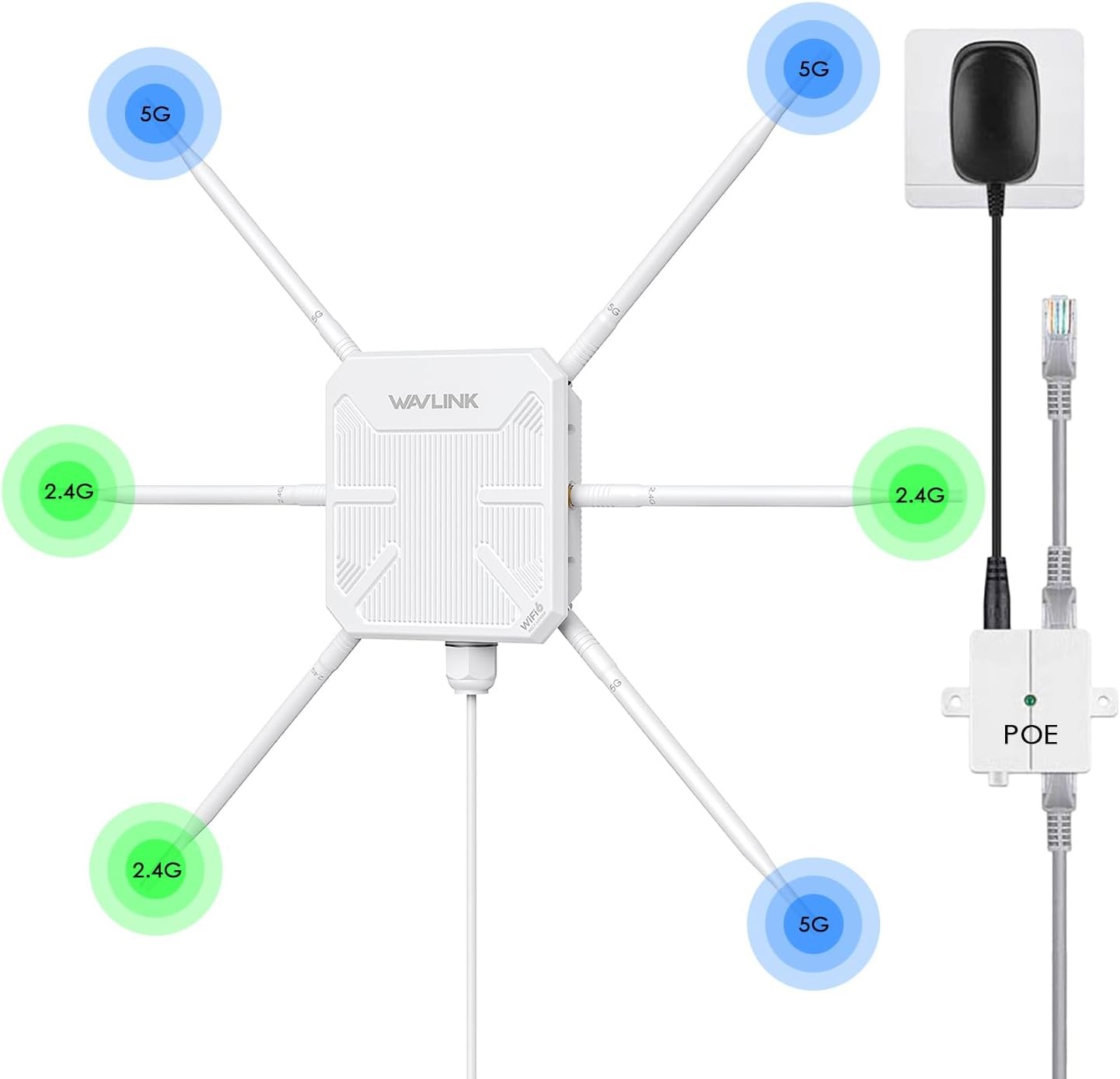

WAVLINK · AX3000 · OUTDOOR WiFi 6AX3000 Outdoor WiFi 6 ExtenderIP67 · 15kV ESD · PoE · 6 × 7dBi Antennas · 256 DevicesLong-range WiFi repeater / access point for garage, yard, RV and farm. Weatherproof housing, lightning protection and Everything Mesh — all powered by a single Ethernet cable.⛅ IP67 Waterproof⚡ 15kV ESD Protection📡 Everything Mesh🔌 802.3af/at PoE👥 256 Devices3000MbpsCombined Speed2402Mbps5GHz Antennas552gCompact ChassisFeaturesProfessional Outdoor WiFi 6, Anytime & AnywhereWN588HX3 is a high-performance outdoor router / AP / repeater built specifically for demanding outdoor deployments.⛅Designed for Harsh Outdoor ConditionsIP67-rated waterproof housing ensures continued operation in extreme cold, heat or continuous moisture. Lightning protection and a weatherproof design keep the connection stable. Note: the PoE part is not waterproof.⚡Enjoy True WiFi 6 SpeedNext-generation WiFi compliant with IEEE 802.11 ax/ac/a/b/g/n. Dual-band speeds up to 5GHz 2402Mbps and 2.4GHz 573Mbps, avoiding interference and congestion. Enjoy HD videos and smooth gaming even outdoors.📡Seamless WiFi RoamingThe 6 × 7dBi omnidirectional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Everything Mesh technology connects more devices with one click, greatly expanding coverage and eliminating every dead zone.⚙Multiple Modes, Flexible UseSupports Mesh, AP, Router, Repeater and AP+Repeater modes to fit every outdoor scenario. Router/AP mode converts wired connections into wireless networks; Mesh mode gives you a single network name and password.🔌Powered by PoE & Flexible InstallationSupporting 802.3af/802.3at/48V PoE Power over Ethernet with the included PoE adapter, this device offers flexible deployment and convenient installation with its mounting bracket design. It can be easily mounted on poles or walls — no outdoor power outlet needed.Built for Serious Outdoor CoverageRobust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions. 6 × 7dBi high-gain antennas provide better wireless performance and super-fast transmission rates. Compliant with IEEE 802.11 ax/ac/a/n/g/b, delivering blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps + 5GHz 2402Mbps). MU-MIMO and Beamforming technology allow up to 256 devices to be connected simultaneously across a wider range. InstallationHow to Install the Ethernet CableFollow these five steps to secure the waterproof RJ45 connection.1 Pass the RJ45 cable through the waterproof connector cover. 2 Screw the waterproof seal into the waterproof connector bracket. 3 Pass the RJ45 cable through the waterproof connector bracket, then screw the bracket into the cover. 4 Put the waterproof sealing ring on the waterproof connector bracket. 5 Connect the RJ45 cable to the WAN/LAN port. ⚠ Note: The PoE converter is not waterproof — install it indoors. Please ensure your Ethernet cable is CAT5E or above and shorter than 100m / 328ft. SpecificationTechnical DetailsModelWL-WN588HX3StandardIEEE 802.11 ax / ac / a / n / g / bFrequency / Speed2.4GHz (573Mbps) + 5GHz (2402Mbps)Antennas6 × 7dBi Omnidirectional AntennasWireless SecurityWPA2-PSK · WPA2 / WPA3-MIXProduct Size17 × 17.3 × 5.1 cm / 6.7 × 6.8 × 2 inPoE Converter Size4.4 × 3.7 × 2.2 cm / 1.7 × 1.5 × 0.9 inCable LengthEthernet: 100 cm / 39.4 in
Power Adapter: 130 cm / 51.2 inProduct Weight552 g / 19.5 ozLED IndicatorsPAIR / RESET: Blue · PoE Converter Status: GreenIn the BoxWhat You’ll Receive✓1 × AX3000 WiFi 6 Outdoor Access Point ✓6 × 7dBi Antennas ✓1 × 54V Power Adapter · 1 × PoE Converter · 1 × Ethernet Cable ✓1 × Main Body Holder · 4 × Plastic Cable Ties ✓1 × Wrench · 1 × PWM M3×5×6mm Screw · 6 × KA M3×20×5.2mm Screws ✓6 × Φ6.5×25mm Screw Plugs · 1 × Quick Start Guide Warm TipsBefore You Install01The PoE converter is not waterproof — please install it indoors.02Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m / 328ft.03Mesh interconnection: under mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.04The real performance of the product may vary in accordance with different environmental conditions.WAVLINKAX3000 WiFi 6 OUTDOOR EXTENDER · WL-WN588HX3 · IP67 · PoE · MESH
