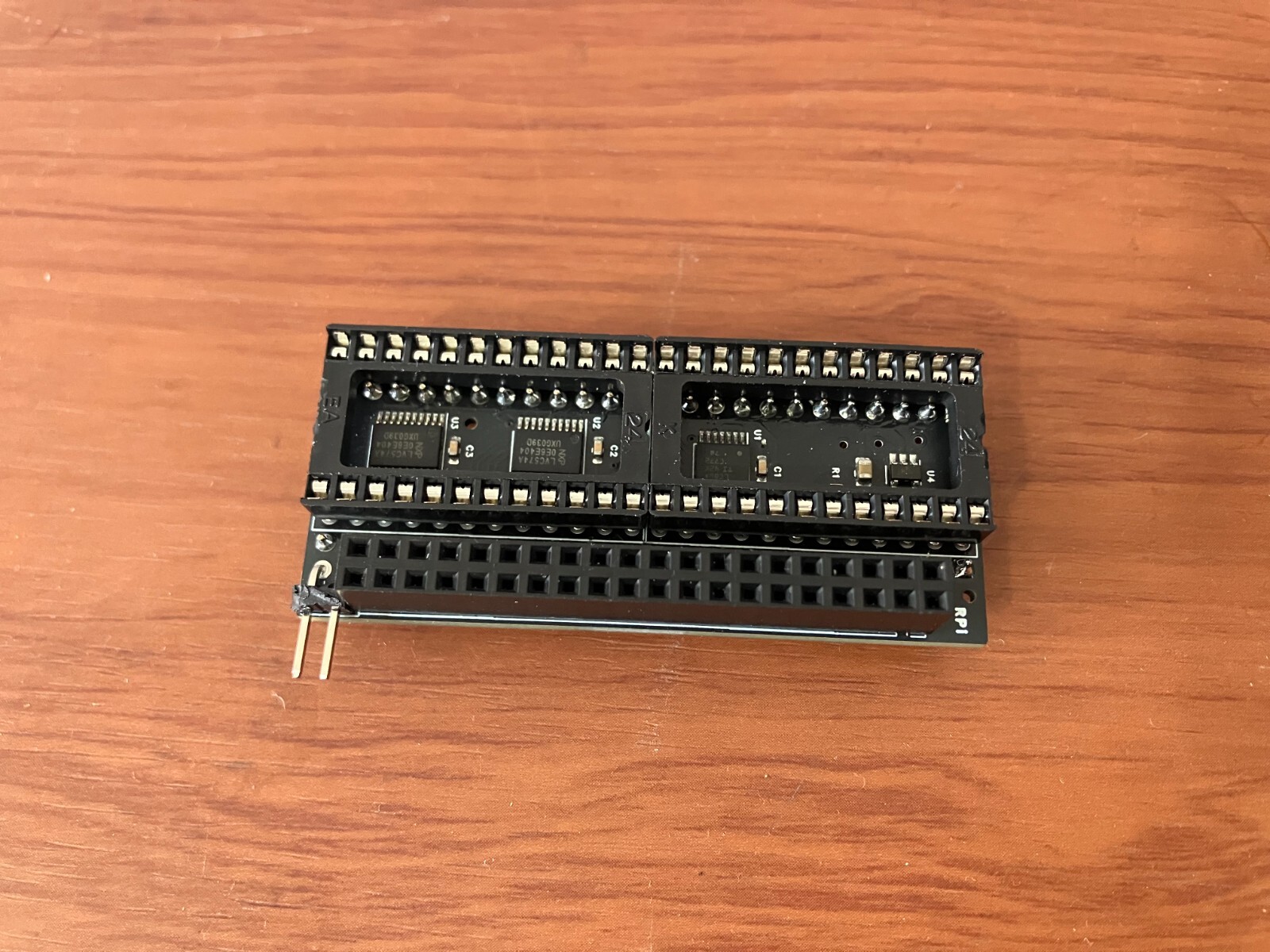

Amiga 500 RGB To Digital Video Output Adapter For HDMI-Compatible devices

Price: GB $20.04

Amiga 500 RGB To Digital Video Output Adapter For HDMI-Compatible devices

Many thanks to hoglet67's (David Banks) great design! For more details please visitGitHub project:RGBtoHDMI
No soldering skill required.
What you will get:

1. OneRGBtoHDMI Adapter 2. One 2.54mm Jumper cap

Requirements:

. 1. Raspberry Pi Zero 2. Micro SD card 3. HDMI Mini to HDMI A cable

Optional: You couldattach a push button to pin header on the top of the board. It's not necessary so we do not provide it.
Quick installation:
- remove Denise chip from your Amiga
- put Denise chip into the RGBtoHDMI adapter
- put RGBtoHDMI together with Denise chip into Denise socket on your Amiga 500 motherboard
- connect button on the cable into RGBtoHDMI adapter
- put Raspberry Pi Zero into RGBtoHDMI adapter
- put preloaded micro SD card into Raspberry Pi Zero micro SD slot
- connect mini HDMI cable
If you are using a rev.6 motherboard, please note that there are several plug-in capacitors next to the denise chip, which may contact the adapter's solder joints. Please be sure to bend these capacitors before installation.

Special thanks to:hoglet67- style="">Thanks for author's contribution! Respect!
