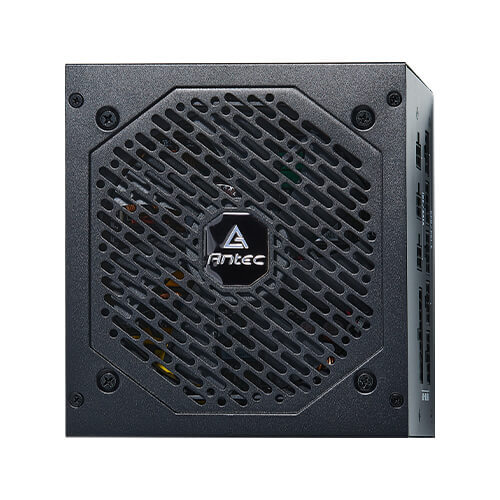

NEoeco
gold modular 850W
850W Continuous Power™ - Guaranteed 850W of Continuous Power from Antec
100% Modular - Improves airflow and reduces clutter
80 PLUS® Gold certified -Reduce your electricity bill
PhaseWave™ Design - A server-class LLC design with a synchronous rectification based on a DC-DC topology
Antec Quality 7-year warranty
120mm Silent Fan - Whisper-quiet high-quality fluid-dynamic bearing fan with long life time
Zero RPM Manager - An advanced low voltage fan control with fan-off mode at low loads for absolute silence
99%+12V - Output for maximum CPU & GPU support
CircuitShield™－Full suite of industrial grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
High-Quality JP capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance
28(18+10) pin MBU socket - For possible future MBU connectors
ATX 12V 2.4－Engineered according to the newest PSU guideline and compatible with the latest CPU generation
SPECIFICATIONS
ModelNE850G M
TypeATX 12V 2.4
ModularFully
Dimension150(L) x 140(W) x 86(H)
Warranty7 years
Input Voltage100-240 VAC
Input Current10A MAX
Input Frequency Range50Hz-60Hz
PFCActive PFC
Power Good Signal100-500ms
EfficiencyUp To 92%
ProtectionOCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
Output Capacity850W
Operation Temperature0~40°C
RegulatorycTUVus / TUV / CB / RCM / CE / CCC / FCC / KC
Fan120mm Silence Fan
Certifications80 Plus Gold
Connector1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
6 x 8(6+2) Pin PCI-E
10 x SATA
5 x Molex
1 x FDD
Net Weight1.38 kgs
Gross Weight2.55 kgs
