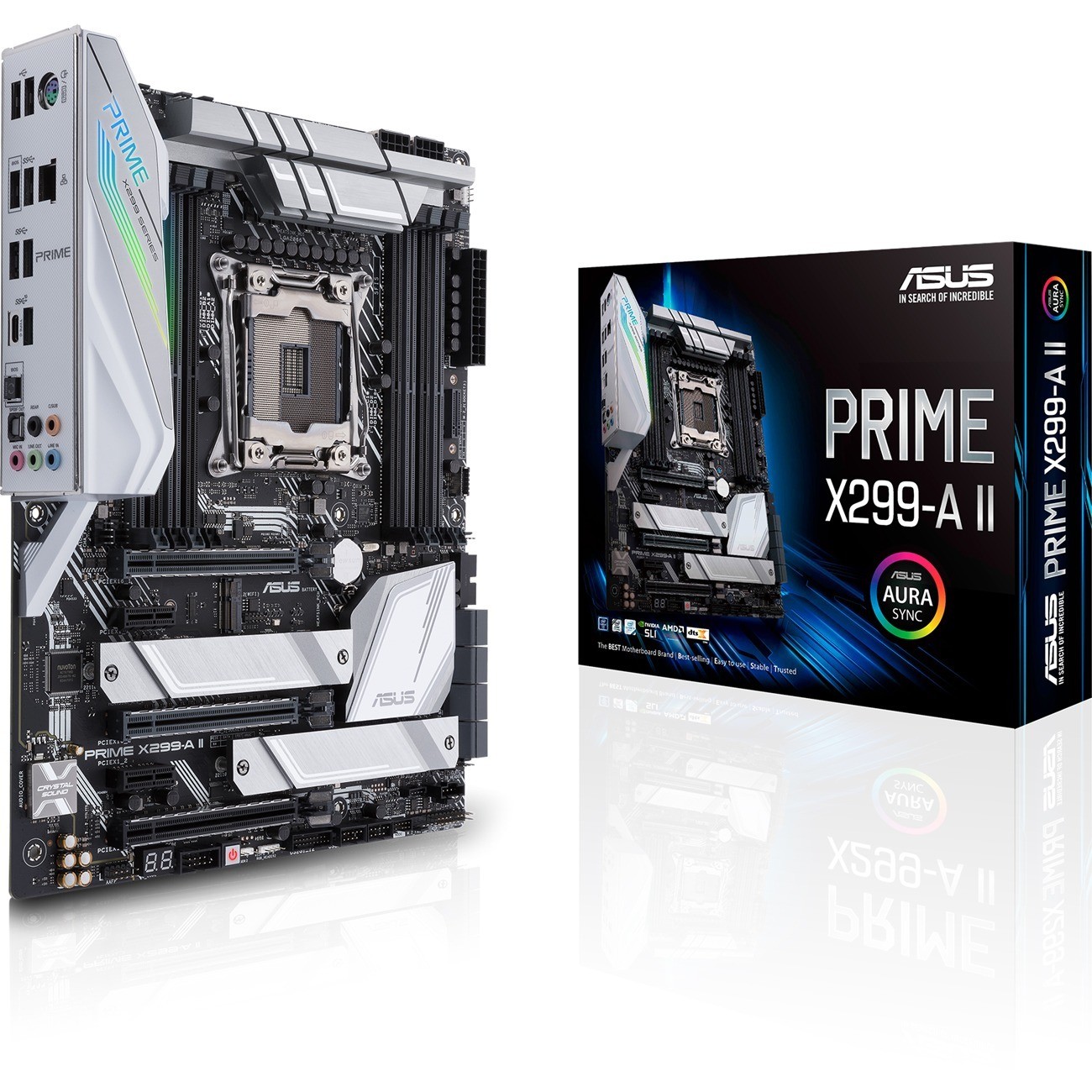

Asus Prime X299-A II Desktop Motherboard - Intel Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - ATX (primex299-aii) Asus Prime X299-A II Desktop Motherboard - Intel Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - ATX (primex299-aii)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: Prime X299-A II Desktop Motherboard User's Manual 1 x Vertical M.2 Bracket Set 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Country of Origin: China

Product Description

This item is brand-new, factory sealed.

Intel LGA 2066 socket: Ready for the latest Intel Core X-series processors

AI Overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts

Robust power design: 12 IR3555 power stages, ProCool II connectors, alloy chokes and ultra-durable capacitors for stable power delivery

M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20 C for unthrottled transfer speeds and enhanced reliability

Next-gen connectivity: Intel Optane memory ready, Intel VROC support, dual M.2 support, and USB 3.2 Gen Type-C


The Prime X299-A II caters to users with serious pursuits: Those who prefer to put their high-core-count processors to more productive use. This high-end desktop board combines cutting-edge performance with our signature features, including an enhanced VRM tailored for running the CPU performance at stock speeds, intuitive cooling control, next-gen connectivity, and extensive customization.

Get the most out of all your cores

Intel's high-end desktop platform raises the stakes with updated Intel Core X-Series Processors that boast cores, cache, and bandwidth. The Prime X299-A II is ready for the additional processing power that plows through CPU-intensive tasks, and the extra bandwidth allows you to add more GPUs and NVMe SSDs to accelerate a wide range of work.

Robust Power Design

The LGA 2066 socket is compatible with Intel Core X-Series Processors with up to 18 cores, over 44 PCI Express lanes, and 165-watt thermal design power (TDP). Those specs require serious power, so the Prime X299-A II is equipped with an enhanced power solution that includes 12 power stages that line up neatly along the top edge of the PCB.
CPU
Intel Socket 2066 CoreTM X-Series Processors
The Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Chipset
Intel X299
Memory
(Intel CoreTM i9 10000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 MHz Non-ECC, Un-buffered Memory
(Intel CoreTM i9 9000/7000 and i7 9000 X-Series CPU)
8 x DIMM, Max. 256GB, DDR4 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Multi-GPU Support
Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireXTM Technology
Supports AMD 3-Way CrossFireXTM Technology
Expansion Slots
48-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0/2.0 x1 1
44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
2 x PCIe 3.0/2.0 x1 1
28-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16, x16/x8) 2
2 x PCIe 3.0/2.0 x1 2
1 x M.2 Socket 1 with E key, type 2230 for WIFI/BT devices support PCIE/USB mode
The Wi-Fi E key shares bandwidth with PCIEX1_1.
The Wi-Fi/BT module is purchased separately
Storage
Intel X299 Chipset : 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) 3
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 4
8 x SATA 6Gb/s port(s) 5
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
(Intel CoreTM i9 10000 X-Series CPU) :
2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology Enterprise supports
(Intel CoreTM i9 9000/7000 and i7 9000 X-Series CPU) :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology 15 support
Intel OptaneTM Memory Ready 6
LAN
Intel I219V, 1 x Gigabit LAN
ASUS Turbo LAN Utility
ASUS LAN Guard
Audio
Realtek S1220A 8-Channel High Definition Audio CODEC
- Power pre-regulator reduces power input noise to ensure consistent performance
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- DTS X:Ultra
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports
ASMedia USB 3.2 Gen 2 controller : 1
1 x USB 3.2 Gen 2 front panel connector port(s)
ASMedia USB 3.2 Gen 2 controller : 1
2 x USB 3.2 Gen 2 (up to 10Gbps) port(s) (2 at back panel, , Type-A + USB Type-CTM)
Intel X299 Chipset :
8 x USB 3.2 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel X299 Chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Special Features
OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo Core App
AI Overclocking
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, strikes and static-electricity discharges
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS SafeSlot - Protect your graphics card Investment
AURA :
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Addressable Gen 2 Header
ASUS Exclusive Features :
- USB BIOS FlashBackTM
- AI Suite 3
- Ai Charger
- Onboard Button : Power
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- ASUS CrashFree BIOS 3
- Turbo LAN
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- BIOS FlashBackTM Button
ASUS Quiet Thermal Solution :
- Stylish Fanless Design with M.2 Heat-sink solution
- ASUS Fan Xpert 4
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Intel Virtual RAID on CPU (VROC) ready
DIY Friendly Design
- ProCool II
- SafeSlot
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1
2 x USB 2.0 (one port can be switched to USB BIOS FlashBackTM)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS FlashBackTM Button(s)
2 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
Internal I/O Ports
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1 front panel TypeCTM connector
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x AIO_PUMP connector
1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support
1 x 24-pin EATX Power connector(s)
2 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x CPU_OV jumper
1 x Q-Code
Accessories
Users manual
1 x Vertical M.2 bracket set
1 x ASUS Fan Holder
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, F4 AURA ON/OFF and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc
Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System
Windows 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note
1. PCIEX1_1 shares bandwidth with Wi-Fi E Key. PCIEX1_1 is disabled by default.
PCIEX1_2 shares bandwidth with SATA6G_7. PCIEX1_2 is disabled by default.
2. PCIeX16_3 will be disabled when using 28-lane CPU.
3. The M.2_2 socket shares bandwidth with SATA6G_1 port when using M.2 SATA devices.
4. The M.2_1 PCIe mode source is from X299 Chipset when using 44 and 28-lane CPU.
5. The SATA6G_7 shares bandwidth with PCIeX1_2.
6. The M.2 PCIE mode source from X299 Chipset supports Intel Optane Memory
Item Dimension (L"xW"xH")
10 x 6 x 3
Weight
6.37 LB
Warranty Information
3 years
Package Contents:

• Prime X299-A II Desktop Motherboard
• User's Manual
• 1 x Vertical M.2 Bracket Set
• 1 x ASUS Fan Holder
• 4 x SATA 6Gb/s cable(s)
• 2 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x Q-Connector
• 1 x Extension Cable for RGB strips (80 cm)
• 1 x Extension cable for Addressable LED

SpecificationPhysical CharacteristicsForm Warranty3 YearI/O ExpansionsNumber of PCI Express x1 Slots2Total Number of Expansion Slots5Number of PCI Express x16 Slots3Total Number of PCI Express Slots5MemoryMemory TechnologyDDR4 SDRAMNumber of Memory Slots8Memory Speed Supported

• 4266 MHz
• 4133 MHz
• 4000 MHz
• 3866 MHz
• 3800 MHz
• 3733 MHz
• 3600 MHz
• 3466 MHz
• 3400 MHz
• 3333 MHz
• 3300 MHz
• 3200 MHz
• 3000 MHz
• 2933 MHz
• 2800 MHz
• 2400 MHz
• 2133 MHz
• 2666 MHz

Memory Form Factor
