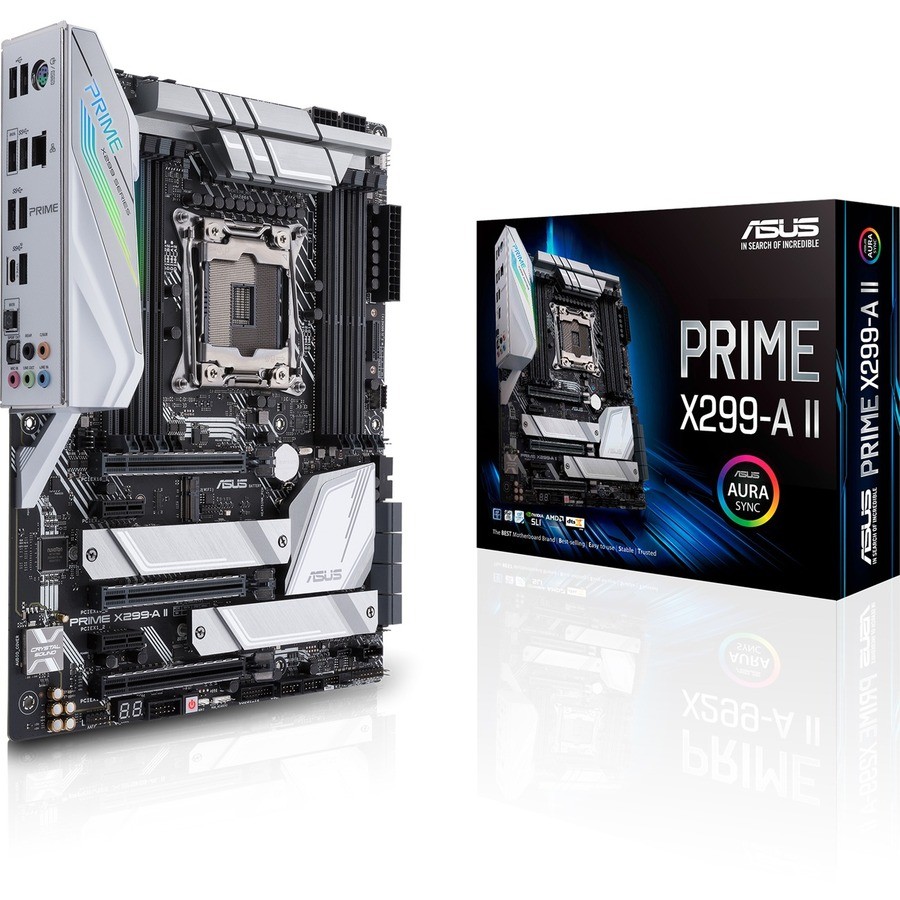

Asus Prime X299-A II Desktop Motherboard Intel X299 Chipset Socket R4 LGA-2066 Intel Optane Memory Ready ATX 256 GB DDR4 SDRAM Maximum RAM UDIMM DIMM 8 x Memory Slots Gigabit Ethernet 8 x SATA Interfaces PRIMEX299AII Brand: ASUS UPC: 0192876488591 Mfr Part #: PRIMEX299AII
General Information
Intel ATX motherboard LGA 2066 for Intel Core X-series processors, with AI Overclocking, 12 IR3555 power stages, DDR4 4266 MHz, Triple M.2, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting
- Intel LGA 2066 socket: Ready for the latest Intel® Core™ X-series processors
- AI Overclocking: Quickly optimizes your CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
- Robust power design: 12 IR3555 power stages, ProCool II connectors, alloy chokes and ultra-durable capacitors for stable power delivery
- M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20° C for unthrottled transfer speeds and enhanced reliability
- Next-gen connectivity: Intel Optane memory ready, Intel® VROC support, dual M.2 support, and USB 3.2 Gen Type-C™
PRIME
The Prime X299-A II caters to users with serious pursuits: Those who prefer to put their high-core-count processors to more productive use. This high-end desktop board combines cutting-edge performance with our signature features, including an enhanced VRM tailored for running the CPU performance at stock speeds, intuitive cooling control, next-gen connectivity, and extensive customization.
Get the most out of all your cores
Intel®'s high-end desktop platform raises the stakes with updated Intel Core™ X-Series Processors that boast cores, cache, and bandwidth. The Prime X299-A II is ready for the additional processing power that plows through CPU-intensive tasks, and the extra bandwidth allows you to add more GPUs and NVMe SSDs to accelerate a wide range of work.
Robust Power Design
The LGA 2066 socket is compatible with Intel Core X-Series Processors with up to 18 cores, over 44 PCI Express® lanes, and 165-watt thermal design power (TDP). Those specs require serious power, so the Prime X299-A II is equipped with an enhanced power solution that includes 12 power stages that line up neatly along the top edge of the PCB.
ProCool II connector
ProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines. The second-generation features upgrades of metal amour and solid pins for better heat dissipation, as well as a warning LED-display with a BIOS POST message to indicate an improper connection.
PowIRstage MOSFETS
Prime X299-A II VRM is comprised of 12 IR3555 PowIRstages®, each rated to handle 60 amps
Microfine Alloy choke
Each PowIRstage is accompanied by a high-permeability alloy-core choke rated to handle 45 amps.
Make your memory go faster
The X299 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. With optimized trace layout, the Prime X299-A II can hit memory speeds up to DDR4 4266 MHz or beyond.
Multi-GPU support
Fully loaded takes on a new meaning when you have over 44 PCI Express lanes stemming from the CPU. Those lanes can be split in an x16/x16/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of work.
M.2Achieve speed with onboard M.2
Professional applications require fast solid-state storage, which is why the Prime X299-A II is equipped with three M.2 slots that are compatible with the latest NVMe SSDs. All slots support longer 110 mm drives, and they can be configured into bootable RAID arrays connected directly to the CPU via Intel VROC technology.
Processor & ChipsetChipset Manufacturer:IntelChipset Model:X299Total Processor Supported:1Processor Socket:Socket R4 LGA-2066Processor Supported:Core X-SeriesMulti GPU Supported:CrossFireXMulti GPU Supported:SLI
MemoryNumber of Memory Slots:8Memory Form Factor:UDIMMMemory Form Factor:DIMMMaximum Memory Supported:256 GBMemory Technology:DDR4 SDRAMMemory Speed Supported:4266 MHzMemory Speed Supported:4133 MHzMemory Speed Supported:4000 MHzMemory Speed Supported:3866 MHzMemory Speed Supported:3800 MHzMemory Speed Supported:3733 MHzMemory Speed Supported:3600 MHzMemory Speed Supported:3466 MHzMemory Speed Supported:3400 MHzMemory Speed Supported:3333 MHzMemory Speed Supported:3300 MHzMemory Speed Supported:3200 MHzMemory Speed Supported:3000 MHzMemory Speed Supported:2933 MHzMemory Speed Supported:2800 MHzMemory Speed Supported:2400 MHzMemory Speed Supported:2133 MHzMemory Speed Supported:2666 MHzIntel Optane Memory Ready:Yes
I/O ControllerController Type:Serial ATA/600Intel VROC:YesIntel RST:YesIntel RSTe:YesRAID Supported:YesRAID Levels:10RAID Levels:5RAID Levels:1RAID Levels:0
VideoOnboard Video:No
AudioAudio Channels:7.1
Network & CommunicationGigabit Ethernet:Yes
I/O ExpansionsTotal Number of Expansion Slots:5Total Number of PCI Express Slots:5Number of PCI Express x1 Slots:2Number of PCI Express x16 Slots:3
Onboard InterfacesNumber of SATA Interfaces:8Number of M.2 Interfaces:3Total Number of Onboard USB Ports:9Number of Onboard USB 2.0 Ports:4Number of Onboard USB 3.2 Ports:5
Physical CharacteristicsForm Factor:ATXWidth:12"Depth:9.6"
Prime X299-A II Desktop Motherboard User's Manual 1 x Vertical M.2 Bracket Set 1 x ASUS Fan Holder 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED Country of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
