for All Products Aten CL5708iN 8-Port PS/2-USB VGA LCD KVM over IP Switch / Daisy-Chain / USB Peripheral Manufacturer:Aten SKU:CL5708IN Condition:New Warranty:3 Years

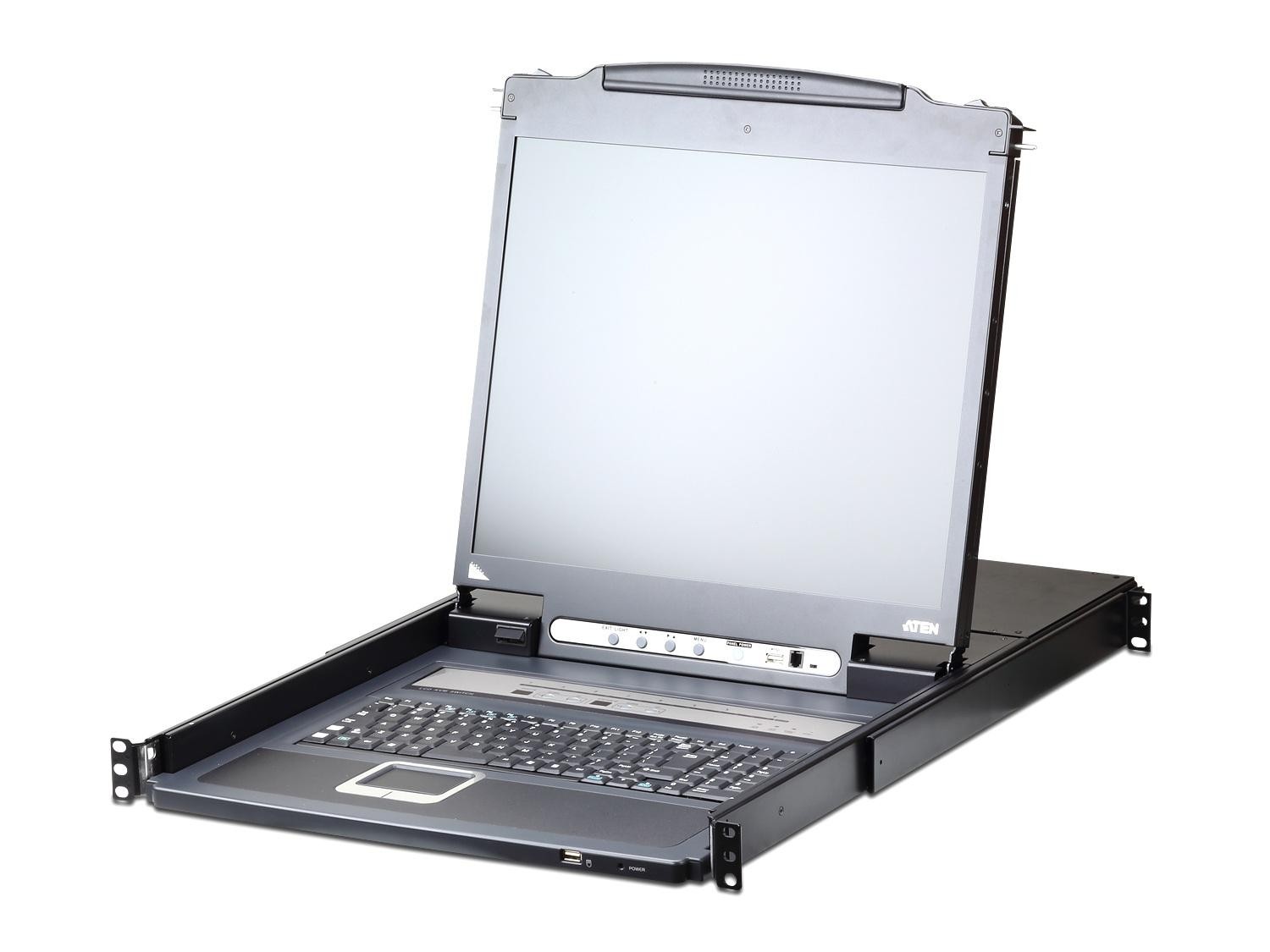

The CL5708iN is an 8-port Slideaway LCD KVM switch that combines a 19in LED-backlit monitor, keyboard and touchpad in a 1U rack-mountable housing to provide single-console access to multiple servers. It provides both local and IP-based remote access so administrators can monitor and control connected systems from the rack or across the network. The unit supports PS/2 and USB peripherals and allows expansion via daisy-chain to scale control up to 128 computers.
Key features include integrated 19in LCD console, PS/2-USB dual interface, USB peripheral pass-through and daisy-chain expansion to add up to 15 additional units. The switch supports up to 32 concurrent remote logins and includes user messaging for coordinated management. Additional features such as Mouse DynaSync and Video DynaSync help maintain consistent pointer alignment and display EDID across sessions.
Performance specifications include local console resolution support to 1280 x 1024 at 75 Hz and remote session support up to 1920 x 1200 at 60 Hz with 24-bit color depth. The CL5708iN uses RC4 128 bit encryption for keyboard/mouse/video and TLS 1.2 with RSA 2048 bit certificates for secure browser logins. The unit supports hot-plugging and keyboard/mouse emulation for simultaneous server booting.
Connectivity options cover 8 SPHD-17 KVM ports, 1 SPHD-18 external console port, USB Type-A ports for peripherals, a DB-25 daisy-chain port, RJ-45 LAN port and an IEC C14 power inlet. External console support allows a VGA monitor and USB or PS/2 keyboard and mouse to be attached. Integration with RADIUS, LDAP, LDAPS and MS Active Directory enables centralized authentication and authorization.
Typical applications include centralized server room management, data center rack consolidation and remote systems administration across IP networks. The CL5708iN is suitable where BIOS-level access is required and where multiple administrators require concurrent remote sessions. Panel array mode enables monitoring of multiple servers on a single screen for real-time oversight.
Installation is simplified by the Slideaway 1U form factor, front panel controls, and auto-sensing daisy-chain station positioning that eliminates manual dip switch configuration. Firmware upgrades can be applied to daisy-chained KVMs and configuration backup/restore is supported. The metal and plastic chassis and rack-mount design ensure reliable operation in standard equipment CL5708INConsole ConnectionsLocal1 (Share Remote Bus), 1 (Share Remote Bus)Remote1, 1Computer ConnectionsDirect8, 8Maximum128 (via Daisy-chain), 128 (via Daisy-chain)Port SelectionOSD, Hotkey, Pushbuttons, OSD, Hotkey, PushbuttonsConnectorsExternal Console Ports1 x SPHD-18 Male (Yellow), 1 x SPHD-18 Male (Yellow)External Mouse Port1 x USB Type-A Female, 1 x USB Type-A FemaleUSB Port1 x USB Type-A Female, 1 x USB Type-A FemaleKVM Ports8 x SPHD-17 Female, 8 x SPHD-17 FemaleDaisy Chain Ports1 x DB-25 Male, 1 x DB-25 MaleFirmware Upgrade1 x RJ-11 Female, 1 x RJ-11 FemaleLAN Ports1 x RJ-45 Female, 1 x RJ-45 FemalePower1 x IEC 60320/C14, 1 x IEC 60320/C14SwitchesPort Selection2 x Pushbutton, 2 x PushbuttonStation Selection2 x Pushbutton, 2 x PushbuttonReset1 x Semi-recessed Pushbutton, 1 x Semi-recessed PushbuttonFirmware Upgrade1 x Switch, 1 x SwitchPower Switch1 x Rocker Switch, 1 x Rocker SwitchLCD On/Off1 x LED Pushbutton (Orange), 1 x LED Pushbutton (Orange)LCD Adjustment4 x Pushbutton, 4 x PushbuttonLEDsOnline8 x (Orange), 8 x (Orange)Port ID1 x 2-digit 7-segment (Yellow), 1 x 2-digit 7-segment (Yellow)Station ID1 x 2-digit 7-segment (Yellow), 1 x 2-digit 7-segment (Yellow)10/100 Mbps1 x (Orange/Green), 1 x (Orange/Green)Power LED1 x (Dark Green), 1 x (Dark Green)Lock1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green), 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)VideoRemote1920 x 1200 at 60 Hz, 1920 x 1200 at 60 HzPanel SpecLCD Module17in TFT-LCD, 19in TFT-LCDResolution1280 x 1024 at 75 Hz, 1280 x 1024 at 75 HzPixel Pitch0.264 mm x 0.264 mm, 0.294 mm x 0.294 mmResponse time5 ms, 5 msViewing Angle170° (H) 160° (V), 170° (H) 160° (V)Support Color16.7M colors, 16.7M colorsContrast Ratio1000:1, 1000:1Luminance250 cd/m², 250 cd/m²EmulationKeyboard / MousePS/2 USB, PS/2 USBScan Interval1-255 sec, 1-255 secMaximum Input Power Rating100-240V AC 50-60Hz 1A, 100-240 VAC 50-60Hz 1APower Consumption120V/15.2W 230V/16W, 120V/24W 230V/25WEnvironmentalOperating Temperature0-50°C, 0-50°CStorage Temperature-20-60°C, -20-60°CHumidity0-80% RH Non-condensing, 0-80% RH Non-condensingPhysical PropertiesHousingMetal + Plastic, Metal + PlasticWeight13.49 kg (29.71 lb), 13.41 kg (29.54 lb)Dimensions (L x W x H)48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.), 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)NoteFor some of rack mount products please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format
Package Includes:
- 1x CL5708I LCD KVM over IP Switch with standard Rack Mount Kit
- 2x Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
- 1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
- 1x Firmware Upgrade Cable
- 1x Power Cord
- 1x User Instructions
