for All Products Aten CS1182DP4 2-Port USB DisplayPort Secure KVM Switch PSD PP v4.0 Compliant TAA / 4K@30Hz Manufacturer:Aten SKU:CS1182DP4 Condition:New Warranty:

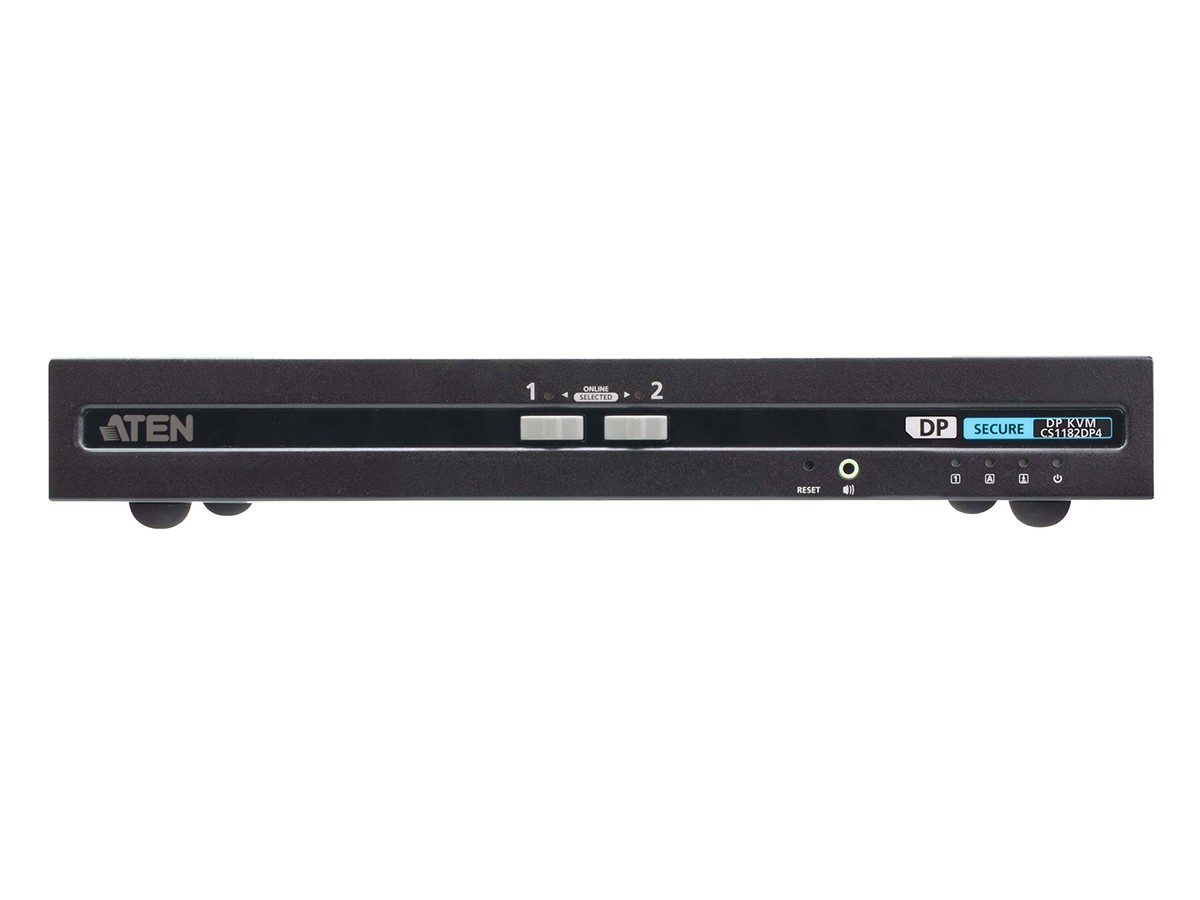

The CS1182DP4 is a 2-port USB DisplayPort secure KVM switch designed to provide strong isolation between connected computer systems - it shares a single keyboard, mouse, monitor and speaker between two hosts while enforcing strict security controls. It is NIAP Common Criteria compliant and certified to PSD PP v4.0 to meet modern protection profile requirements. The unit is built to render connected assets inoperable if physical tampering is detected.
Key features include always-on chassis intrusion detection, non-reprogrammable firmware and tamper-evident labels to ensure integrity of the device - port switching is limited to front-panel pushbuttons or an external Remote Port Selector to minimize attack surface. Device filtration is configurable by administrators to restrict USB HID devices and prevent unauthorized peripherals from connecting. Audio is strictly filtered and only analog speaker output is supported to avoid audio leakage across domains.
On the performance side the switch supports console video output up to 3840 x 2160 at 30 Hz and includes ATEN Video DynaSync technology to optimize resolutions when switching between sources. Keyboard and mouse input is emulated over USB and user data from HID devices is automatically deleted after transmission and on focus change to prevent residual data retention. The device enforces unidirectional data flow and true data path isolation so data cannot be transferred between connected computers.
Connectivity comprises a DisplayPort console output, USB Type-A console ports, front-panel mini stereo jack for speaker output and two sets of KVM ports for DisplayPort, USB Type-B and stereo audio. Power is supplied via a 3-prong AC socket and a rear RJ-11 jack is available for an optional Remote Port Selector (sold separately). LED indicators provide clear status for power, selected port, video and key lock/filter states.
This secure KVM is suited to environments that require separation between classified networks and user consoles, such as government, defense, healthcare and finance - it addresses regulatory and operational security needs without adding complex configuration. Administrators can audit KVM log data and configure HID filtering to maintain strict endpoint control. The product supports common enterprise workflows while ensuring peripheral sharing does not introduce cross-domain contamination.
The CS1182DP4 is constructed in a rugged metal enclosure and manufactured in Taiwan to ensure durability and consistent quality. Installation is straightforward - rack or desk mountable form factor with simple front-panel controls and clear LED response - and firmware is non-reprogrammable to reduce maintenance vectors. Overall the unit delivers a secure, auditable peripheral sharing solution that prioritizes data isolation and tamper Common Criteria CompliantYesCompliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirementsPSD PP v4.0Multi-Layered SecurityAlways-on chassis intrusion detectionInoperable on tamperTamper-evident labelsYesNon-reprogrammable firmwareYesRestricted peripheral connectivityNon-authorized HIDs rejectedPort selection via pushbuttons / Remote Port SelectorPushbutton / Remote Port SelectorLED indicators for peripheral filtering and KVM security statusPower, Online/Selected, Video, Key LockStrict audio filtrationAnalog speaker onlyRugged metal enclosureMetalData Channel Isolation and Unidirectional Data FlowTrue data path isolationYesUnidirectional data flowYesSupports analog audio (speaker only)Speaker onlyUser Data ProtectionKeyboard / mouse data purgeAuto delete after transmission and port switchSecurity ManagementAdministrative HID filteringConfigurableAudit KVM log dataSupportedSuperior Video QualitySuperior video qualityMax 3840 x 2160 at 30 HzVideo DynaSyncYesComputer Connections2Port SelectionPushbutton, Remote Port SelectorConnectorsConsole DisplayPort1 x DisplayPort Female (Black)Console USB Type-A2 x USB Type-A Female (White)Console Mini Stereo Jack1 x Mini Stereo Jack Female (Green; front panel)KVM USB Type-B2 x USB Type-B Female (White)KVM DisplayPort2 x DisplayPort Female (Black)KVM Mini Stereo Jack2 x Mini Stereo Jack Female (Green)Power1 x 3-prong AC SocketRemote Port Selector1 x RJ-11 (Black; rear panel)SwitchesPort Selection2 x PushbuttonsReset1 x Semi-recessed PushbuttonPower Switch1 x RockerLEDsPower LED1 (Green)Online / Selected (KVM Port)2 (Orange)Video LED1 (Green)Key Lock LED3 (Green)EmulationKeyboard / MouseUSBVideoMax. 3840 x 2160 at 30 Hz (UHD)Maximum Input Power Rating100-240V~; 50-60 Hz; 1APower Consumption AC110V6.46W; 45 BTU/hPower Consumption AC220V6.68W; 46 BTU/hEnvironmentalOperating Temperature0 - 50 CStorage Temperature-20 - 60 CHumidity0 - 80% RH, Non-condensingPhysical PropertiesHousingMetalWeight1.71 kg (3.77 lb)Dimensions (L x W x H)33.50 x 16.39 x 4.40 cm (13.19 x 6.45 x 1.73 in.)NoteFor some rack mount products WxDxH expressed as LxWxH OUR PERKS Great Prices and
