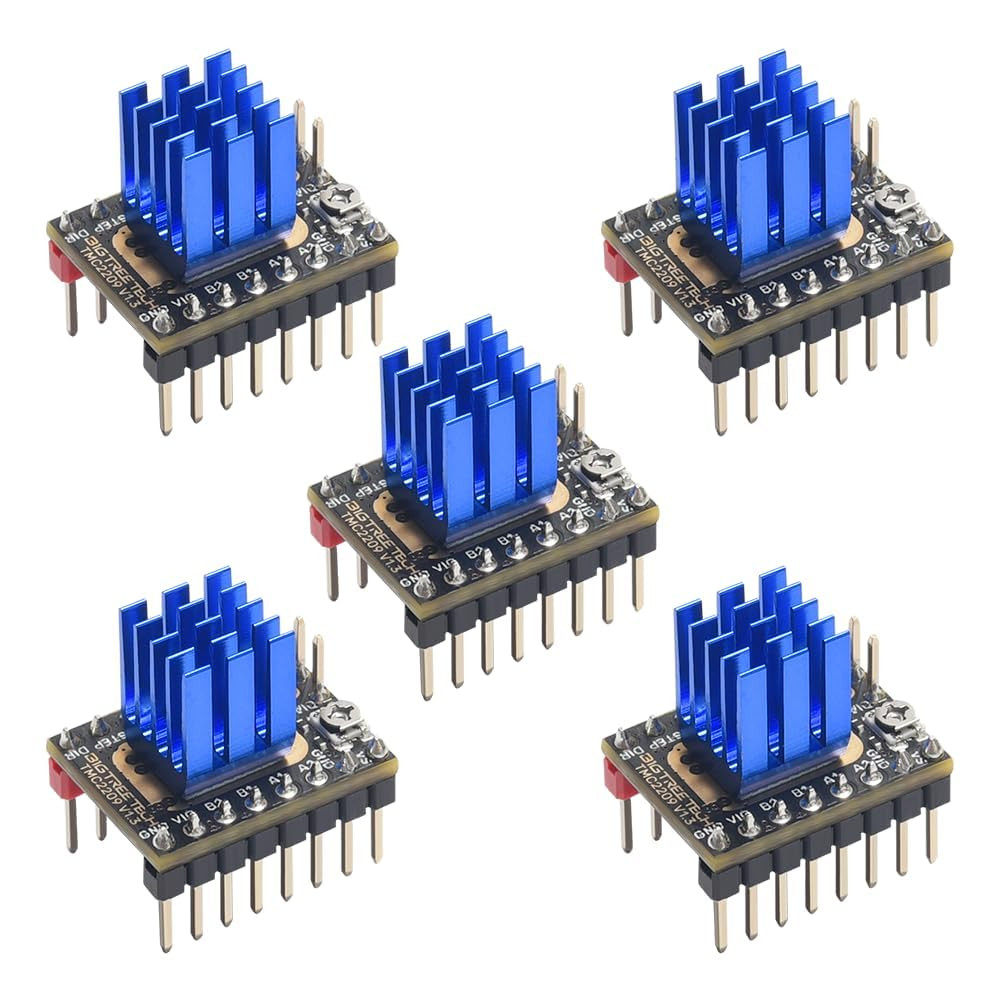

BIGTREETECH TMC2209 V1.3 Stepper Motor Driver, UART/STEP/DIR Mode, Ultra Silent

Price: US $41.99

BIGTREETECH TMC2209 V1.3 Stepper Motor Driver, UART/STEP/DIR Mode, Ultra Silent Stepsticks Drivers with Heatsink for Octopus V1.1/Pro/Skr V1.4 Turbo/Skr 3, Manta M8P/M4P/M5P/MKS Gen L Motherboard 5PcsDescription Item model number 5Pcs TMC2209 V1.3 Style 5*TMC2209 Material PCB Item Weight 0.01 Ounces Voltage 5.5 Volts Horsepower 0.11 Watts Package Dimensions 3.86 x 2.2 x 1.18 inches; 0.01 ounces

Ultra-silent Stepper Motor Driver: BIGTREETECH tmc2209 v1.3 stepper motor driver adopts StealthChop2 silent motor operation technology is an ultra-silent motor driver IC for two-phase stepper motors. Continuous current up to 2.0A (peak 2.8A), voltage ranges from 4.75v to the maximun output of 28v. It can operate bipolar stepper motors from 1 to 1/256 step modes
BTT TMC2209 stepper motor driver support UART, STEP/ DIR Mode, except that you need to modify the firmware for the mode you use. for detailed tutorials, please refer to the BIGTREETECH GITHUB instructions
Sensorless Homing: BTT tmc2209 v1.3 stepper motor driver uses Stallguard4 locked motor technology to detect changes in motor current, providing an abnormal signal when the motor rotates abnormally. And use this measurement to detect the end of axis' stroke and produce 3D printers without limit switches
Widely Compatible: TMC 2209 stepper driver with most 3D printer motherboards on the market, such as btt octopus v1.1/octopus pro, skr v1.4 turbo/skr 3, Manta M4P/M5P/M8P, MKS Gen L... etc. It saves the expensive cost of redesign. It can perfectly replace the original non-silent TMC2100/A4988/DRV8825/LV8729 stepper driver and is the most cost-effective choice
Avoid losing steps and jittering: The motor controlled by the PWM chopper mode operated more smoothly and without jitter. It can effectively avoid problemsuch as running deviation losing step and fault caused by the overlode of the chip. Better printing effect
After-sales service: The manual and installation instructions have been uploaded to Github. If you have any problems during use, please tell us through Amazon

Product description

BIGTREETECH TMC2209 V1.3 stepper motor driver adopts StealthChop2 ultra-quiet technology. It is an ultra-silent motor driver IC for two-phase stepper motors. Its continuous drive current is 2A and peak current is 2.8A. Compared with TMC2208, the driving current of this IC is not only improved by 0.6A-0.8A, but also this IC increases the function of locked-motor test.

Tips:

1. When the driver is inserted into the motherboard, please pay attention to see the direction of the drive, can not be inserted in reverse, to prevent the drive from burning.

2. Be sure to do a good job before driving heat dissipation work (heat sink + fan), to prevent the drive is not working properly.

3. Pay attention to the wiring sequence and I/O port when wiring. If the wrong line is connected, the driver will not work properly. Please connect according to the Github manual.

BIGTREETECH TMC2209 V1.3 Stepper Motor Driver

Control chip: TMC2209-LA Chip；

Logic supply voltage(VIO): 3-5V；

Motor supply voltage(VM): 4.75V-28V DC；

Peak current: 2.8A；

Current RMS: 2A；

Native Microsteps 2: Up to 1/256；

Operating mode: STEP/DIR or UART；

Configuration: CFG Pins or UART；

Ultra Quiet

BIGTREETECH TMC2209 V1.3 stepper motor driver uses StealthChop2 ultra-quiet technology to reduce motor noise to a silent state, allowing it to operate in an extremely quiet environment.

Avoid Losing Steps and Jittering

TMC2209 stepper driver uses SpreadCycle high-dynamic motor control chopper to control the motor to run more stably and without jitter, effectively avoiding problems such as deviation, step loss, and failure caused by chip overload.

Excellent Heat Dissipation

BTT TMC2209 V1.3 driver uses CoolStep current dynamic control to save 75% of energy. It has a large area heat dissipation pad to reduce the temperature of the driver during operation.

STEP/DIR Mode

BTT TMC2209 support STEP/DIR mode. Select working mode MS1, MS2, configure the micro-step resolution of stepper input. For detailed settings, please refer to TMC2209 V1.3 Github manual for settings.

UART Mode

TMC2209 stepper motor driver defaults to UART mode. If you use the 5th pin as the UART pin, you need to remove the resistor and solder it to the two pads below.

Potentiometer Adjustment

Turn the potentiometer clockwise: reduce Vref to reduce the driver current, turn it counterclockwise to increase the driver current.
