Pro-grade PCIe card with four independent, bi-directional 3G-SDI connections plus a reference (genlock) input. Each channel can capture or play back, so you can configure it for 4 in, 4 out, or any mix. A good fit for multi-camera live streaming, ISO recording, switching and playout. Tested and working.
Key specs
- 4 x 3G-SDI BNC inputs/outputs, each switchable between capture and playback
- Reference input for black burst / tri-level sync (genlock)
- Up to 1080p60 per channel (HD only, not 4K)
- PCI Express x4 interface (needs a free x4 or larger slot)
- Supports 8-bit and 10-bit 4:2:2 uncompressed video
- Works with vMix, OBS Studio, DaVinci Resolve, Premiere Pro, Final Cut Pro, Media Composer and other Blackmagic Desktop Video-compatible software
- Windows, macOS and Linux drivers via Blackmagic Desktop Video (free download from Blackmagic's site)

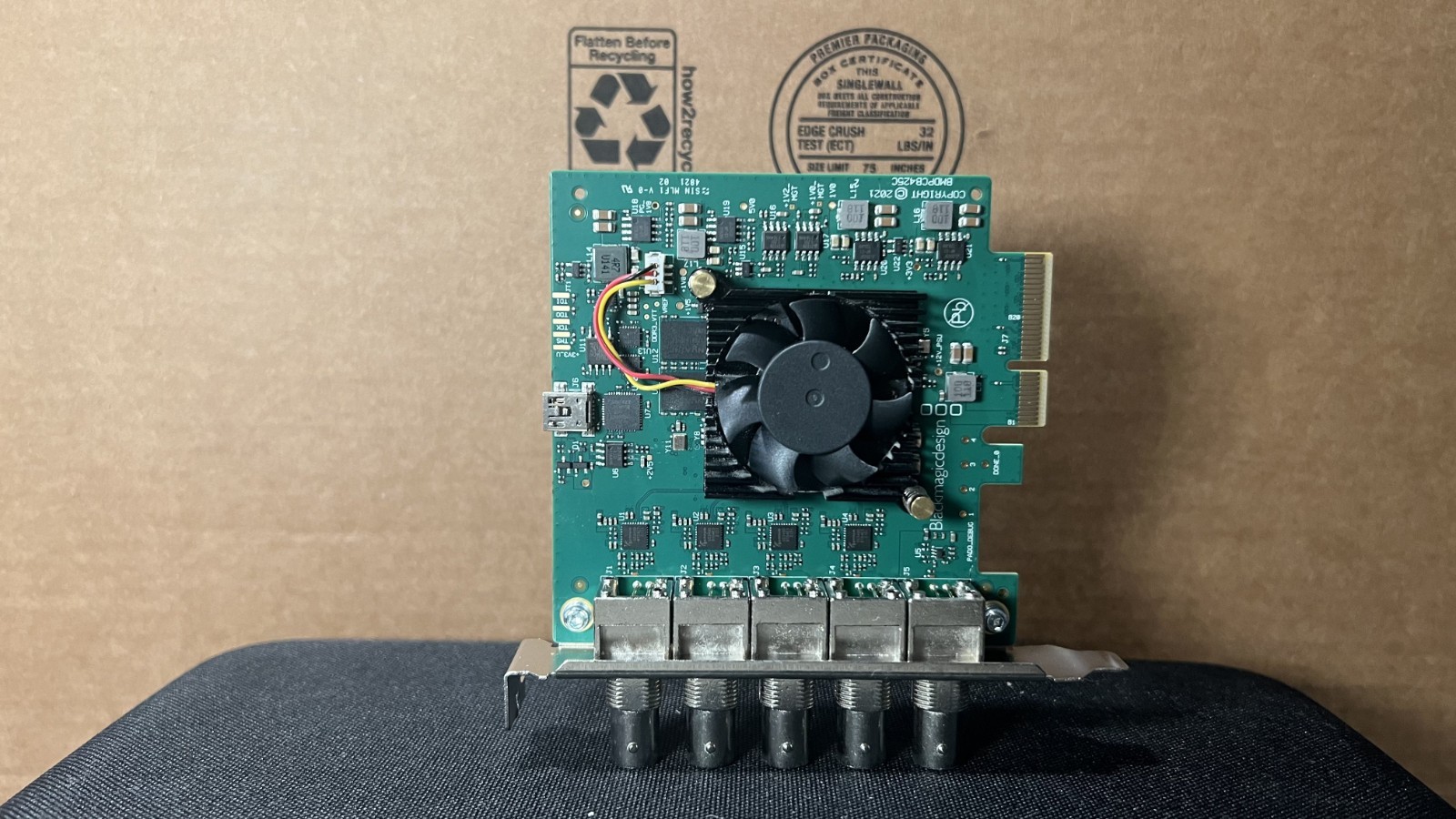

Condition: Used, pulled from a working studio setup. Clean board, BNC connectors intact, fan spins freely, no damage. Shown in the photos, including the serial label. TESTED AND WORKING
Included: Card with full-height bracket only. No box, cables, or software disc. Drivers are a free download.
