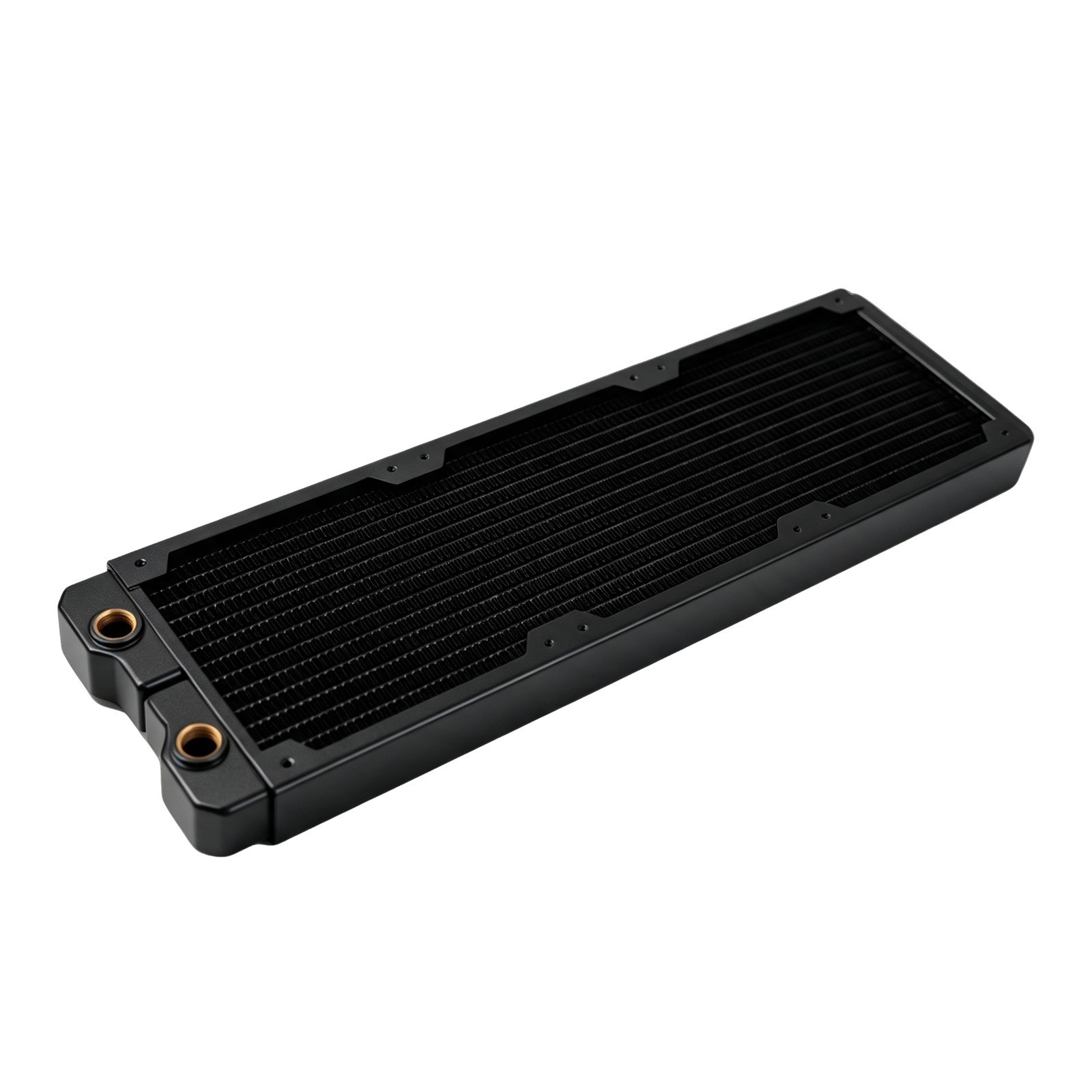

CRS36
360mm Copper Water Cooling Radiator — 29mm Thick, 14 Waterways
97.32 dm² + 14 Channels — Triple-Fan Performance for High-TDP in97.32 dm²
Cooling Area772g
1.70 lbs14 Waterways
vs 12 Standard24 Screws
Full KitKey Features📐97.32 dm² — 16% More Cooling Than Standard 360mm
29mm thickness + 14 channels delivers 97.32 dm² vs ~84 dm² on standard 27mm 360mm radiators. Handles overclocked CPU+GPU loops, dual GPU setups, and workstation loads with authority.
💧14 Waterways — Enhanced Flow Distribution
2 extra channels over standard 12-way radiators. Even coolant distribution across the full 395mm fin array with lower flow resistance — maximizes the benefits of your D5/DDC pump.
🌬Triple 120mm Fans — Push-Pull 6-Fan Ready
3 x 120mm fan positions per side. The 29mm fin stack benefits from push-pull — 6 fans at moderate RPM deliver massive airflow for near-silent elite cooling.
🔩Copper-Brass One-Piece — Factory Leak Tested
Dense copper fins + brass chambers. High-temperature integrated welding. Every unit individually pressure-tested at 0.2 MPa. 100+ units sold with 4.9/4.9/4.9 store ratings.
Technical (LxWxH)395 x 122 x 29 mm (15.55 x 4.80 x 1.14 in)Weight~771.6 g (1.70 lbs)MaterialCopper fins + brass chambers + steel frameConnectorG1/4 thread x 2 portsWaterways14 channelsHeat Dissipation Area~97.32 dm²Fan Support3 x 120mm fans (push-pull compatible)Color / FinishBlack / baked paintScrew Kit — 24 Pieces TotalScrew TypeQtyUseM3 x 30mm (long, silver)12 pcsFan mounting (push-pull: 6 fans x 2 screws)M3 x 6mm (short, black)12 pcsRadiator mounting to casePlease Note:Fittings, fans, tubing, and coolant are NOT included.⚠ Important Installation Warnings
- Screw Length:Must NOT exceed5mmpast fan surface. Punctured tubes NOT covered by warranty.
- Case Compatibility:Requires case with native 360mm radiator support (3x120mm layout).
- Flush Before Use:Rinse with distilled water before first use.
Dispatch TimeWithin 48 hours after paymentReturns30-day return. Buyer pays return shipping.
Overclocking a high-TDP system? Need serious 360mm cooling?
Message us for bulk pricing!
