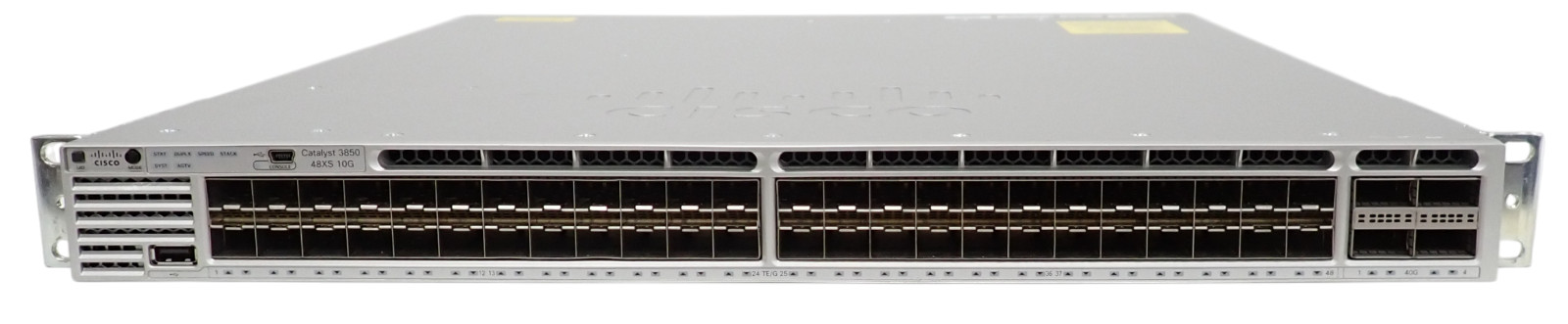

Cisco Catalyst WS-C3850-48XS-S 48x 1/10Gb SFP+ + 4x 40Gb QSFP+ Port F2B Switch

WS-C3850-48XS-S

In Good Condition, Full Working Order
Tested
2 Year Warranty

Front to Back Airflow

IPBase

Included:

• 1 xCisco Catalyst WS-C3850-48XS-S 48x 1/10Gb SFP+ + 4x 40Gb QSFP+ Port Switch
• 5 x Fan Modules
• 2 x 750W Power info: WS-C3850-48XS-S
• Enclosure type Rack-mountable - 1U
• Ports 48 x SFP+ ports
• Network management Interface
• Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
• Management console port: RJ-45-to-DB9 cable for PC connections
• Available PoE Power: None
• Switching Capacity: 1280 Gbps
• Maximum stacking number: 9
• FNF entries: 96,000 flows
• Maximum VLANs IDs: 1,000
• MAC Address Table Size: 32K
• CPU: Multicore CPU
• RAM: 8 GB
• Flash Memory: 8 GB

Wireless

• Number of AP per switch/stack: 100
• Number of wireless clients per switch/stack: 2000
• Total number of WLANs per switch: 64
• Wireless bandwidth per switch: Up to 40 Gbps
• Supported Aironet AP series: 3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

• Console ports: USB (Type-B), Ethernet (RJ-45)
• Expansion Slot(s): 1 network module slot and 1 power redundant slot
• Power supply: PWR-C3-750WAC-R
• Power Device: Power supply - redundant - plug-in module
• Power Redundancy: 4.45 X 44.5 x 51.1 cm (1.75 x 17.5 x 20.1 inch)
• Weight: 7.45 kg
• Rack Mounting Kit: optional
• MTBF in hours: 286,900
• Compliant Standards:
• IEEE 802.1D Spanning Tree Protoco
• IEEE 802.1p CoS Prioritization
• IEEE 802.1Q VLAN
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1X
• IEEE 802.1X-Rev
• IEEE 802.11
• IEEE 802.1ab (LLDP)
• IEEE 802.3ad
• IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• RMON I and II standards
• SNMP v1, v2c, and v3

System software / license

• System software: IOS IP Base (Upgradable)
• EnergyWise license: ENERGY-MGMT, Support
• Jumbo Frames
• VLANS
• Voice LACP and Fast/Uplink Fast
• Dynamic Trunking Protocol (DTP)
• port CoS Trustand Override
• Trusted Boundary
• ACL Classification
• ingress Policing
• Auto QoS
• Per VLAN policies
• 802.1p Queuing
• Configure CoS Priority Queues
• Configure CoS PriorityQueues
• Configure Queue Weights
• Configure Buffers and Thresholds
• Class & Policy Maps
• Modify CoSand DSCP Mapping
• Weighted Tail Drop
• IGMPv1,v2,v3 and MLDv1, v2
• DHCP server
• DSCP transparency
• HSRP, VRRP, BLGP
• RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, sparse-dense mode, SSM
• Flexible Netflow

Advanced Network security:

• Port security
• DHCP snooping
• Dynamic ARP inspection (DAI)
• IP source guard
• The Unicast Reverse PathForwarding (uRPF)
• offerirectional data support on a SPAN
• User authentication
• Private VLAN
• Router and VLAN ACLs
• complete identity and security
• Multidomain authentication
• MAC address notification
• IGMP filtering
• Cisco security VLAN ACL
• Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
• Port-based ACLs
• TrustSec SXP
• IEEE 802.1ae
• TACACS+ and RADIUS authentication
• Cisco standard and extended IP security router ACLs
• Bridge protocol data unit (BPDU) Guard
• Spanning Tree Root Guard (STRG)
• Wireless end-to-end security

Boot Log:Switch#show versionCisco IOS XE Software, Version 16.12.08Cisco IOS Software [Gibraltar], Catalyst L3 Switch Software (CAT3K_CAA-UNIVERSALK9-M), Version 16.12.8, RELEASE SOFTWARE (fc1)Technical Support:Copyright (c) 1986-2022 by Cisco Systems, Inc.Compiled Thu 15-Sep-22 06:03 by mcpreCisco IOS-XE software, Copyright (c) 2005-2022 by cisco Systems, Inc.All rights reserved. Certain components of Cisco IOS-XE software arelicensed under the GNU General Public License ("GPL") Version 2.0. Thesoftware code licensed under GPL Version 2.0 is free software that comeswith ABSOLUTELY NO WARRANTY. You can redistribute and/or modify suchGPL code under the terms of GPL Version 2.0. For more details, see thedocumentation or "License Notice" file accompanying the IOS-XE software,or the applicable URL provided on the flyer accompanying the IOS-XEsoftware.
ROM: IOS-XE ROMMONBOOTLDR: CAT3K_CAA Boot Loader (CAT3K_CAA-HBOOT-M) Version 5.08, RELEASE SOFTWARE (P)
Switch uptime is 2 minutesUptime for this control processor is 4 minutesSystem returned to ROM by Power Failure or UnknownSystem image file is "flash:packages.conf"Last reload reason: Power Failure or Unknown
This product contains cryptographic features and is subject to UnitedStates and local country laws governing import, export, transfer anduse. Delivery of Cisco cryptographic products does not implythird-party authority to import, export, distribute or use encryption.Importers, exporters, distributors and users are responsible forcompliance with U.S. and local country laws. By using this product youagree to comply with applicable laws and regulations. If you are unableto comply with U.S. and local laws, return this product immediately.
Technology Package License Technology-packageCurrent Type Next   Smart License    ipbasek9 None   Subscription Smart License    None
Smart Licensing Status: UNREGISTERED/EVAL EXPIRED
cisco WS-C3850-48XS (MIPS) processor (revision H0) with 794816K/6147K bytes of memory.Processor board ID FOC2231T3EW1 Virtual Ethernet interface64 Ten Gigabit Ethernet interfaces4 Forty Gigabit Ethernet interfaces2048K bytes of non-volatile configuration memory.8388608K bytes of physical memory.257008K bytes of Crash Files at crashinfo:.6795495K bytes of Flash at flash:.0K bytes of WebUI ODM Files at webui:.
Base Ethernet MAC Address : 04:eb:40:40:6e:00Motherboard Assembly Number : 73-16622-05Motherboard Serial Number : FOC222705K0Model Revision Number : H0Motherboard Revision Number : B0Model Number : WS-C3850-48XSSystem Serial Number : FOC2231T3EW
Switch Ports Model SW Version SW Image Mode ------ ----- ----- ---------- ---------- ---- * 1 68 WS-C3850-48XS 16.12.08 CAT3K_CAA-UNIVERSALK9 I16/10/2025 12:14 - == SOFTWARE VERSION FOUND : 16.12.08
Switch#show inventoryNAME: "c38xx Stack", DESCR: "c38xx Stack"PID: WS-C3850-48XS-S , VID: V02 , SN: FOC2231T3EW
NAME: "Switch 1", DESCR: "WS-C3850-48XS-S"PID: WS-C3850-48XS-S , VID: V02 , SN: FOC2231T3EW
NAME: "Switch 1 - Power Supply A", DESCR: "Switch 1 - Power Supply A"PID: PWR-C3-750WAC-R , VID: V01 , SN: QCS22223X5Z
NAME: "Switch 1 - Power Supply B", DESCR: "Switch 1 - Power Supply B"PID: PWR-C3-750WAC-R , VID: V01 , SN: QCS22223XDC
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED
£830 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

CSWS-C3850-48XS-S/REF -2
