Cisco ISR4431/K9 500M-1G 400W PSU HSEC APPX SecurityK9 Router For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

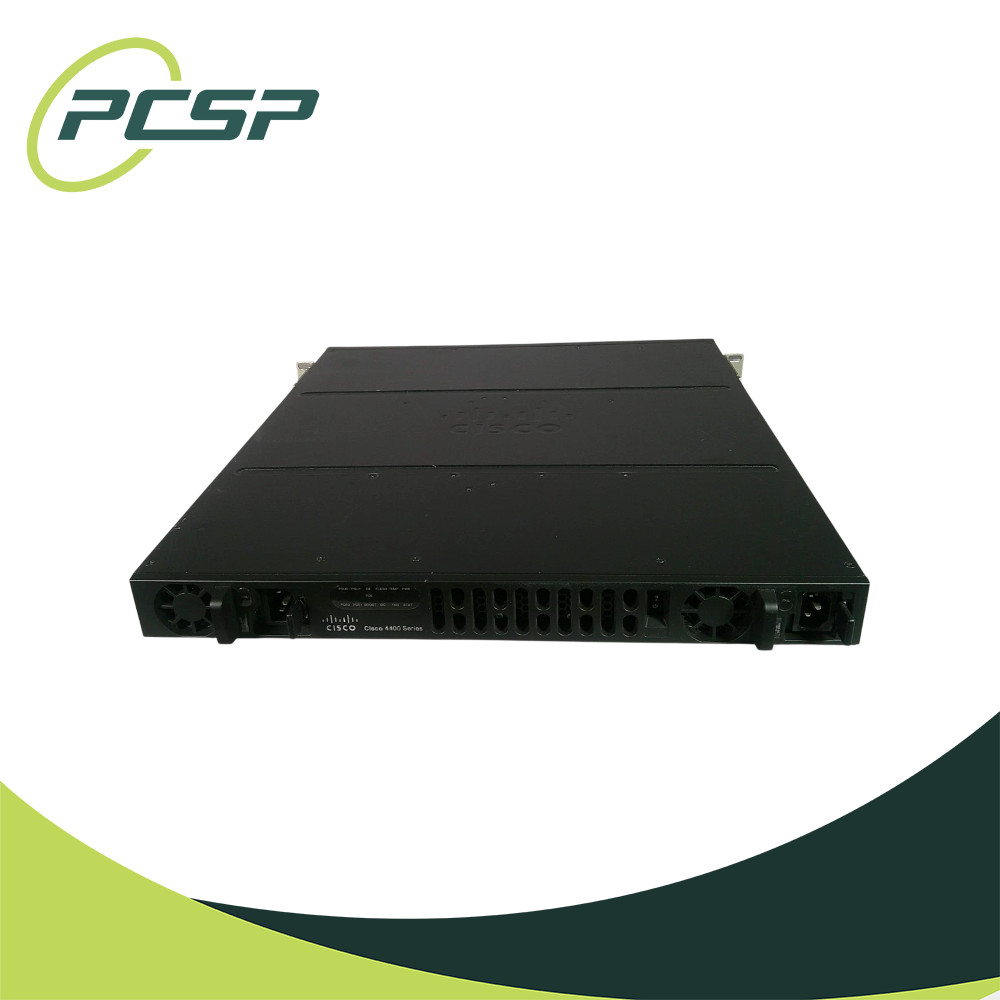

Cisco ISR4431/K9 500M-1G 400W PSU HSEC APPX SecurityK9 Router

Price: US $229.99

View Listings
Build to Order
About Us
response
Contact Us

Categories

Build Your Own
Servers
Workstations
Graphics Cards
Networking
Hard Drives
CPU's
Memory
Desktops
Motherboards
Daytrader PCs
CAD PCs
Cards and Controllers
Power Supply
Server Sales
Other

Cisco ISR4431/K9 500M-1G 400W PSU HSEC APPX SecurityK9 Router
Click Thumbnails to Enlarge Specifications Server TypeLot QuantityWarranty30 DaysBrandCiscoManufacturer Part 4000 Series Integrated Services RoutersModel NumberISR4431/K9Form Factor1U RackmountForm1UBracket SizeNetwork InterfaceEthernet (RJ-45), SFP (Combo)InterfaceEthernet, SFP, USB, Console (RJ-45 & Mini-USB), AuxWatts1x 400W PWR-4430-ACChassisBatteryAC AdapterInternal Power Supply (100–240 VAC auto-ranging)Motherboard SupportExpansion Slots4x NIM slots, 1x SM, 1x Onboard ISC slotDimms per ChannelSocketProcessorMulticore Processor ArchitectureProcessors Installed1Processor SpeedSpeedN/AProcessor Max Speed (Turbo Boost)CPU BrandCisco (Proprietary Data Plane Engine + Control Processor)Processor CoresNumber of ThreadsHyper ThreadingCache Per ProcessorProcessor Main FeaturesCPU InstalledCompatible RAMFSBCPU CacheCPU Cooling SystemCPU Cooling System BrandCPU Cooling System DetailsNumber of FansN/AFan ModelFan SupportFan SpeedFan AirflowFan NoiseMemory (RAM)Memory SizeRAM DetailsRAM TypeRAM TypeRAM SpeedRam SpeedMaximum RAMRAM BrandRAM/RankRankModule TypeModule QTYECC/FFSpeed & ECCRAM Installed1.8" Drive Bays2.5" Drive Bays3.5" Drive BaysM.2 SlotsStorageHDDHDD InstalledSSDN/ASSD InstalledN/AStorage TypeStorage CapacityHard Disk Rotational SpeedRead SpeedStorage CacheSector SizeHard Drive TraysDrive BlanksIn trayGraphics CardGraphics CoprocessorGraphics Card BrandGraphics Card SeriesGraphics Card MemoryGraphics Card Memory TypeGraphics Card Clock SpeedGraphics Card Boost Clock SpeedGraphics Card CUDA CoresGraphics Card Memory Bus WidthGraphics Card InterfaceGraphics Card Video OutputsPower ConnectorsIEC C14GPU InstalledCacheTransfer RatePower SupplyInternalPSU TypeAC, DC, or PoEPSU BrandCiscoPSU QTY1PSU Form FactorInternal Plug-in ModulePSU FeaturesHot-swappable, Redundant options, PoE supportPSU Installed1x 400W PWR-4430-ACOperating SystemCisco IOS XESoftwareSoftware FeaturesCOABattery InstalledBluetooth InstalledCabling InstalledCamera InstalledMedia Drive InstalledHeatsinks InstalledRAID ControllerRaid InstalledNetwork ControllerIntegrated Multicore Data Plane ProcessorRail KitBezelOptical DriveSpecial FeaturesPackage ContentsOnboard GPUBluetoothWifi InstalledWLANLAN SpeedCase MaterialColorsDrive BaysMaximum CPUsMax CPU'sNumber of Memory SlotsDIMM SlotsMemory ChannelsI/O SlotsPorts4 x GE (Onboard), 1 x Console, 1 x Aux, 2 x USBFront USBFront Audio PortsRear USBRear Audio PortsVideo PortsRJ45Power ConsumptionKeyboardMouseMonitorNot IncludedRefresh RateScreen SizeEars IncludedNoFeature SetsIP Base (Security, UC, AppX Licenses Optional)Fixed Uplinks4 x 10/100/1000 Onboard PortsTotal 10/100/1000 Ethernet Ports4 (Onboard)Available PoE PowerN/ASwitching CapacityN/A (Router throughput-based platform)Stacking BandwidthN/ATotal number of MAC addressesN/ATotal number of IPv4 routes800,000 - 1,000,000+ (DRAM dependent)FNF entriesSupportedDRAM4 GBFlash8 GBVLAN IDs4094Total switched virtual interfaces (SVIs)N/A (Router - uses routed subinterfaces)Jumbo frame9216 BytesTotal routed ports per stackN/ANumber of access points per switch/stackN/ANumber of wireless clients per switchN/ATotal number of WLANs per switchN/AWireless bandwidth per switchN/ASupported Aironet access point seriesN/AForwarding Rate500 Mbps to 1 Gbps AggregateHSEC Appx Secruity9 License'sECC/FFScalabilityCountry of OriginPCSP SKUNSB 443193 Extended Warranty for this listing:Click Here Our other items:Click Here Product Description

Cisco ISR4431/K9 Integrated Services Router w/ 400W PSU, HSEC, APPX & SecurityK9

The Cisco ISR4431/K9 is a modular 1U enterprise Integrated Services Router designed for WAN connectivity, branch networking, VPN, security, application services, and advanced routing deployments.

This configuration includes one Cisco PWR-4430-AC 400W AC power supply along with HSEC-K9, APPXK9, and SecurityK9 license functionality as specified for this unit.

The ISR4431 provides four onboard logical Gigabit Ethernet interfaces, three Network Interface Module slots, one Integrated Services Card slot, and Cisco IOS XE software architecture. The platform provides 500Mbps aggregate throughput at its base performance level and can be upgraded to 1Gbps with the appropriate Cisco Performance license.

Manufacturer: Cisco

Series: Cisco 4000 Series ISR

Model: ISR4431/K9

Product Type: Integrated Services Router

Onboard Ethernet: 4x Logical Gigabit Ethernet

Base Aggregate Throughput: 500Mbps

Performance Upgrade: Up to 1Gbps with FL-44-PERF-K9

Control-Plane DRAM: 4GB Default

Data-Plane DRAM: 2GB Default

Flash: 8GB Default

Power Supply: 1x PWR-4430-AC 400W AC

License Features: HSEC-K9, APPXK9, SecurityK9

Operating System: Cisco IOS XE

Form Factor: 1U Rackmount

Key Features

Cisco ISR4431/K9 enterprise Integrated Services Router
4x onboard logical Gigabit Ethernet interfaces
500Mbps base aggregate system throughput
Upgradeable to 1Gbps with FL-44-PERF-K9 Performance license
3x Network Interface Module slots
1x Integrated Services Card slot
Dedicated Gigabit Ethernet management interface
4GB default control-plane DRAM
2GB default data-plane DRAM
8GB default flash memory
HSEC-K9 high-security cryptographic functionality
APPXK9 Application Experience functionality
SecurityK9 security feature package
1x PWR-4430-AC 400W AC power supply installed
Cisco IOS XE operating system
1U rackmount chassis

Network Interfaces

4x logical onboard Gigabit Ethernet interfaces
RJ45 / SFP dual-media architecture on supported interfaces
RJ45 and SFP connections associated with one logical interface are alternate media options
1x dedicated Gigabit Ethernet management interface
SFP transceivers are not included unless specifically stated

Performance

Base aggregate throughput: 500Mbps
Performance-on-Demand throughput: 1Gbps
FL-44-PERF-K9 is required for the 1Gbps performance tier
HSEC-K9 does not itself upgrade the router from 500Mbps to 1Gbps
Actual performance depends on licensing, IOS XE release, enabled services, and traffic profile

SecurityK9

Security technology package
IPsec VPN functionality
DMVPN / FlexVPN support with compatible IOS XE software
Zone-Based Firewall capabilities
SSL / SSH security features
Secure routing and VPN services

HSEC-K9

High Security cryptographic feature license
Works in conjunction with SecurityK9
Enables expanded secure tunnel and cryptographic throughput capability
Separate from the FL-44-PERF-K9 system Performance license
Exact crypto limits depend on IOS XE release and licensing model

APPXK9

Application Experience technology package
MPLS functionality
Performance Routing / PfR
Layer 2 and Layer 3 VPN features
Broadband features
Application Visibility and Control functionality
Exact features depend on IOS XE release

Memory & Storage

4GB default control-plane DRAM
2GB default data-plane DRAM
8GB default flash memory
Control-plane DRAM supports up to 16GB
Flash supports up to 32GB
Actual installed memory should be verified from the individual unit

Expansion

3x Network Interface Module slots
1x Integrated Services Card slot
No SM-X service module slots on the ISR4431 platform
Supports compatible Cisco ISR 4000 Series NIM modules

Power

1x Cisco PWR-4430-AC 400W AC power supply installed
ISR4431 chassis supports an optional secondary AC power supply
This configuration contains one PSU and therefore does not currently provide PSU redundancy
Power cord is not included unless specifically stated

Management

Dedicated Gigabit Ethernet management interface
RJ45 serial console interface
USB console interface
2x USB Type-A interfaces
Cisco IOS XE management platform

Included

1x Cisco ISR4431/K9 Integrated Services Router
1x Cisco PWR-4430-AC 400W AC Power Supply
HSEC-K9 functionality as specified
APPXK9 functionality as specified
SecurityK9 functionality as specified

Important Notes

Photos are for reference only.
Only listed items are included.
The ISR4431 has a 500Mbps base aggregate throughput and requires FL-44-PERF-K9 for the 1Gbps Performance tier.
HSEC-K9 controls enhanced cryptographic capability and is separate from the system Performance license.
This configuration includes one power supply and therefore does not currently provide power supply redundancy.
Verify compatibility before purchase.
