Cisco ISR4431/K9 2x400W PSU HSEC APPX SecurityK9 Router w/ Ears
Click Thumbnails to Enlarge Specifications Server TypeLot QuantityWarranty30 DaysBrandCiscoManufacturer Part 4000 Series Integrated Services RoutersModel NumberISR4431/K9Form Factor1U RackmountForm1UBracket SizeNetwork InterfaceEthernet (RJ-45), SFP (Combo)InterfaceEthernet, SFP, USB, Console (RJ-45 & Mini-USB), AuxWatts65W typical (no modules) / 250W max (non-PoE AC) / 500W–1000W (with PoE PSU/Boost)ChassisBatteryAC AdapterInternal Power Supply (100–240 VAC auto-ranging)Motherboard SupportExpansion Slots4x NIM slots, 1x SM slot, 1x Onboard ISC slotDimms per ChannelSocketProcessorMulticore Processor ArchitectureProcessors Installed1Processor SpeedSpeedN/AProcessor Max Speed (Turbo Boost)CPU BrandCisco (Proprietary Data Plane Engine + Control Processor)Processor CoresNumber of ThreadsHyper ThreadingCache Per ProcessorProcessor Main FeaturesCPU InstalledCompatible RAMFSBCPU CacheCPU Cooling SystemCPU Cooling System BrandCPU Cooling System DetailsNumber of FansN/AFan ModelFan SupportFan SpeedFan AirflowFan NoiseMemory (RAM)Memory SizeRAM DetailsRAM TypeRAM TypeRAM SpeedRam SpeedMaximum RAMRAM BrandRAM/RankRankModule TypeModule QTYECC/FFSpeed & ECCRAM Installed1.8" Drive Bays2.5" Drive Bays3.5" Drive BaysM.2 SlotsStorageHDDHDD InstalledSSDN/ASSD InstalledN/AStorage TypeStorage CapacityHard Disk Rotational SpeedRead SpeedStorage CacheSector SizeHard Drive TraysDrive BlanksIn trayGraphics CardGraphics CoprocessorGraphics Card BrandGraphics Card SeriesGraphics Card MemoryGraphics Card Memory TypeGraphics Card Clock SpeedGraphics Card Boost Clock SpeedGraphics Card CUDA CoresGraphics Card Memory Bus WidthGraphics Card InterfaceGraphics Card Video OutputsPower ConnectorsIEC C14GPU InstalledCacheTransfer RatePower SupplyInternalPSU TypeAC, DC, or PoEPSU BrandCiscoPSU QTY2PSU Form FactorInternal Plug-in ModulePSU FeaturesHot-swappable, Redundant options, PoE supportPSU Installed2x PWR-4430-AC (400W AC)Operating SystemCisco IOS XESoftwareSoftware FeaturesCOABattery InstalledBluetooth InstalledCabling InstalledCamera InstalledMedia Drive InstalledHeatsinks InstalledRAID ControllerRaid InstalledNetwork ControllerIntegrated Multicore Data Plane ProcessorRail KitBezelOptical DriveSpecial FeaturesPackage ContentsOnboard GPUBluetoothWifi InstalledWLANLAN SpeedCase MaterialColorsDrive BaysMaximum CPUsMax CPU'sNumber of Memory SlotsDIMM SlotsMemory ChannelsI/O SlotsPorts4 x GE (Onboard), 1 x Console, 1 x Aux, 2 x USBFront USBFront Audio PortsRear USBRear Audio PortsVideo PortsRJ45Power ConsumptionKeyboardMouseMonitorNot IncludedRefresh RateScreen SizeEars IncludedYesFeature SetsIP Base (Security, UC, AppX Licenses Optional)Fixed Uplinks4 x 10/100/1000 Onboard PortsTotal 10/100/1000 Ethernet Ports4Available PoE Power0WSwitching CapacityN/A (Router throughput-based platform)Stacking BandwidthN/ATotal number of MAC addressesN/ATotal number of IPv4 routes800,000 - 1,000,000+ (DRAM dependent)FNF entriesSupportedDRAM4 GBFlash8 GBVLAN IDs4094Total switched virtual interfaces (SVIs)N/A (Router - uses routed subinterfaces)Jumbo frame9216 BytesTotal routed ports per stackN/ANumber of access points per switch/stackN/ANumber of wireless clients per switchN/ATotal number of WLANs per switchN/AWireless bandwidth per switchN/ASupported Aironet access point seriesN/AForwarding Rate500 Mbps to 1 Gbps AggregateHSEC Appx Secruity9 License'sECC/FFScalabilityCountry of OriginPCSP SKUNSB 433194 Extended Warranty for this listing:Click Here Our other items:Click Here Product Description

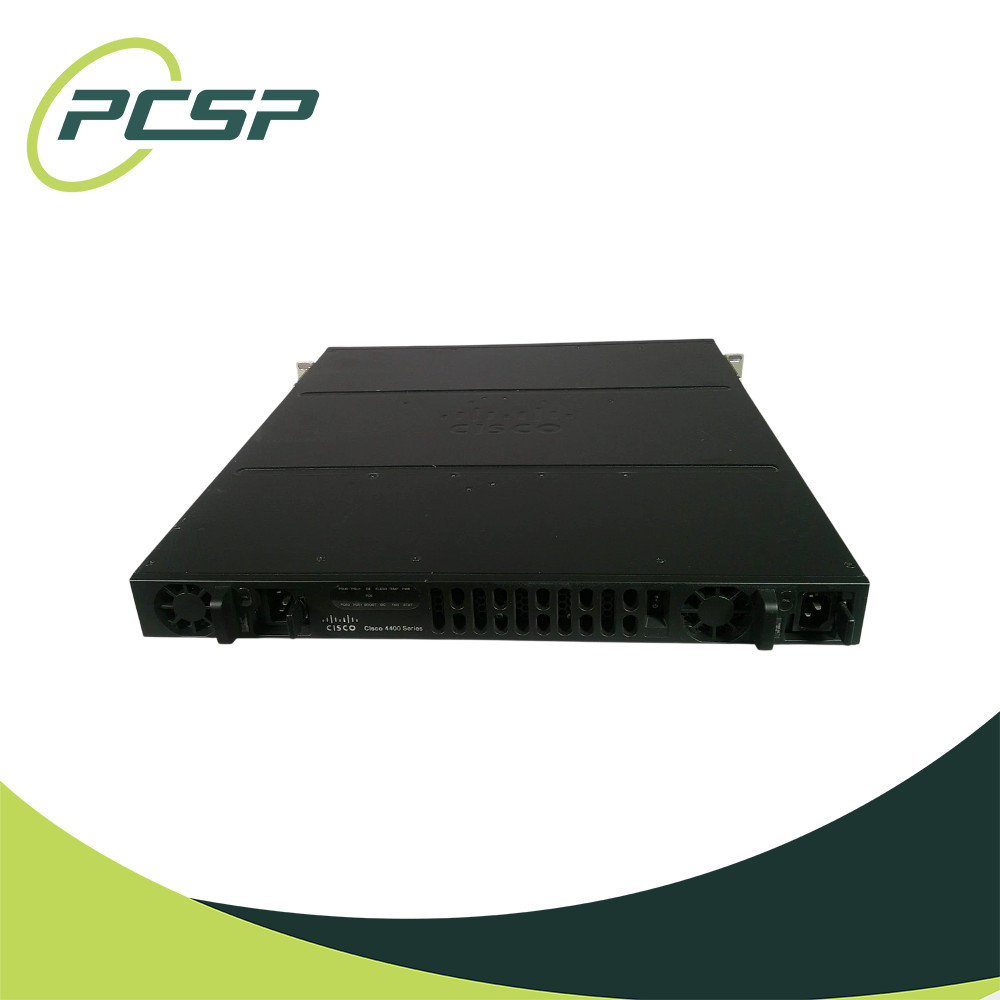

Cisco ISR4431/K9 Integrated Services Router w/ Dual 400W PSU, HSEC, APPX, SecurityK9 & Rack Ears

The Cisco ISR4431/K9 is a modular 1U enterprise Integrated Services Router designed for branch networking, WAN connectivity, VPN, security, application services, and advanced routing deployments.

This configuration includes two Cisco PWR-4430-AC 400W AC power supplies for redundant power, rack mounting ears, and HSEC-K9, APPXK9, and SecurityK9 license functionality as specified for this unit.

The ISR4431 provides four onboard logical Gigabit Ethernet interfaces, three Network Interface Module slots, one Integrated Services Card slot, and Cisco IOS XE software architecture. The platform provides 500Mbps aggregate throughput at the base performance level and can be upgraded to 1Gbps with the appropriate Cisco Performance license.

Manufacturer: Cisco

Series: Cisco 4000 Series ISR

Model: ISR4431/K9

Product Type: Integrated Services Router

Onboard Ethernet: 4x Logical Gigabit Ethernet

Base Aggregate Throughput: 500Mbps

Performance Upgrade: Up to 1Gbps with FL-44-PERF-K9

Control-Plane DRAM: 4GB Default

Data-Plane DRAM: 2GB Default

Flash: 8GB Default

Power Supplies: 2x PWR-4430-AC 400W AC

Power Configuration: Redundant

License Features: HSEC-K9, APPXK9, SecurityK9

Operating System: Cisco IOS XE

Form Factor: 1U Rackmount

Rack Ears: Included

Key Features

Cisco ISR4431/K9 enterprise Integrated Services Router
4x onboard logical Gigabit Ethernet interfaces
500Mbps base aggregate throughput
Upgradeable to 1Gbps with FL-44-PERF-K9 Performance license
3x Network Interface Module slots
1x Integrated Services Card slot
Dedicated Gigabit Ethernet management interface
4GB default control-plane DRAM
2GB default data-plane DRAM
8GB default flash memory
HSEC-K9 high-security cryptographic functionality
APPXK9 Application Experience functionality
SecurityK9 security technology package
2x PWR-4430-AC 400W AC power supplies installed
Both power supply positions populated for redundant power
Cisco IOS XE operating system
1U rackmount chassis
Rack ears included

Network Interfaces

4x logical onboard Gigabit Ethernet interfaces
RJ45 / SFP dual-media architecture on supported interfaces
RJ45 and SFP connectors associated with the same logical interface are alternate media options
1x dedicated Gigabit Ethernet management interface
SFP transceivers are not included unless specifically stated

Performance

Base aggregate system throughput: 500Mbps
Performance-on-Demand throughput: 1Gbps
FL-44-PERF-K9 is the Cisco Performance license used for the 1Gbps tier
HSEC-K9 does not by itself activate the 1Gbps Performance tier
Actual throughput depends on licensing, IOS XE release, enabled services, and traffic profile

SecurityK9

Cisco security technology package
IPsec VPN functionality
DMVPN and FlexVPN functionality with supported IOS XE software
Zone-Based Firewall capabilities
Secure VPN and cryptographic features
Required in conjunction with HSEC-K9 for full HSEC functionality

HSEC-K9

High Security cryptographic feature license
Works in conjunction with SecurityK9
Allows SecurityK9 features to use the platform's higher cryptographic and secure-tunnel capability
Separate from the router Performance license
Exact crypto limits depend on IOS XE release and Cisco licensing model

APPXK9

Application Experience technology package
MPLS functionality
Performance Routing / PfR
Layer 2 and Layer 3 VPN features
Broadband functionality
Application Visibility and Control features
Exact feature availability depends on IOS XE release

Memory & Storage

4GB default control-plane DRAM
2GB default data-plane DRAM
8GB default flash memory
Control-plane DRAM supports expansion up to 16GB
Flash supports expansion up to 32GB
Actual installed memory and flash should be verified from the individual unit

Expansion

3x Network Interface Module slots
1x Integrated Services Card slot
No SM-X Service Module slots on the ISR4431 platform
Supports compatible Cisco ISR 4000 Series NIM modules

Power Supplies

2x Cisco PWR-4430-AC 400W AC power supplies installed
Both internal power supply positions populated
Redundant AC power configuration
Loss of one compatible supply does not require removal of the second installed supply
Power cords are not included unless specifically stated

Rack Mounting

1U rackmount form factor
Rack mounting ears included
Designed for compatible 19-inch equipment racks
Sliding rack rails are not included
Rack cabinet is not included

Included

1x Cisco ISR4431/K9 Integrated Services Router
2x Cisco PWR-4430-AC 400W AC Power Supplies
1x Set of Rack Mount Ears
HSEC-K9 Functionality as Specified
APPXK9 Functionality as Specified
SecurityK9 Functionality as Specified

Important Notes

Photos are for reference only.
Only listed items are included.
The ISR4431 has a 500Mbps base aggregate throughput and requires FL-44-PERF-K9 for the 1Gbps Performance tier.
HSEC-K9 controls enhanced cryptographic capability and is separate from the system Performance license.
This configuration includes two AC power supplies for redundant power operation.
Rack ears are included; sliding rack rails are not included.
Verify compatibility before purchase.
