Cisco ISR4431/K9 ISR 1x NIM-2GE-CU-SFP 2x 400w PSU w/HSEC Appx Secruity9 License
Click Thumbnails to Enlarge Specifications Server TypeLot QuantityWarranty30 DaysBrandCiscoManufacturer Part 4000 Series Integrated Services RoutersModel NumberISR4431/K9Form Factor1U RackmountForm1UBracket SizeNetwork InterfaceEthernet (RJ-45), SFP (Combo)InterfaceEthernet, SFP, USB, Console (RJ-45 & Mini-USB), AuxWatts400WChassisBatteryAC AdapterInternal Power Supply (100–240 VAC auto-ranging)Motherboard SupportExpansion Slots4x NIM slots, 1x Onboard ISC slotDimms per ChannelSocketProcessorMulticore Processor ArchitectureProcessors Installed1Processor SpeedSpeed10/100/1000 Mbps EthernetProcessor Max Speed (Turbo Boost)CPU BrandCisco (Proprietary Data Plane Engine + Control Processor)Processor CoresNumber of ThreadsHyper ThreadingCache Per ProcessorProcessor Main FeaturesCPU InstalledCompatible RAMFSBCPU CacheCPU Cooling SystemCPU Cooling System BrandCPU Cooling System DetailsNumber of FansN/AFan ModelFan SupportFan SpeedFan AirflowFan NoiseMemory (RAM)Memory SizeRAM DetailsRAM TypeRAM TypeRAM SpeedRam SpeedMaximum RAMRAM BrandRAM/RankRankModule TypeModule QTYECC/FFSpeed & ECCRAM Installed1.8" Drive Bays2.5" Drive Bays3.5" Drive BaysM.2 SlotsStorageHDDHDD InstalledSSDN/ASSD InstalledN/AStorage TypeStorage CapacityHard Disk Rotational SpeedRead SpeedStorage CacheSector SizeHard Drive TraysDrive BlanksIn trayGraphics CardGraphics CoprocessorGraphics Card BrandGraphics Card SeriesGraphics Card MemoryGraphics Card Memory TypeGraphics Card Clock SpeedGraphics Card Boost Clock SpeedGraphics Card CUDA CoresGraphics Card Memory Bus WidthGraphics Card InterfaceGraphics Card Video OutputsPower ConnectorsIEC C14GPU InstalledCacheTransfer RatePower SupplyInternalPSU TypeAC, DC, or PoEPSU BrandCiscoPSU QTY2PSU Form FactorInternal Plug-in ModulePSU FeaturesHot-swappable, Redundant options, PoE supportPSU Installed2x PWR-4430-AC (400W AC)Operating SystemCisco IOS XESoftwareSoftware FeaturesCOABattery InstalledBluetooth InstalledCabling InstalledCamera InstalledMedia Drive InstalledHeatsinks InstalledRAID ControllerRaid InstalledNetwork ControllerIntegrated Multicore Data Plane ProcessorRail KitBezelOptical DriveSpecial FeaturesPackage ContentsOnboard GPUBluetoothWifi InstalledWLANLAN SpeedCase MaterialColorsDrive BaysMaximum CPUsMax CPU'sNumber of Memory SlotsDIMM SlotsMemory ChannelsI/O SlotsPorts4 x GE (Onboard), 1 x Console, 1 x Aux, 2 x USBFront USBFront Audio PortsRear USBRear Audio PortsVideo PortsRJ45Power ConsumptionKeyboardMouseMonitorNot IncludedRefresh RateScreen SizeEars IncludedYesFeature SetsIP Base (Security, UC, AppX Licenses Optional)Fixed Uplinks4 x 10/100/1000 Onboard PortsTotal 10/100/1000 Ethernet Ports6Available PoE Power0WSwitching CapacityN/A (Router throughput-based platform)Stacking BandwidthN/ATotal number of MAC addressesN/ATotal number of IPv4 routes800,000 - 1,000,000+ (DRAM dependent)FNF entriesSupportedDRAM4 GBFlash8 GBVLAN IDs4094Total switched virtual interfaces (SVIs)N/A (Router - uses routed subinterfaces)Jumbo frame9216 BytesTotal routed ports per stackN/ANumber of access points per switch/stackN/ANumber of wireless clients per switchN/ATotal number of WLANs per switchN/AWireless bandwidth per switchN/ASupported Aironet access point seriesN/AForwarding Rate500 Mbps to 1 Gbps AggregateECC/FFScalabilityCountry of OriginPCSP SKUNSB 443191 Extended Warranty for this listing:Click Here Our other items:Click Here Product Description

Cisco ISR4431/K9 Integrated Services Router w/ NIM-2GE-CU-SFP, Dual 400W PSU, HSEC, APPX & SecurityK9

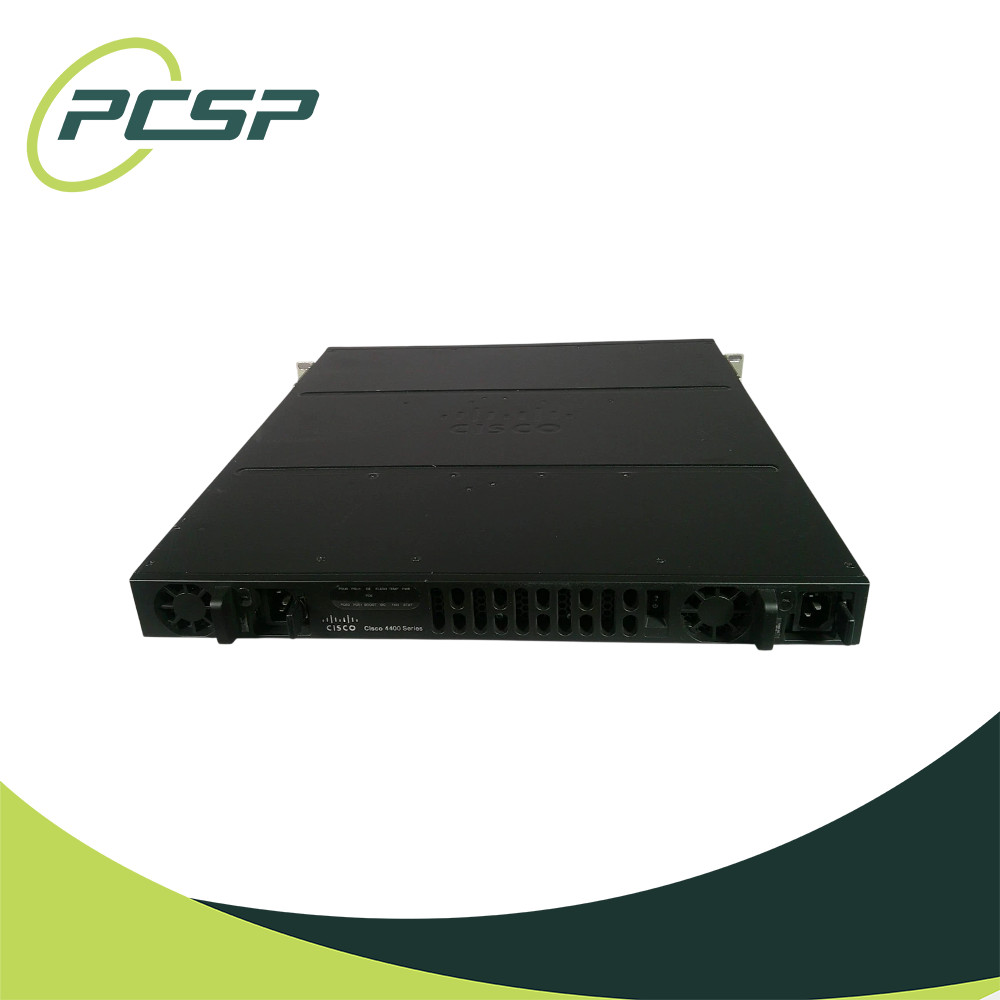

The Cisco ISR4431/K9 is a 1U modular enterprise Integrated Services Router designed for WAN connectivity, branch networking, VPN, security, application services, and advanced routing deployments.

This configuration includes one Cisco NIM-2GE-CU-SFP Network Interface Module, two 400W AC power supplies for redundant power, and HSEC-K9, APPXK9, and SecurityK9 license functionality as specified for this unit.

The ISR4431 provides four onboard logical Gigabit Ethernet interfaces. The installed NIM-2GE-CU-SFP adds two additional dual-mode Gigabit Ethernet interfaces capable of using copper RJ45 or compatible SFP media, providing six logical routed Gigabit Ethernet interfaces in this configuration.

Manufacturer: Cisco

Series: Cisco 4000 Series ISR

Model: ISR4431/K9

Product Type: Integrated Services Router

Onboard Ethernet: 4x Logical Gigabit Ethernet

Installed Module: 1x NIM-2GE-CU-SFP

NIM Interfaces: 2x Dual-Mode Gigabit Ethernet RJ45 / SFP

Total Logical Routed GE Interfaces: 6

Power Supplies: 2x 400W AC

Power Configuration: Redundant

Licenses: HSEC-K9, APPXK9, SecurityK9

Operating System: Cisco IOS XE

Form Factor: 1U Rackmount

Key Features

Cisco ISR4431/K9 enterprise Integrated Services Router
4x onboard logical Gigabit Ethernet interfaces
1x Cisco NIM-2GE-CU-SFP installed
2x additional dual-mode Gigabit Ethernet interfaces
Each NIM interface supports copper RJ45 or compatible SFP media
6 logical routed Gigabit Ethernet interfaces total
3x Network Interface Module slots
1x Integrated Services Card slot
HSEC-K9 high-security crypto functionality
APPXK9 Application Experience functionality
SecurityK9 security technology package
2x 400W AC power supplies installed
Redundant internal power configuration
Cisco IOS XE operating system
1U rackmount chassis

Network Interfaces

4x logical onboard Gigabit Ethernet interfaces
Dual-media RJ45 / SFP architecture on supported onboard interfaces
1x dedicated Gigabit Ethernet management interface
NIM-2GE-CU-SFP adds 2x logical Gigabit Ethernet interfaces
NIM ports support copper RJ45 or SFP media
RJ45 and SFP connections for the same logical interface are alternate media options and are not simultaneous additional ports

NIM-2GE-CU-SFP

2-port Gigabit Ethernet WAN Network Interface Module
2x logical Gigabit Ethernet interfaces
Dual-mode RJ45 / SFP connectivity
10/100/1000Mbps copper operation
1Gbps operation with compatible SFP transceivers
Layer 3 routed interface operation
256-bit MACsec support with compatible IOS XE software
Auto-switchover and auto-failover support with compatible IOS XE software
No Power over Ethernet support

HSEC-K9 License

High Security cryptographic feature license
Works with the SecurityK9 technology package
Enables expanded cryptographic throughput and secure tunnel capabilities
HSEC does not replace the separate router Performance license
Exact crypto limits depend on the installed IOS XE release and Cisco licensing model

SecurityK9

Advanced security technology package
IPsec VPN capabilities
DMVPN and FlexVPN functionality with supported software
Zone-Based Firewall features
Secure routing and VPN services
Required in conjunction with HSEC for full HSEC functionality

APPXK9 Application Experience

MPLS functionality
Performance Routing / PfR
Layer 2 VPN features
Layer 3 VPN features
Broadband features
Application Visibility and Control functionality
Exact feature availability depends on IOS XE release

Performance

Base aggregate throughput: 500Mbps
Upgradeable to 1Gbps aggregate throughput with the appropriate Cisco Performance license
The FL-44-PERF-K9 Performance license is separate from HSEC-K9
Do not assume 1Gbps Performance licensing solely because HSEC is installed

Memory & Storage

Default control-plane DRAM: 4GB
Default data-plane DRAM: 2GB
Default flash memory: 8GB
Control-plane DRAM upgradeable to 16GB
Flash memory upgradeable to 32GB
Actual installed memory should be verified from the unit

Expansion

3x NIM slots total
1x NIM slot occupied by NIM-2GE-CU-SFP
2x NIM slots remain available
1x Integrated Services Card slot
No SM-X Service Module slots on the ISR4431

Power Supplies

2x 400W AC power supplies installed
Both internal PSU positions populated
Redundant power configuration
100-240VAC compatible platform
Power cords are not included unless specifically stated

Management

Dedicated Gigabit Ethernet management interface
RJ45 serial console interface
USB console interface
2x USB Type-A interfaces
Cisco IOS XE software platform

Included

1x Cisco ISR4431/K9 Integrated Services Router
1x Cisco NIM-2GE-CU-SFP Network Interface Module
2x 400W AC Power Supplies
HSEC-K9 License Functionality as Specified
APPXK9 License Functionality as Specified
SecurityK9 License Functionality as Specified

Important Notes

Photos are for reference only.
Only listed items are included.
The NIM-2GE-CU-SFP provides two logical Ethernet interfaces, not four simultaneous RJ45/SFP interfaces.
SecurityK9 is the correct Cisco license name; it may appear in IOS XE as securityk9.
HSEC-K9 and the router Performance license are separate licenses.
HSEC-K9 does not by itself upgrade ISR4431 system throughput from 500Mbps to 1Gbps.
License state and entitlement behavior vary depending on IOS XE release and Cisco licensing model.
Verify compatibility before purchase.
