Description :

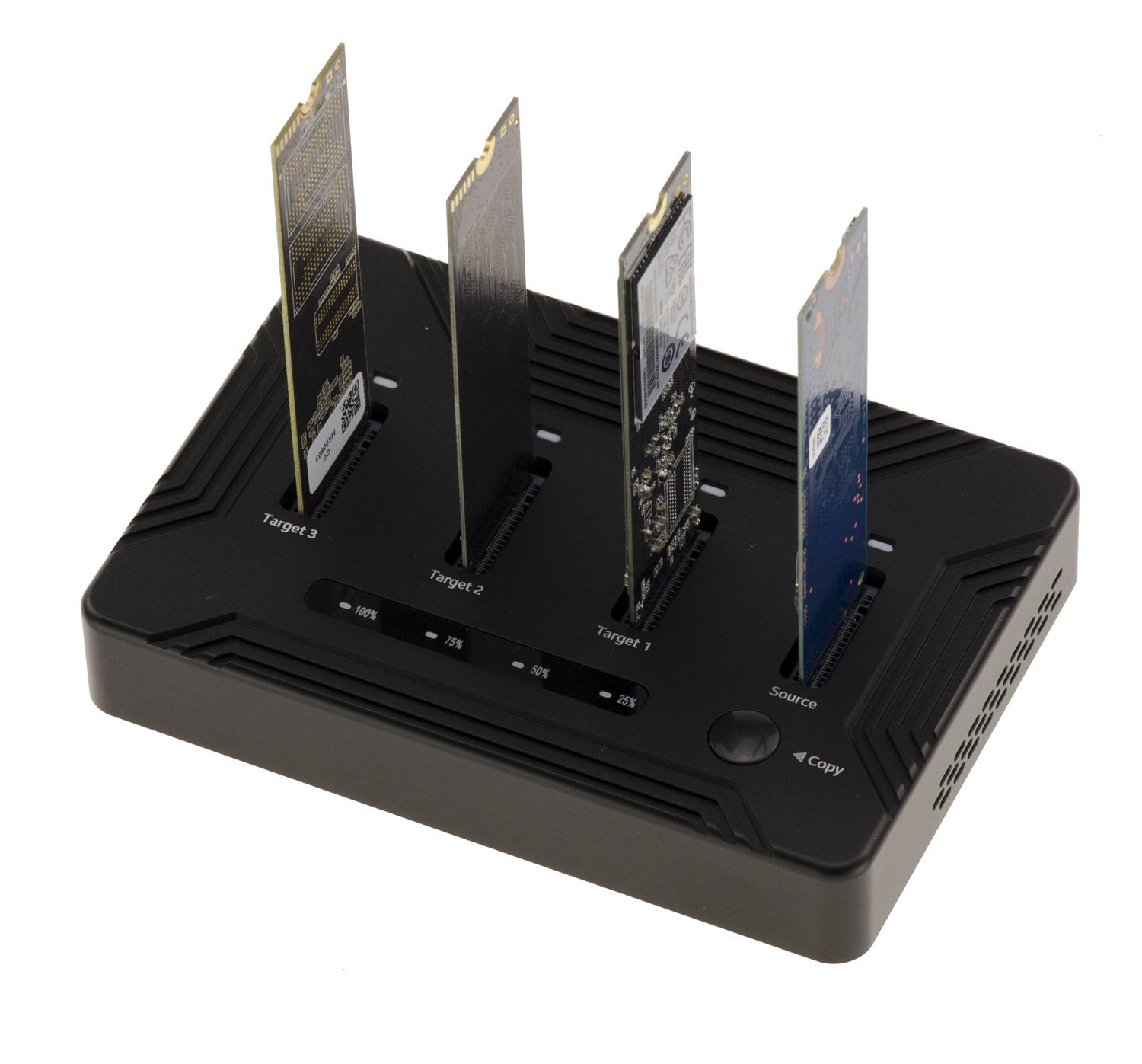

Dock for M2 NVMe Gen 3.0 and Gen 4.0 SSDs,
Support for all formats: 2230, 2242, 2260, 2280 and 22110 in M or B+M key.
Compatible only with NVMe SSDs, will not support "SATA" type M2s.
Supported capacity: 8TB per SSD, or 32TB in total.
Thunderbolt USB4 40G link, 40G high speed cord included. Type "C" plug, with C/A adapter provided (but 10G max speed in USB A).
Please note, for maximum throughput, you must optimize the performance of USB4 (Windows 11 10.0.22000 and above or Mac OS beyond 13.4), and use Gen 4.0 SSDs.
Dimensions: 122x85x21mm, weight 245g (dock only).
Powered by external power supply supplied 12V 4A.
Function 1, access to SSD data:
Connected to a PC, this dock will allow access to the content of the four M2 SSDs to read or modify the content.
Maximum throughput for 4 SSDs at the same time: 40GB in USB4 or Thunderbolt.
Maximum throughput for 1 SSD: 16GB in USB 3.2 Gen 2x2, USB 4 or Thunderbolt.
Function 2, cloning from one SSD to another:
Offline, that is to say not connected to a PC but only connected to a power supply, this dock will allow you to clone the contents of one SSD to the 3 others.
Indication of cloning progress by 4 diodes (25%, 50%, 75%, 100%).
Compatible with Windows, Mac, Linux...
