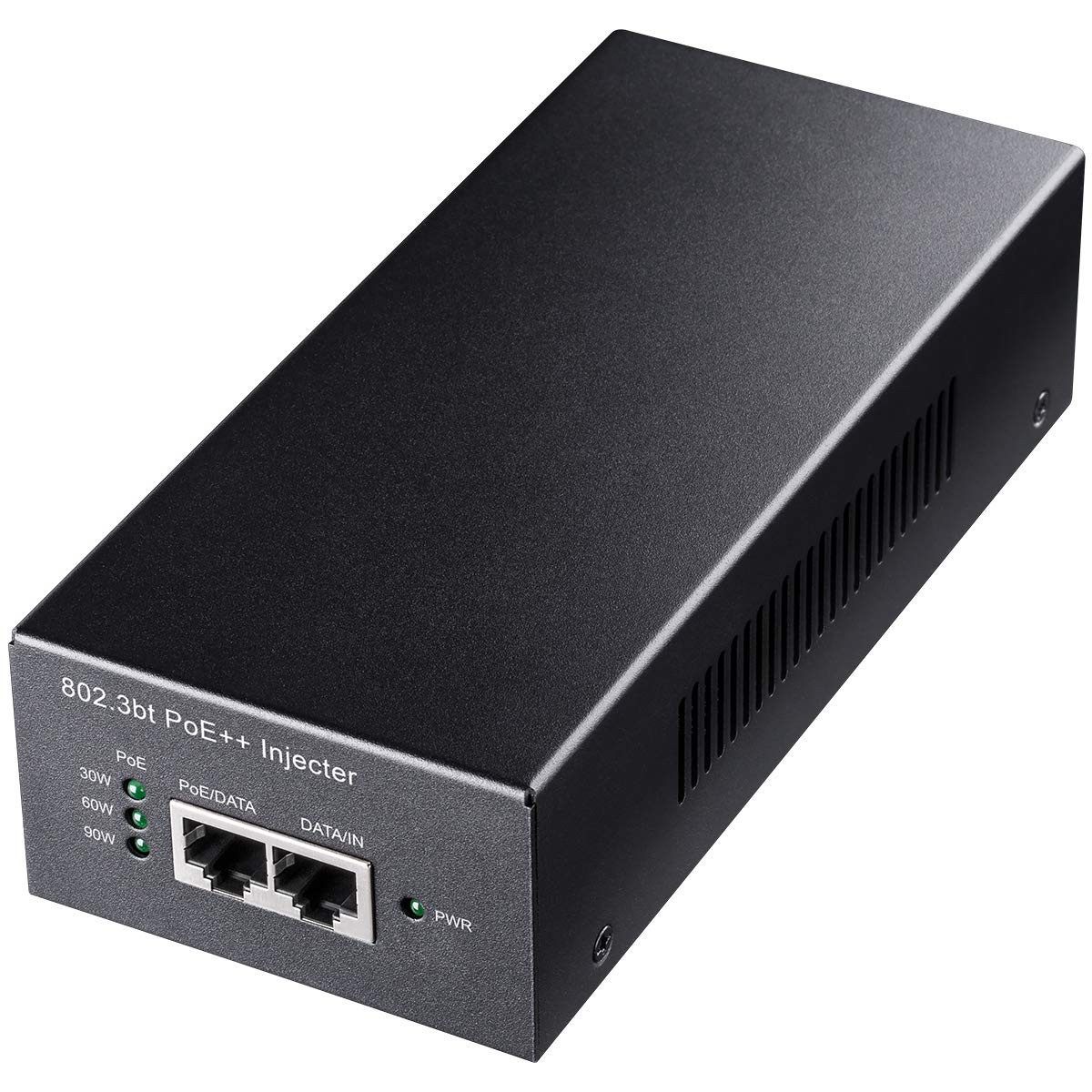

Cudy POE400 90W Gigabit Ultra PoE++ Injector Adapter, IEEE 802.3 bt /802.3at/...

Price: US $112.76

Cudy POE400 90W Gigabit Ultra PoE++ Injector Adapter, IEEE 802.3 bt /802.3at/802.3af Compliant, Up to 90W Ultra Power Supply, 10/100/1000Mbps Shielded RJ-45, Plug & Play, Metal housing

Gigabit PoE Injector, 1 Gigabit Ethernet port input and 1 PoE / PoE+ / PoE++ Gigabit Ethernet port output offer full duplex 2Gbps Ethernet speeds. Ideal for small installations of PoE IP phone, PoE surveillance camera or PoE wireless access point.
With Auto-sensing technology, this PoE adapter delivers up to 90W to a PoE++ device with backwards compatibility for 802.3bt/at 4 pair (60w), 802.3at 2 pair (30w) PoE+ device and 802.3af PoE (15.4W) devices.
Converts a non-PoE Gigabit port to a PoE / PoE+ / PoE++ Gigabit port and network a PoE device located up to 100 meters (328 ft.) away.
High Quality Chipset Inside. Use TPS high quality POE chip to ensure stable operation of the product. Plug & play, no configuration is needed, simply connect a PoE network device, accommodates most installations scenarios.
Compact Gigabit PoE injector, IEEE 802.3bt/802.3af/802.3at compliant. Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5(+), 7/8(-).

The PoE++ Injector is a single port PoE injector offer a compact solution, it can convert standard 100~240V/AC power into low voltage DC that runs over existing LAN cable to power up IEEE802.3 bt/ af / at compliant network accessories.

Model: POE400

Data Rate:10/100/1000Mbps

Connectors: Shielded RJ-45, EIA568A and 568B

Dimension: 178.5mm x 80mm x 46mm

Power over Ethernet Output :

- Pin Assignment and Polarity: 1/2 (-), 3/6 (+),4/5(+), 7/8(-)

- Output Power Voltage: 56VDC

- IEEE 802.3af (15.4W)

- IEEE 802.3at (30W)

- IEEE 802.3at 4 pair (60W)

- IEEE802.3bt (90W)

Input Power Requirements:

- AC Input Voltage: 100 to 240 VAC

- AC Input Current: 1A 100-240 VAC

- AC Frequency: 50 to 60 Hz

Indicators:

- System Indicator: AC Power

- User Indicator: 30W / 60W / 90W

Protection:

- Over current protection

- Over load protection

- Over voltage protection

- Anti-interference protection

Environmental Conditions:

- Operating Ambient Temperature: 0 to 40°C

- Operating Humidity: Maximum 85%, Non-condensing

- Storage Temperature:-20 to 70°C
